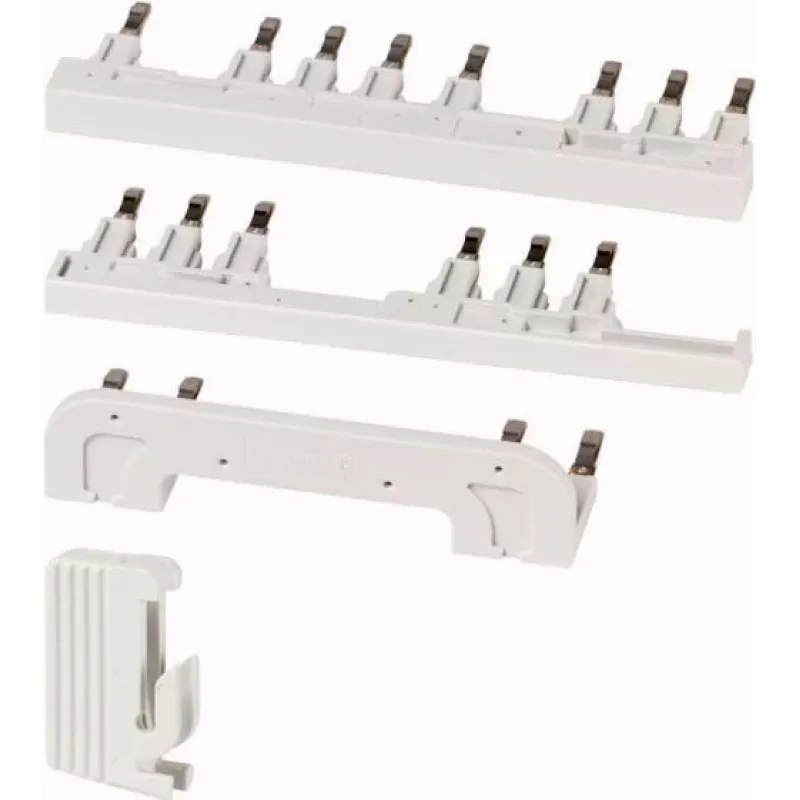

Eaton DILM12-XRL Juego de cableado de inversión para contactores DILM 7-12 283108

Create reversing contactor combinations quickly with this pre-assembled wiring kit for Eaton DILM 7, 9, and 12 contactors. Designed for direct connection between two contactors, it facilitates electrical interlocking for reversing motor control in industrial automation.

Overview

The Eaton DILM12-XRL is a reversing wiring kit specifically engineered for use with Eaton Moeller DILM series contactors, sizes 7 through 12. It provides a compact, space-saving solution for building reversing contactor pairs without the need for custom wiring. The kit includes insulated conductors and housing, ensuring safe and reliable operation in industrial control panels and motor starters.

What stands out

• Pre-assembled for quick and easy installation
• Direct connection between two contactors for reversing applications
• Compatible with DILM 7, DILM 9, and DILM 12 contactors
• Compact design saves space in control panels
• Facilitates electrical interlocking for safe reversing operation

Technical details

• Accessory Type: Reversing Wiring Kit
• Compatible Contactor Series: Eaton DILM
• Compatible Contactor Sizes: DILM 7, DILM 9, DILM 12
• Function: For creating reversing contactor combinations
• Mounting Type: Direct connection between two contactors
• Application: Reversing motor control, industrial automation
• Manufacturer Product Line: Moeller (Eaton)
• Component Category: Contactor Accessory
• Installation: Pre-assembled for quick and easy installation
• Interlocking: Facilitates electrical interlocking for reversing applications
• Material: Insulated conductors and housing
• Design: Compact, space-saving
• Usage Environment: Industrial control panels, motor starters
• Number of Contactor Pairs Supported: 1

Our verdict

A reliable and efficient solution for reversing contactor applications, this kit simplifies installation and ensures safe operation in industrial settings.
