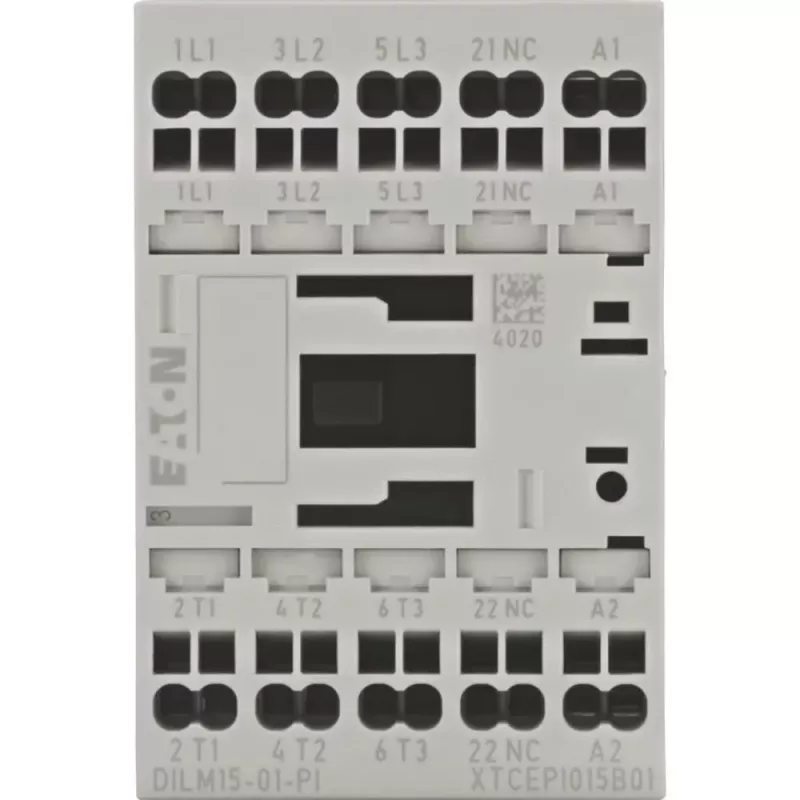

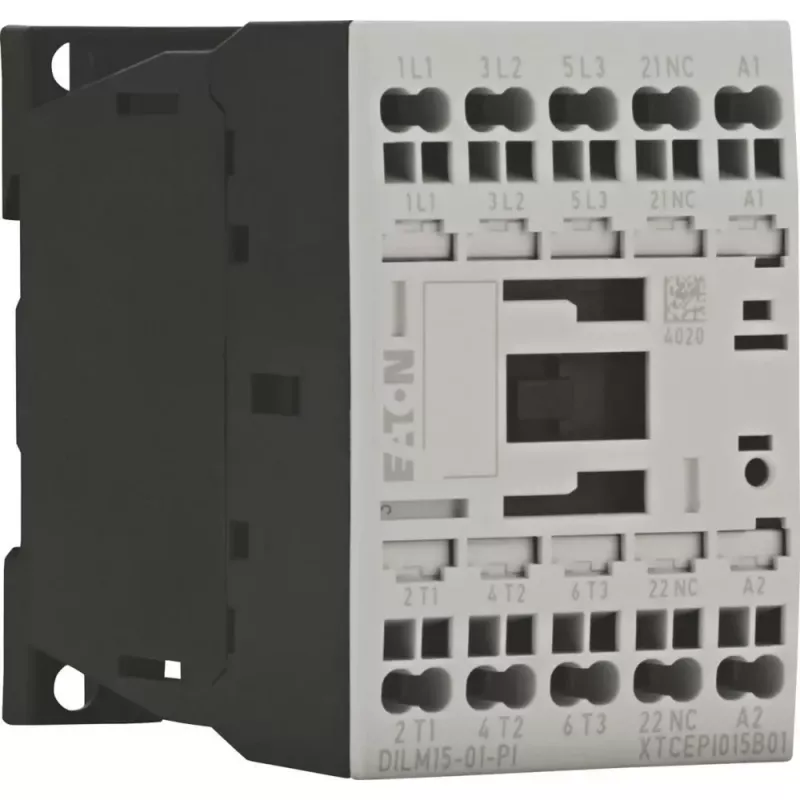

EATON DILM15-01(230V50HZ,240V60HZ)-PI contactor de potencia 199254

Industrial electricians and panel builders use the EATON DILM15-01(230V50HZ,240V60HZ)-PI power contactor to switch three-phase motors up to 7.5 kW at 400 V in control cabinets and machine installations. The coil accepts 230 V at 50 Hz or 240 V at 60 Hz, and the device mounts on a DIN rail or with screws.

Key specifications

• Rated operational current AC-3 (400 V): 15 A
• Rated operational current AC-1 (400 V): 32 A
• Rated operational power AC-3 (400 V): 7.5 kW
• Coil voltage: 230 V AC 50 Hz / 240 V AC 60 Hz
• Number of poles: 3
• Integrated auxiliary contacts: 1 NO + 1 NC
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Mechanical durability: 10 million operations
• Electrical durability (AC-3, 400 V, 7.5 kW): 1.5 million operations
• Operating temperature: -25 °C to +60 °C
• Mounting: DIN rail or screw
• Terminals: screw

Why choose it

The DILM15-01 combines a compact footprint with high switching capacity and long mechanical life. The integrated auxiliary contacts simplify control circuit wiring, and the dual-frequency coil rating covers both 50 Hz and 60 Hz supplies without derating.

Ideal use cases

• Motor starting and stopping in industrial machines
• Heating and lighting load switching
• Control panel and distribution board installations

Good to know

This contactor is part of the Eaton Moeller series and fits standard 35 mm DIN rails. Screw terminals accept solid or stranded conductors. The device is rated for use in ambient temperatures from -25 °C to +60 °C.
