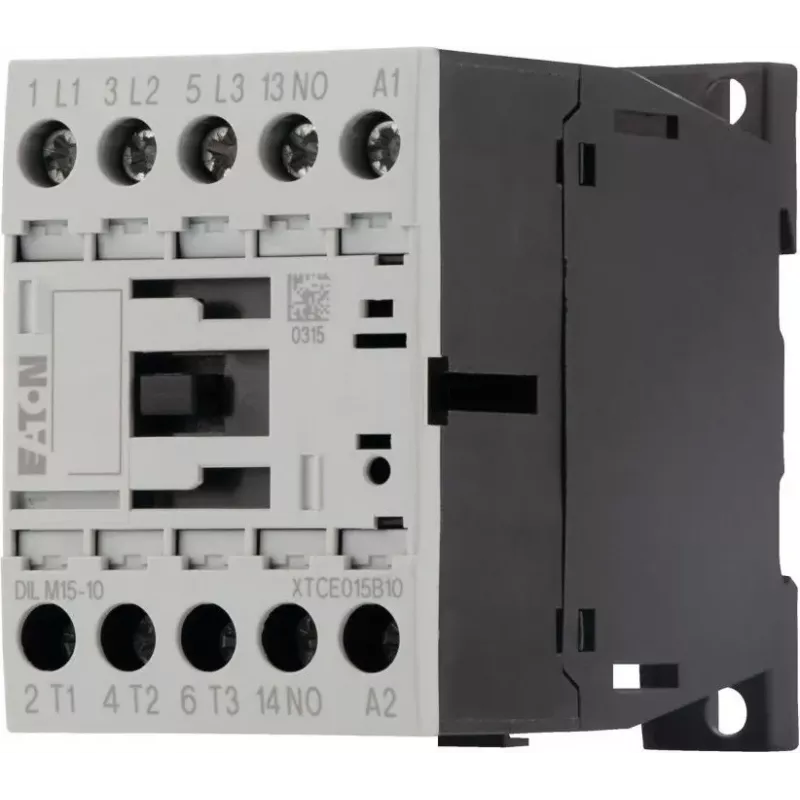

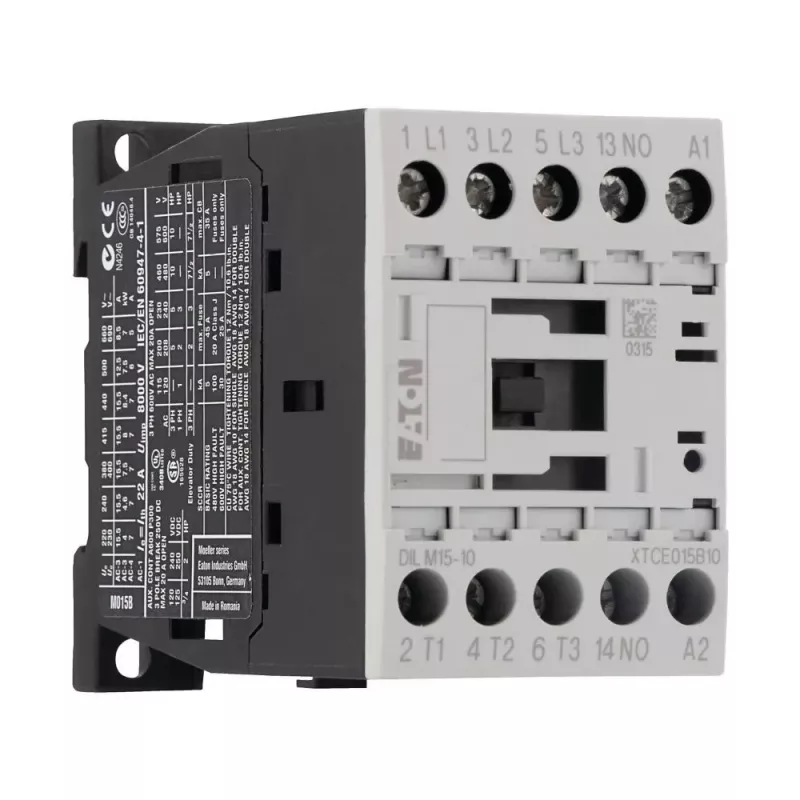

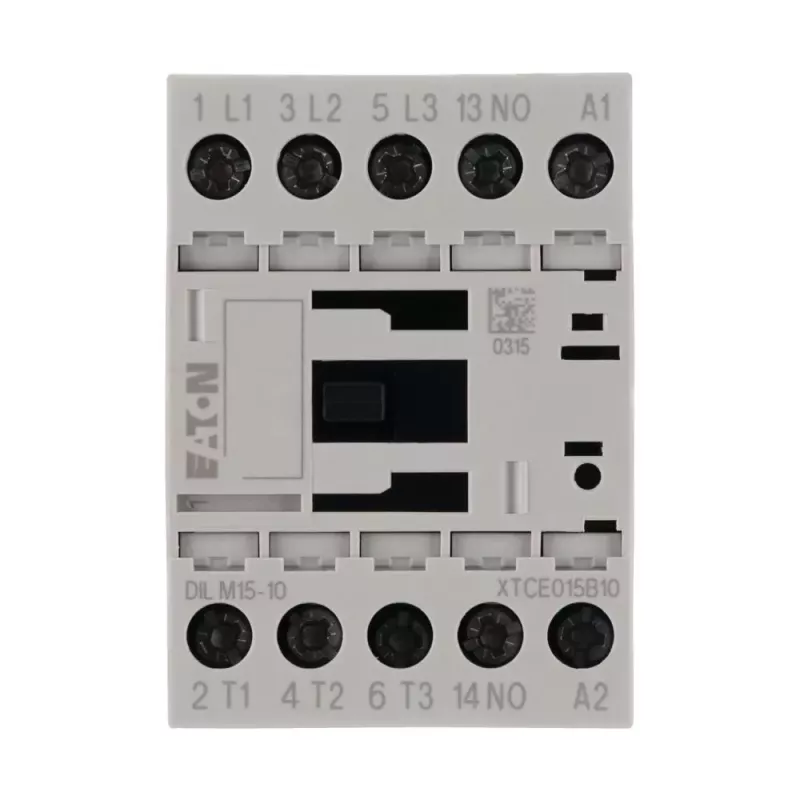

Eaton DILM15-10 24 V DC contactor de potencia, 3 polos, 15 A, 7,5 kW, 1 contacto auxiliar NA

With a rated operational current of 15 A at AC-3 (400 V) and a switching capacity of 7.5 kW, the Eaton DILM15-10 power contactor is a robust solution for motor control and industrial switching applications. Its 24 V DC coil ensures reliable operation in control circuits, while the compact DILM15 frame size fits easily into standard enclosures.

Overview

The Eaton DILM15-10 is a 3-pole power contactor designed for demanding AC-3 duty. It features one normally open auxiliary contact for status feedback or interlocking. With screw terminals and DIN rail or screw mounting, installation is straightforward. The contactor meets IEC/EN 60947, VDE 0660, UL, and CSA standards, ensuring global compliance.

What stands out

• High electrical durability: 1.5 million operations at AC-3
• Wide operating temperature range from -25 °C to +60 °C
• Rated insulation voltage of 690 V for versatile use
• IP20 protection for safe operation in control panels
• Compact design saves space in electrical cabinets

Technical details

• Number of poles: 3
• Auxiliary contacts: 1 NO
• Coil voltage: 24 V DC
• Rated operational current (AC-3, 400 V): 15 A
• Rated operational power (AC-3, 400 V): 7.5 kW
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-1, 690 V): 22 A
• Mounting: DIN rail, screw mounting
• Protection degree: IP20
• Operating temperature: -25 to +60 °C
• Electrical life (AC-3): 1.5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations
• Terminal type: Screw terminals
• Standards: IEC/EN 60947, VDE 0660, UL, CSA

Our verdict

The Eaton DILM15-10 combines proven performance with compact dimensions. Its 24 V DC coil and robust construction make it an excellent choice for motor starters, HVAC systems, and industrial automation. With high mechanical and electrical life, it ensures long-term reliability in demanding environments.
