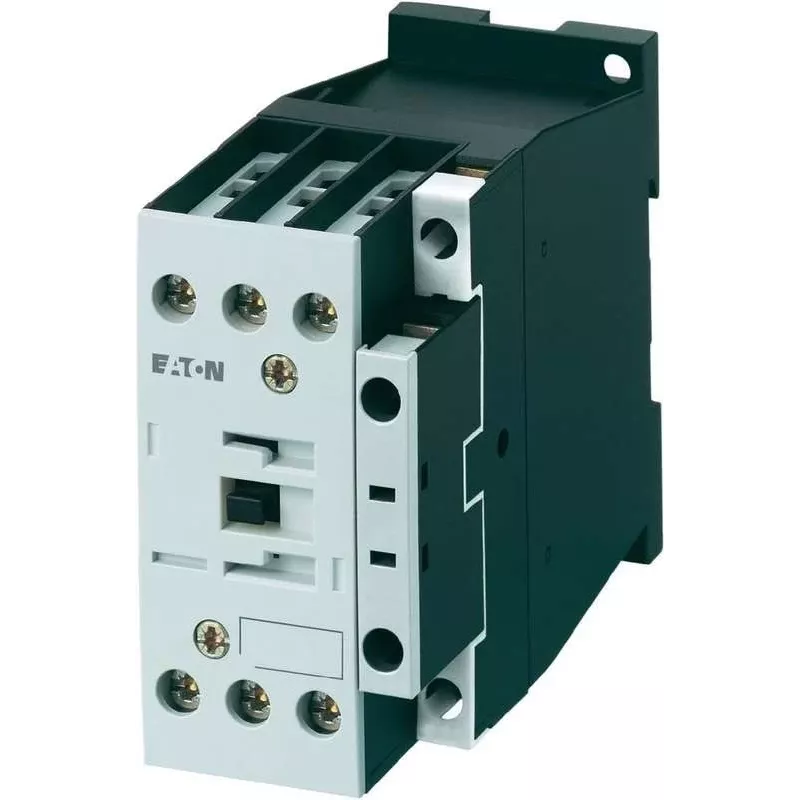

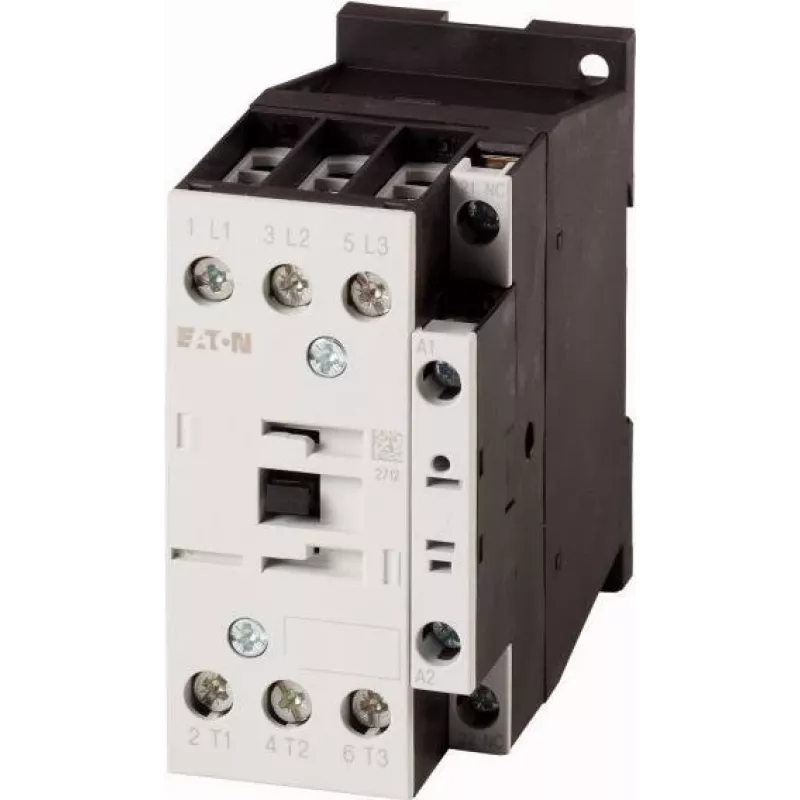

Eaton DILM17-01(RDC24) contactor de potencia, 3 polos, 17 A AC-3, bobina 24 V DC, 1 NC 277050

The Eaton DILM17-01(RDC24) power contactor delivers reliable switching of three-phase motors up to 7.5 kW at 400 V AC-3. Its 24 V DC coil and one normally closed auxiliary contact make it a practical choice for industrial control circuits.

Advantages

Rated for 17 A at AC-3, this contactor handles frequent motor starts with an electrical life of 1.5 million operations. Screw terminals on both main and control circuits ensure secure, maintenance-friendly connections. The compact frame (56 mm width) saves space in control panels, while DIN rail or screw mounting offers installation flexibility.

Suitable for

• Motor starting and stopping in industrial machinery
• Heating and lighting loads up to 32 A AC-1
• Control circuits requiring a 24 V DC coil and one NC auxiliary contact
• Installations with ambient temperatures from -25 to +60 °C

Key specifications

• Rated operational current: 17 A (AC-3, 400 V), 32 A (AC-1, 400 V)
• Rated operational power: 7.5 kW (AC-3, 400 V)
• Coil voltage: 24 V DC
• Auxiliary contacts: 1 NC
• Number of poles: 3
• Mounting: DIN rail or screw
• IP protection rating: IP00
• Mechanical life: 10 million operations
• Standards: IEC/EN 60947, VDE 0660, UL, CSA

Recommendations

For reliable motor control in demanding environments, pair this contactor with an appropriate thermal overload relay. Ensure adequate enclosure protection, as the contactor itself is rated IP00 and must be installed in a suitable panel.
