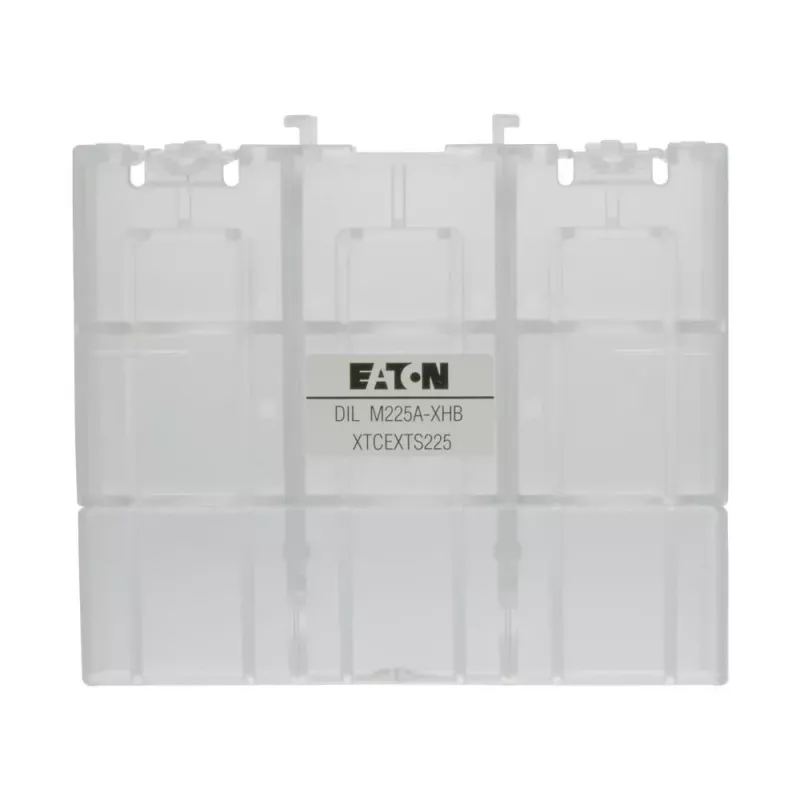

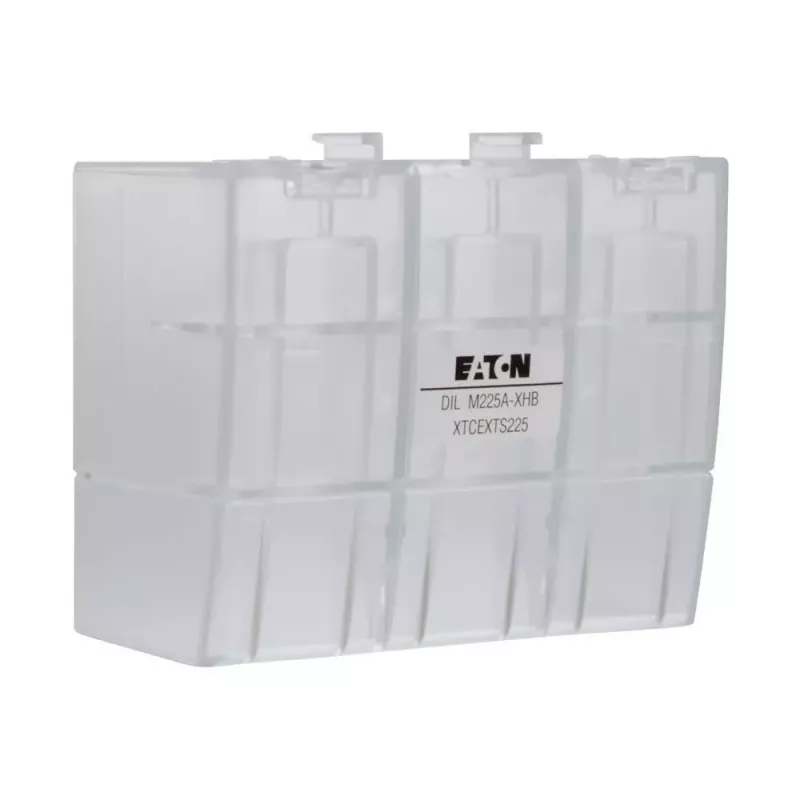

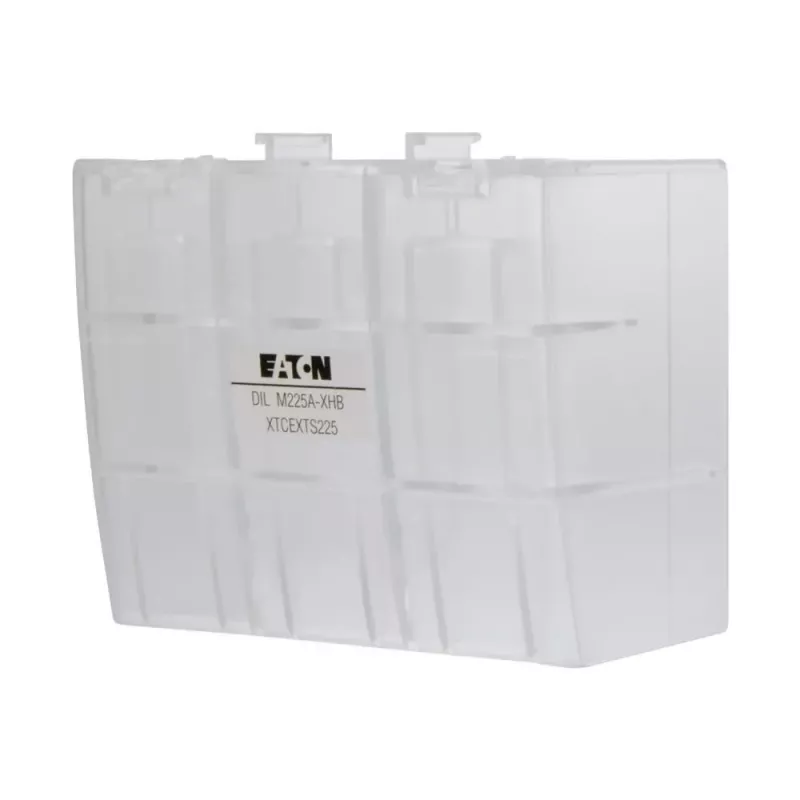

Eaton DILM225A-XHB contacto auxiliar 4 polos 2NO+2NC bornes de tornillo montaje frontal para contactores DILM185-DILM225 139560

The Eaton DILM225A-XHB auxiliary contact block brings four switching elements to DILM185 through DILM225 contactors, doubling the signal capacity of standard two-contact blocks. Its 2NO+2NC configuration supports interlocking, status feedback, and control circuits in a single front-mount unit.

Highlights

• 4-pole auxiliary contact block: 2 normally open + 2 normally closed
• Front mounting for quick installation on compatible Eaton contactors
• Screw terminals accept solid or stranded conductors
• Rated insulation voltage 690 V AC
• Impulse withstand voltage 6 kV
• Operational current 4 A at AC-15 (230/400 V), 1 A at DC-13 (24 V)
• Operating temperature range -25 to +60 °C

In daily use

This auxiliary contact block expands the control possibilities of Eaton DILM185 to DILM225 contactors. The four contacts can be used for signaling contactor state, interlocking, or controlling small loads. Front mounting means the block can be added or replaced without removing the contactor from the panel. Screw terminals provide secure connections in industrial environments.

Full specifications

• Contact configuration: 2 NO + 2 NC
• Number of poles: 4
• Mounting type: Front mounting
• Terminal type: Screw terminals
• Compatibility: Eaton DILM185 to DILM225 contactors
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (AC-15, 400 V): 4 A
• Rated operational current (DC-13, 24 V): 1 A
• Degree of protection: IP20
• Standards compliance: IEC/EN 60947-5-1
• Operating temperature range: -25 to +60 °C
• Product series: DILM-XHB
• Function: Auxiliary contact

Final note

The DILM225A-XHB is a direct-fit auxiliary contact solution for Eaton's larger DILM contactors, providing four independent switching elements in one compact module.
