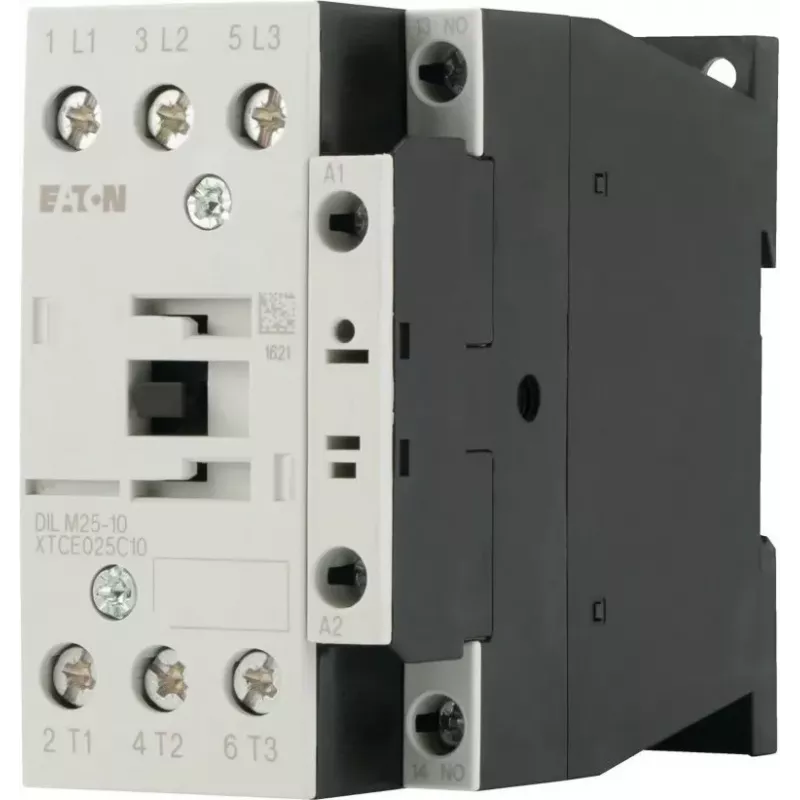

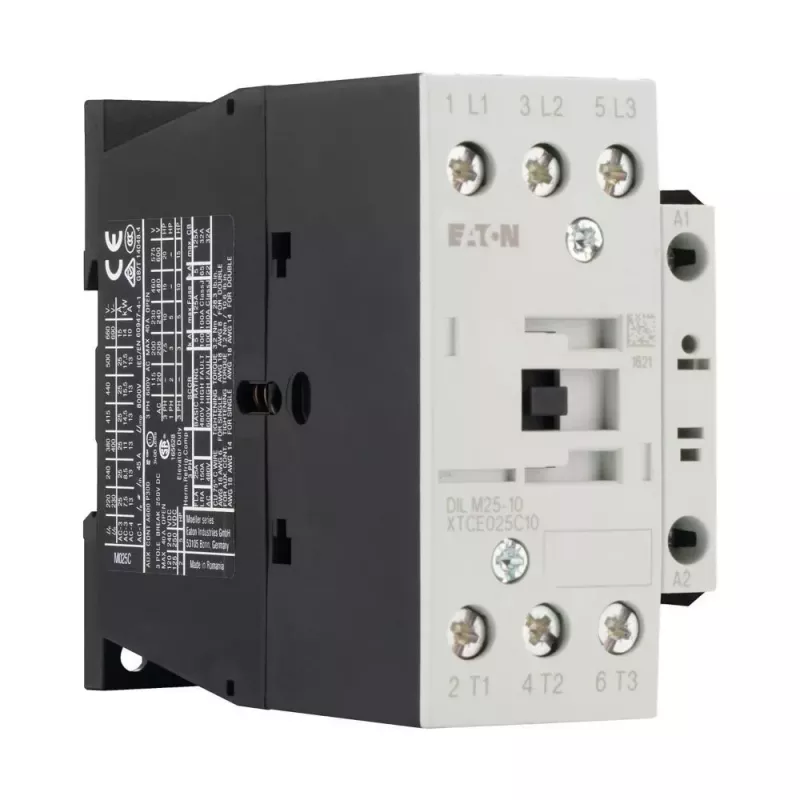

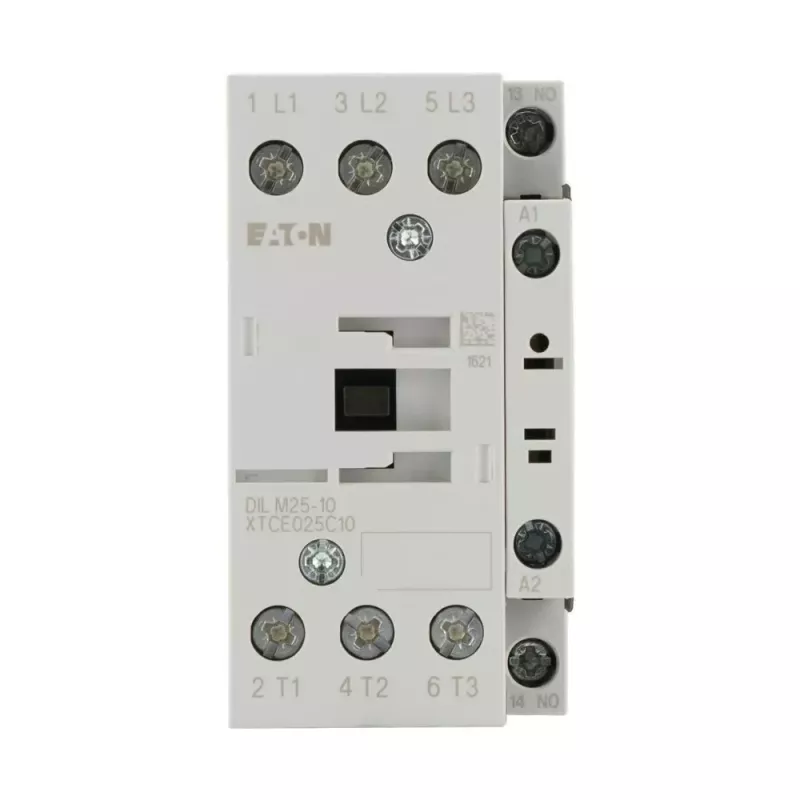

EATON DILM25-10 Contactor de potencia 3 polos 1NO 25A 11kW 230V AC 50Hz / 240V AC 60Hz

The EATON DILM25-10 stands out in the DILM series for its compact frame and dependable switching of 11 kW loads at 400 V AC-3, all while offering a dual-frequency coil that adapts to both 50 Hz and 60 Hz networks. Unlike many contactors in its class, it combines a 3-pole main circuit with a built-in 1NO auxiliary contact, reducing the need for add-on modules in basic control schemes. Its screw terminals and DIN rail or screw mounting make it a straightforward drop-in for panel builders and maintenance teams alike.

Highlights

• 3-pole power contactor with 1NO auxiliary contact, rated 25 A at AC-3 (400 V) and 45 A at AC-1
• Dual-rated coil: 230 V 50 Hz / 240 V 60 Hz for flexible use across regional power systems
• Handles motors up to 11 kW at 400 V AC-3, with operational voltage up to 690 V AC
• High mechanical life of 10 million operations and electrical life of 1.5 million operations (AC-3)
• Compact DILM25 frame with IP20 protection, suitable for standard industrial enclosures

In daily use

Installed on a DIN rail or screwed to a backplate, the DILM25-10 delivers consistent switching for conveyors, pumps, fans and other three-phase loads. The screw terminals accept solid or stranded conductors without special tools, and the clearly marked coil terminals simplify wiring. The auxiliary contact provides a reliable status signal for PLC inputs or indicator lamps. With a wide operating temperature range from -25 °C to +60 °C, it performs reliably in demanding environments. The coil's dual frequency rating means one stock item covers both 50 Hz and 60 Hz installations, reducing inventory complexity.

Full specifications

• Brand: EATON
• Model: DILM25-10
• MPN: 277132
• EAN: 4015082771324
• Contactor type: Power contactor
• Number of main poles: 3
• Auxiliary contacts: 1 NO
• Coil voltage: 230 V AC at 50 Hz, 240 V AC at 60 Hz
• Rated operational current (AC-3, 400 V): 25 A
• Rated operational current (AC-1, 400 V): 45 A
• Rated power (AC-3, 400 V): 11 kW
• Rated operational voltage (Ue): Up to 690 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting: DIN rail or screw mounting
• Terminal type: Screw terminals
• Degree of protection: IP20
• Operating temperature range: -25 °C to +60 °C
• Electrical life (AC-3): 1.5 million operations
• Mechanical life: 10 million operations
• Standards: IEC/EN 60947
• Frame size: DILM25

Final note

The EATON DILM25-10 is a proven workhorse for industrial motor control, offering the right balance of performance, durability and ease of installation. Its dual-frequency coil and integrated auxiliary contact make it a versatile choice for both new panels and retrofits.
