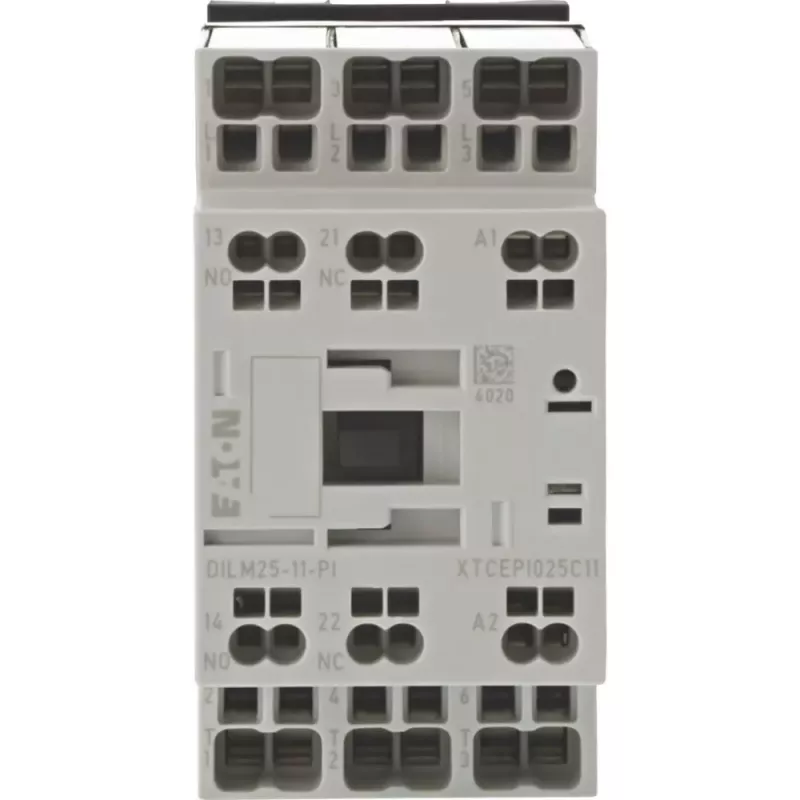

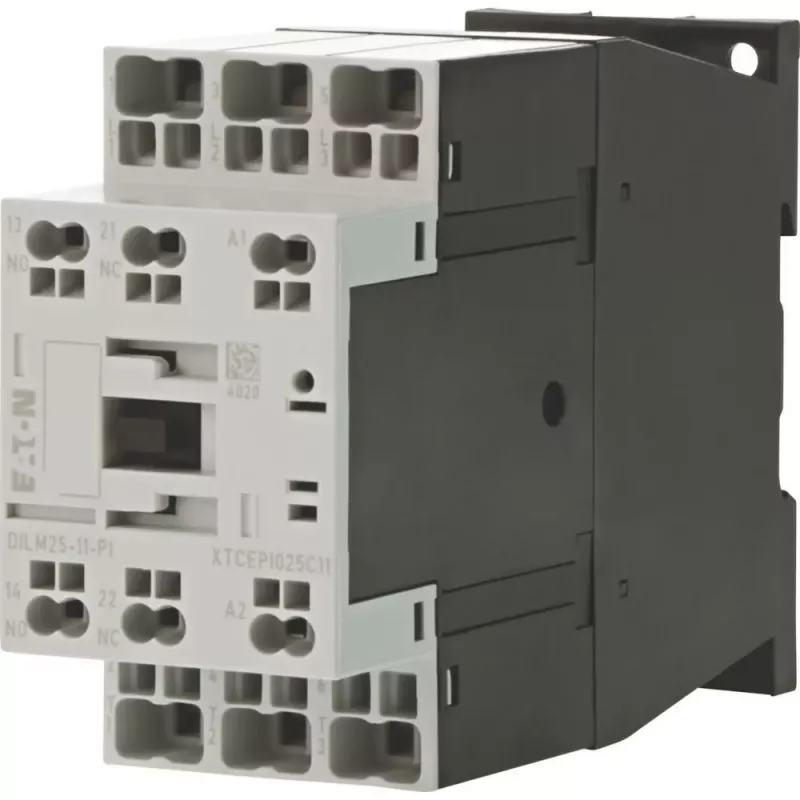

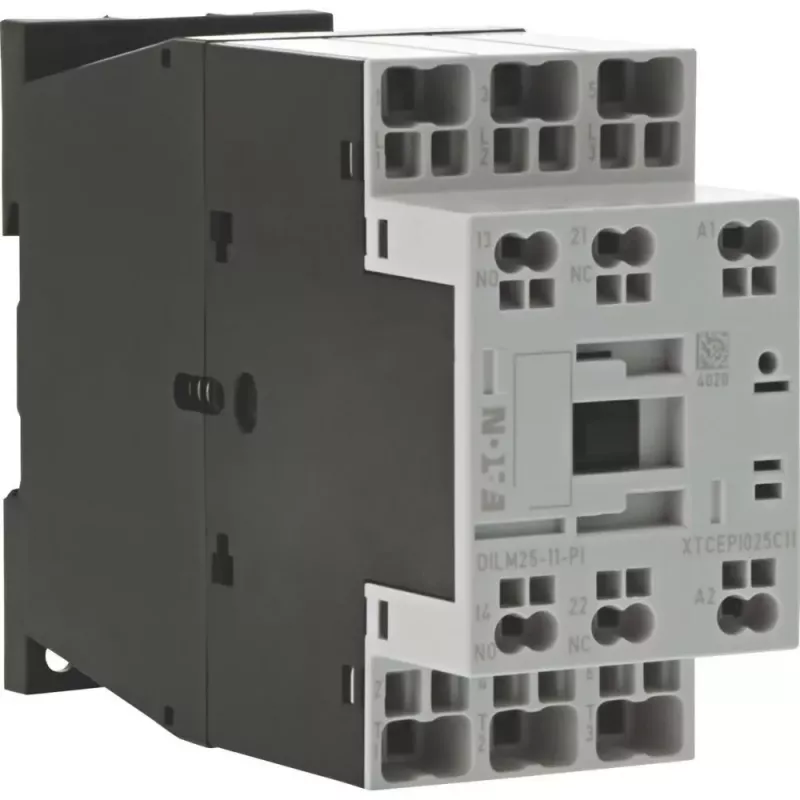

EATON DILM25-11 230V 50Hz contactor de potencia tripolar, 25A AC-3 400V, 11kW, 1NO+1NC 199284

With a rated operational current of 25 A at AC-3, 400 V, this 3-pole power contactor handles motor loads up to 11 kW, making it a robust choice for industrial switching tasks.

Overview

The EATON DILM25-11 is a 3-pole power contactor with a 230 V AC, 50 Hz coil. It features one normally open and one normally closed auxiliary contact, providing flexible control circuit integration. Designed for DIN rail or screw mounting, it suits a wide range of motor control applications.

What stands out

• High electrical durability: 1.5 million operations at AC-3
• Rated insulation voltage up to 690 V for safe operation in higher-voltage systems
• Wide ambient temperature range from -25 °C to +60 °C
• Compact design with screw terminals for secure connections

Technical details

• Rated operational current (AC-3, 400 V): 25 A
• Rated operational power (AC-3, 400 V): 11 kW
• Rated operational current (AC-1, 400 V): 45 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Number of poles: 3
• Auxiliary contacts: 1 NO + 1 NC
• Coil voltage: 230 V AC, 50 Hz
• Mounting: DIN rail / screw
• Degree of protection: IP20 (terminals)
• Ambient operating temperature: -25 to +60 °C
• Main and control circuit connection: screw terminals
• Standards: IEC/EN 60947, VDE 0660, UL, CSA

Our verdict

A reliable and durable contactor for standard motor control, with clear technical specifications and flexible mounting options.
