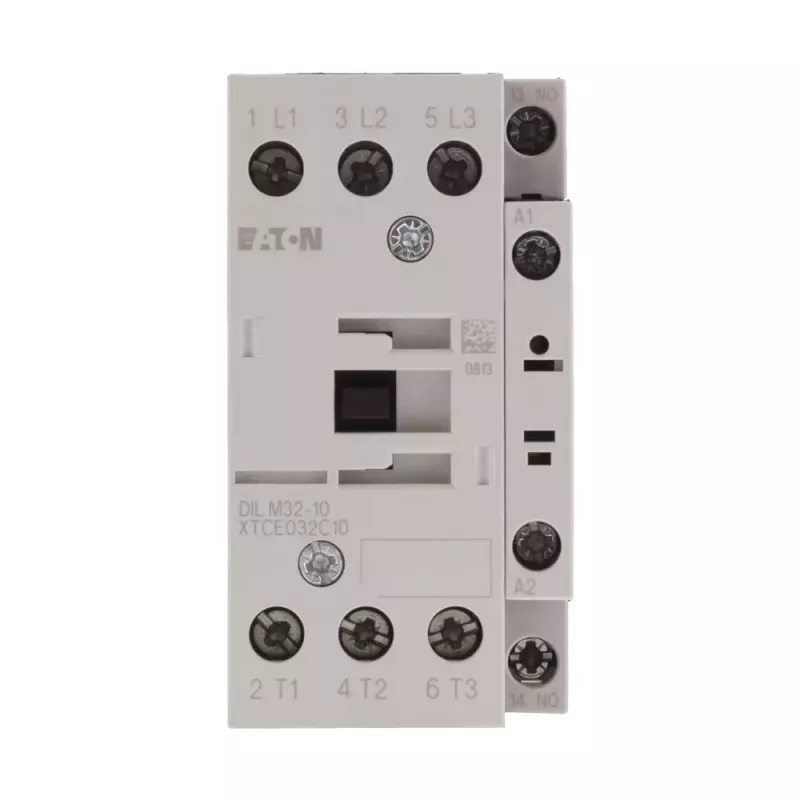

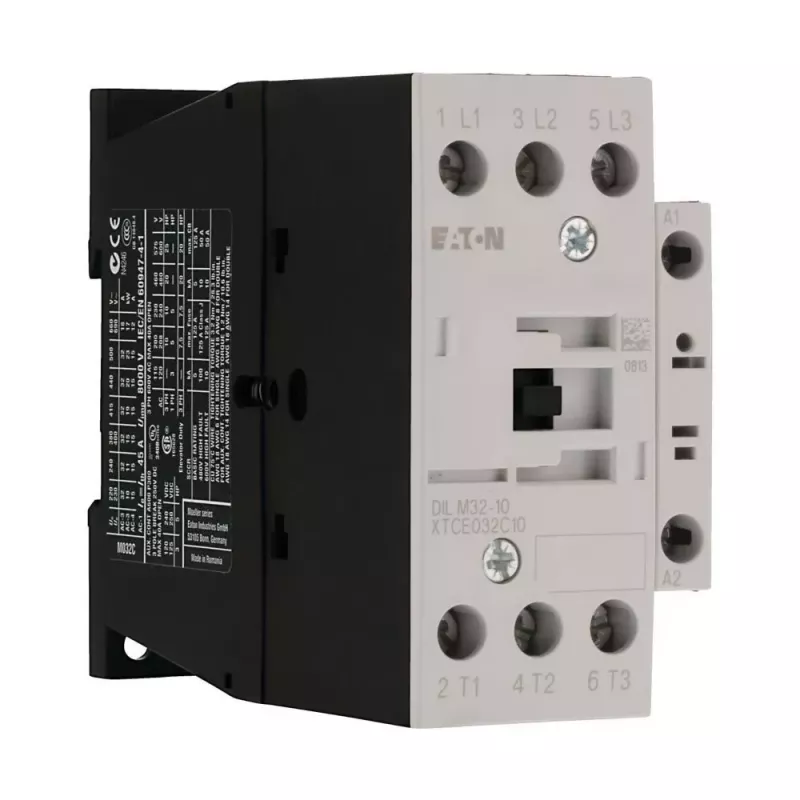

Eaton DILM32-10 24V 50Hz contactor 3 polos, 32A, 1NO+1NC, bornes de tornillo, carril DIN 277247

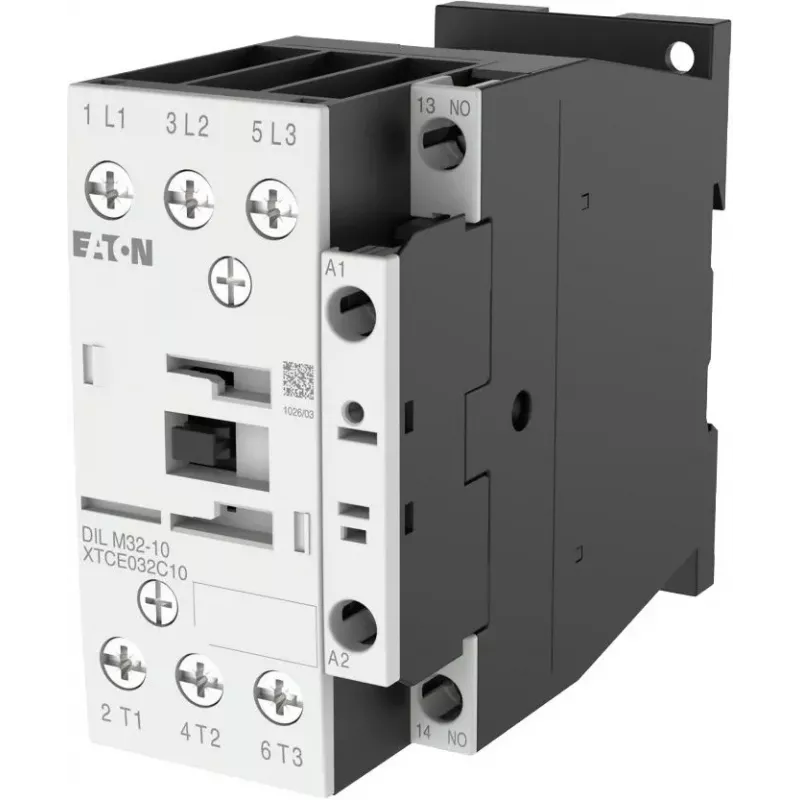

The Eaton DILM32-10 is a 3-pole contactor rated for 32 A operational current at AC-3, 400 V, making it suitable for switching motors up to 15 kW. It features a 24 V AC 50 Hz coil and provides one normally open and one normally closed auxiliary contact. The contactor supports screw terminals and mounts on DIN rail or with screws.

Advantages

With a mechanical life of 10 million operations and electrical durability of 1.5 million operations at AC-3, this contactor ensures long-term reliability in demanding industrial environments. Its compact design and IP00 protection allow for integration into control panels and enclosures.

Suitable for

• Motor starting and control in industrial machinery
• Heating, lighting, and ventilation systems
• Automation and process control applications

Key specifications

• Rated operational current: 32 A (AC-3, 400 V), 45 A (AC-1, 400 V)
• Control coil voltage: 24 V AC, 50 Hz
• Number of poles: 3
• Auxiliary contacts: 1 NO + 1 NC
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Degree of protection: IP00
• Mounting: DIN rail or screw
• Terminal type: screw
• Operating temperature: -25 to +60 °C

Recommendations

Install this contactor in an appropriate enclosure to protect against dust and accidental contact. Ensure coil voltage matches the control circuit. For frequent switching, consider derating based on load type and ambient temperature.
