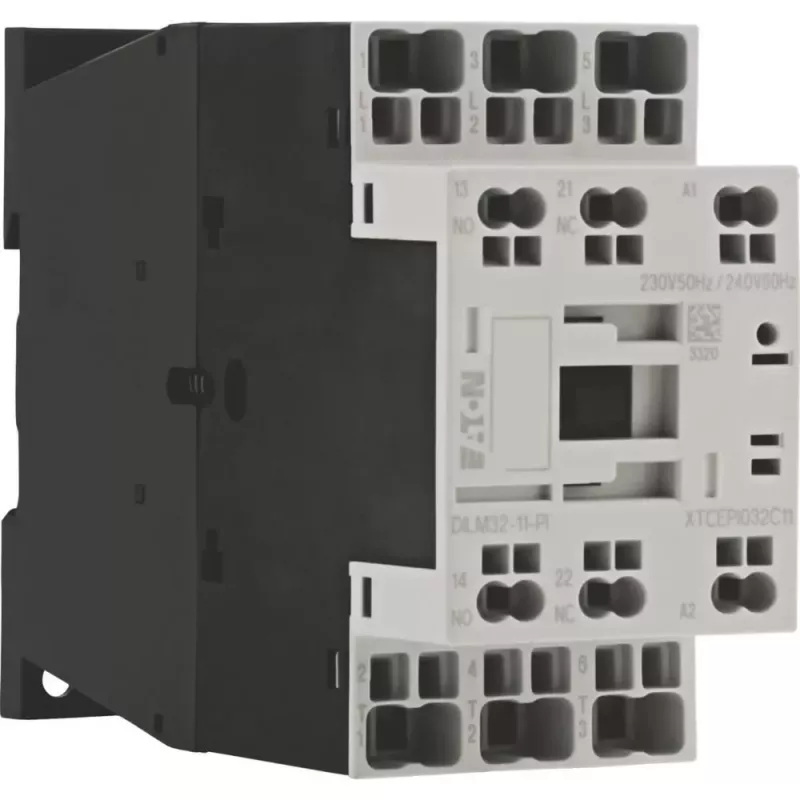

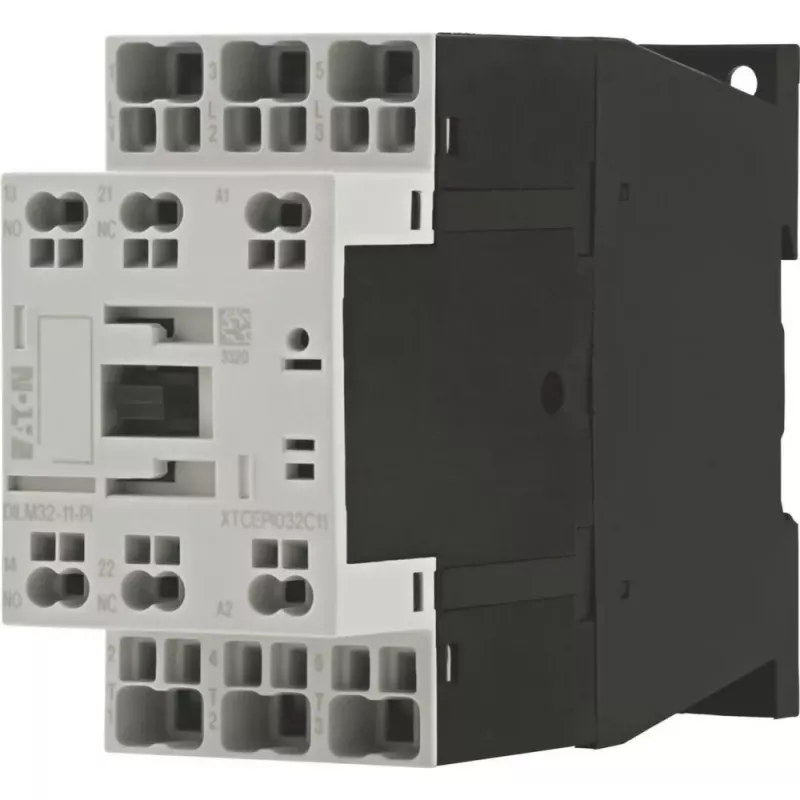

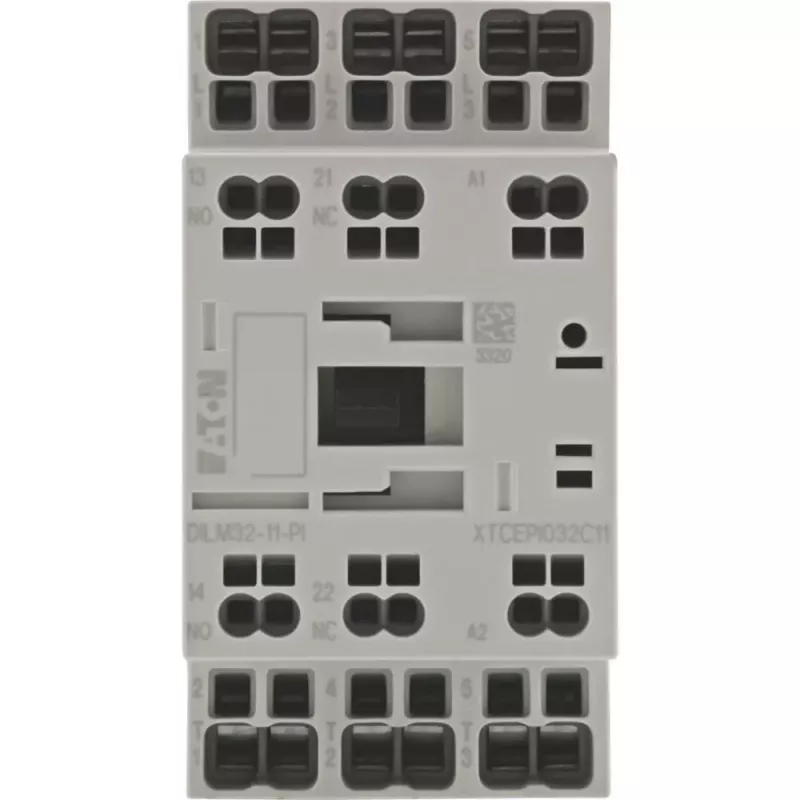

Eaton DILM32-11 contactor de potencia, tripolar, 32 A, bobina 230/240 V AC, 1NO+1NC contacto auxiliar 199289

The Eaton DILM32-11 power contactor delivers a rated operational current of 32 A (AC-3, 400 V) and 50 A (AC-1, 400 V), making it a robust switching solution for industrial motor control and power distribution. With a 3-pole main contact configuration (3 NO) and an integrated 1NO+1NC auxiliary contact block, it offers flexible control and feedback options. The coil accepts 230 V AC at 50 Hz or 240 V AC at 60 Hz, ensuring compatibility with common industrial control voltages.

Overview

Part of the Eaton DILM series, this contactor is engineered for reliable performance in demanding environments. It features screw terminals for secure wiring, DIN rail or screw mounting for easy installation, and an IP20 protection degree for use in enclosed panels. The rated insulation voltage of 690 V and impulse withstand voltage of 6 kV provide excellent electrical isolation and surge resilience.

What stands out

• High electrical durability: 1.5 million operations (AC-3)
• Wide operating temperature range: -25 °C to +60 °C
• Compact design with integrated auxiliary contacts
• Compatible with 230 V / 240 V AC control circuits

Technical details

• Number of poles: 3
• Main contacts: 3 NO
• Auxiliary contacts: 1 NO + 1 NC
• Rated operational current (AC-3, 400 V): 32 A
• Rated operational current (AC-1, 400 V): 50 A
• Coil voltage: 230 V AC (50 Hz), 240 V AC (60 Hz)
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational voltage (Ue): 690 V
• Mounting: DIN rail / screw
• Protection degree: IP20
• Terminal type: screw terminals
• Electrical life (AC-3): 1.5 x 10^6 operations

Our verdict

The Eaton DILM32-11 is a dependable choice for switching motors and resistive loads up to 32 A, with the added convenience of built-in auxiliary contacts for control logic.
