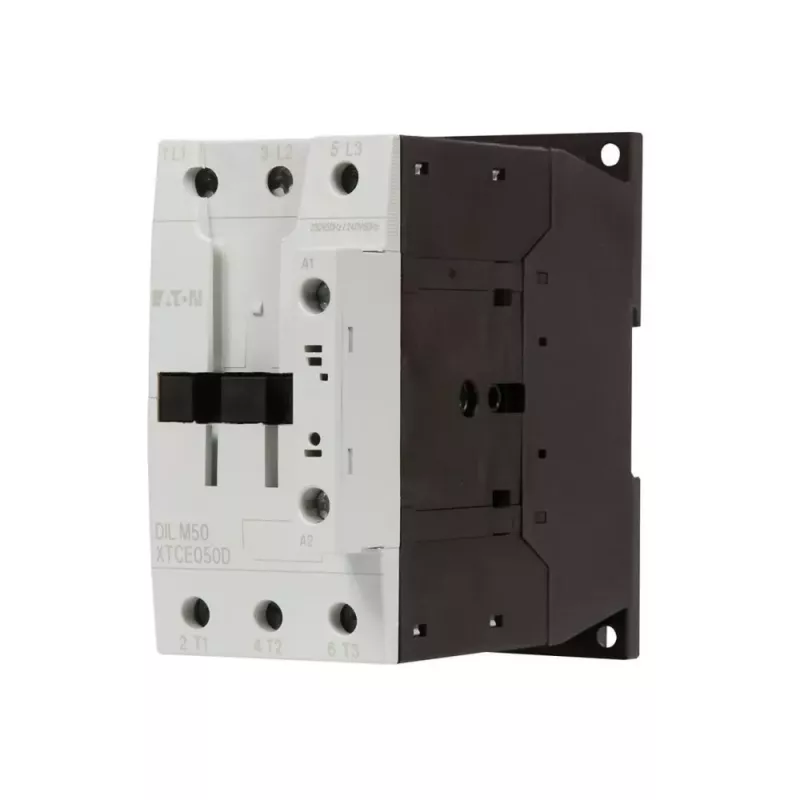

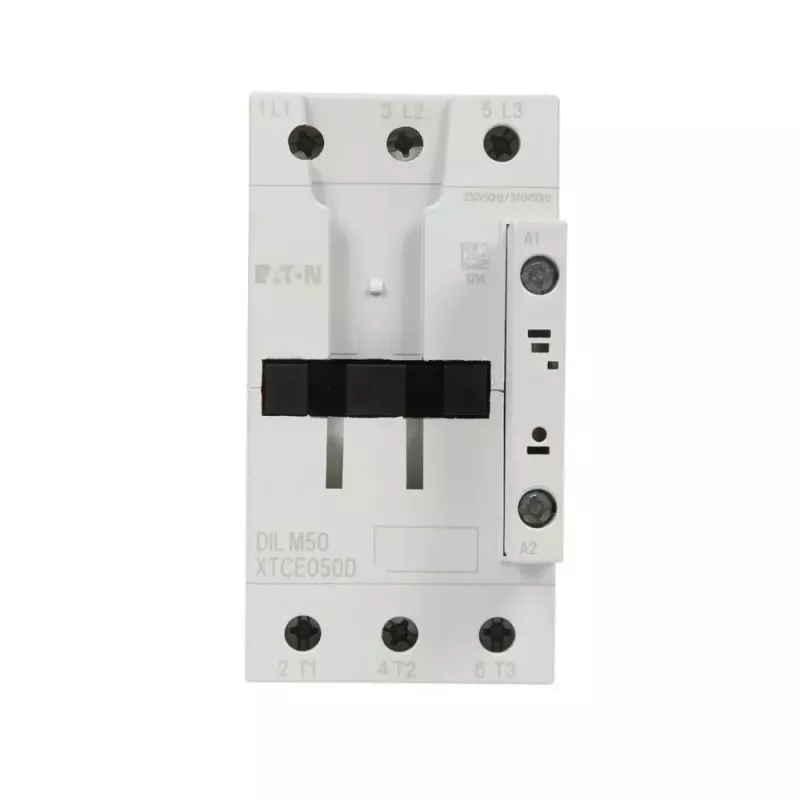

Eaton DILM50-22 contactor de 3 polos, 50 A AC-3, 22 kW, bobina 230 V AC 277862

Rated for 50 A at AC-3 (400 V) and 22 kW motor power, the Eaton DILM50-22 contactor delivers robust switching for industrial motor control. Its 230 V AC coil (50 Hz) and 240 V AC (60 Hz) compatibility ensure flexible deployment across regional power grids.

Overview

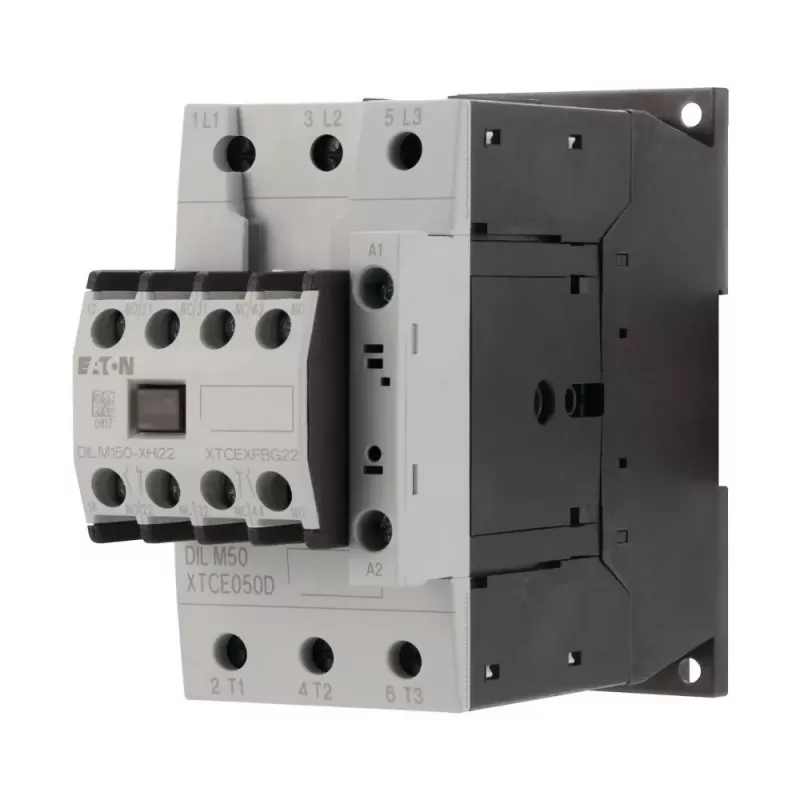

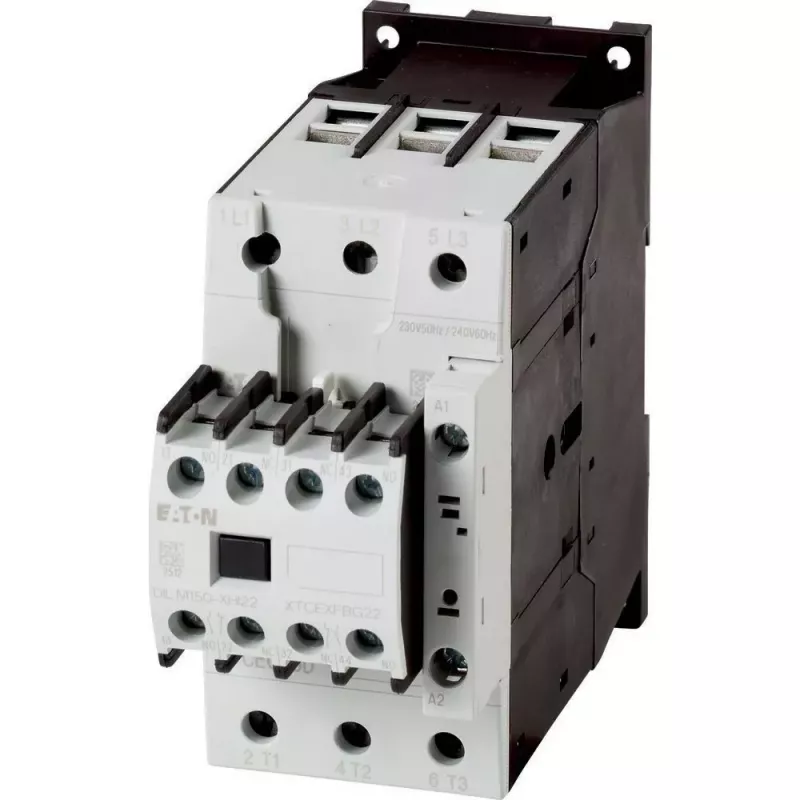

The DILM50-22 is a 3-pole contactor with 2 normally open and 2 normally closed auxiliary contacts. It supports AC-1 currents up to 80 A, making it suitable for both motor and non-inductive loads. Screw terminals provide secure connections, and the unit mounts on DIN rail or with screws.

What stands out

• High electrical durability: 1.5 million operations at AC-3
• Mechanical life of 10 million cycles
• Rated insulation voltage 690 V and impulse withstand 6 kV
• Wide operating temperature range: -25 °C to +60 °C

Technical details

• Rated operational current (AC-3, 400 V): 50 A
• Rated operational current (AC-1, 400 V): 80 A
• Rated operational power (AC-3, 400 V): 22 kW
• Control voltage: 230 V AC (50 Hz), 240 V AC (60 Hz)
• Auxiliary contacts: 2 NO + 2 NC
• Number of poles: 3
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting: DIN rail / screw
• Protection degree: IP20
• Terminal type: screw terminals
• Electrical life (AC-3): 1.5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations
• Standards: IEC/EN 60947, VDE 0660, UL, CSA
• Frame size: DILM50

Our verdict

The DILM50-22 combines high switching capacity with a compact frame, making it a reliable choice for demanding motor control applications. Its dual-frequency coil and robust contact design ensure long service life in industrial environments.
