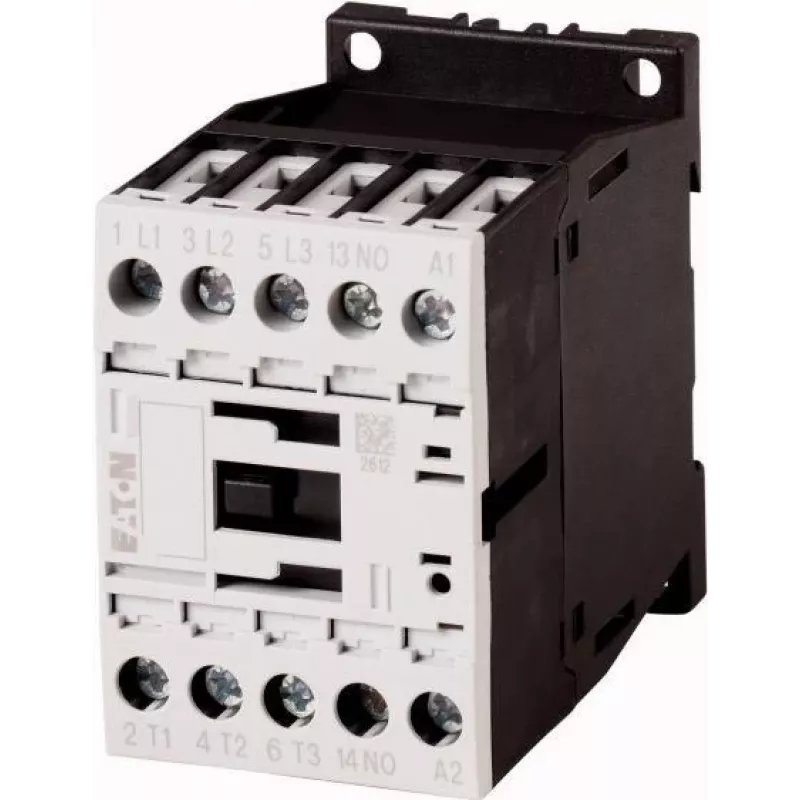

Eaton DILM7-10 contactor, tripolar, 7 A, bobina 230 V AC, 1 contacto auxiliar NO, IP20 276558

With a rated operational current of 7 A at AC-3 (400 V) and a coil voltage of 230 V AC (50/60 Hz), the Eaton DILM7-10 contactor delivers reliable switching for motor and lighting loads. Its 3-pole main contacts and 1 NO auxiliary contact provide flexible control in industrial applications.

Overview

The Eaton DILM7-10 is a 3-pole contactor from the DILM series, designed for DIN rail or screw mounting. It features screw terminals for secure wiring and an IP20 protection rating, suitable for use in control cabinets and distribution boards.

What stands out

• Rated operational power of 3 kW at AC-3, 400 V
• High electrical durability: 1.5 x 10^6 operations (AC-3)
• Mechanical durability: 10 x 10^6 operations
• Wide ambient operating temperature range: -25 to +60 °C
• Compact dimensions: 45 mm width, 68 mm height

Technical details

• Product type: Contactor
• Series: DILM
• Number of poles: 3
• Rated operational current (AC-3, 400 V): 7 A
• Rated operational power (AC-3, 400 V): 3 kW
• Coil voltage: 230 V AC
• Coil frequency: 50/60 Hz
• Auxiliary contacts: 1 NO
• Main contacts: 3 NO
• IP protection rating: IP20
• Mounting type: DIN rail / screw mounting
• Terminal type: Screw terminals
• Standards: IEC/EN 60947, VDE 0660, UL, CSA
• Housing colour: Black / White

Our verdict

A robust and compact contactor for switching motors up to 3 kW, with proven reliability and compliance with international standards.
