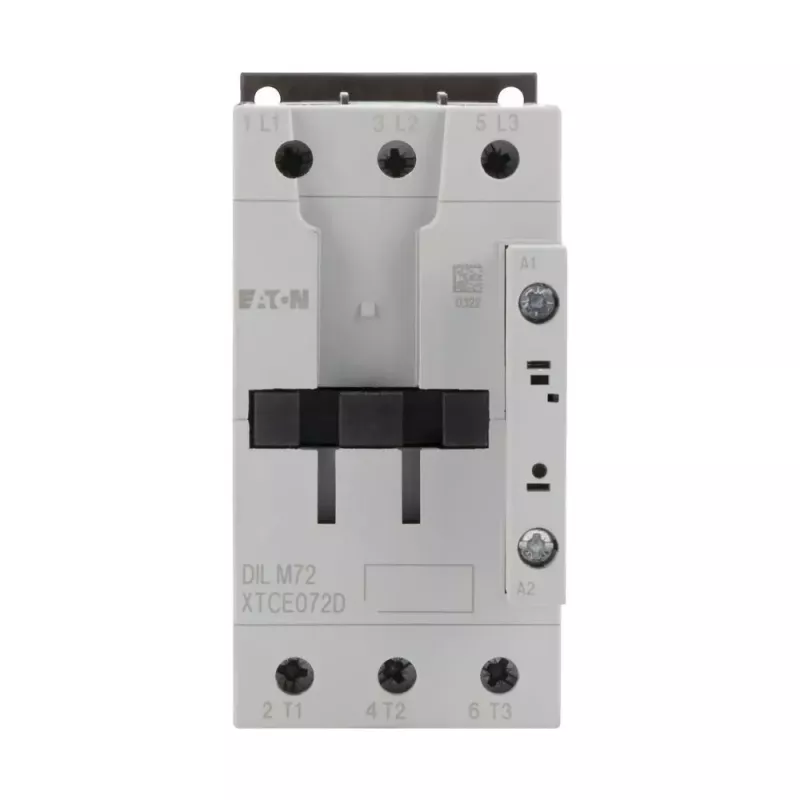

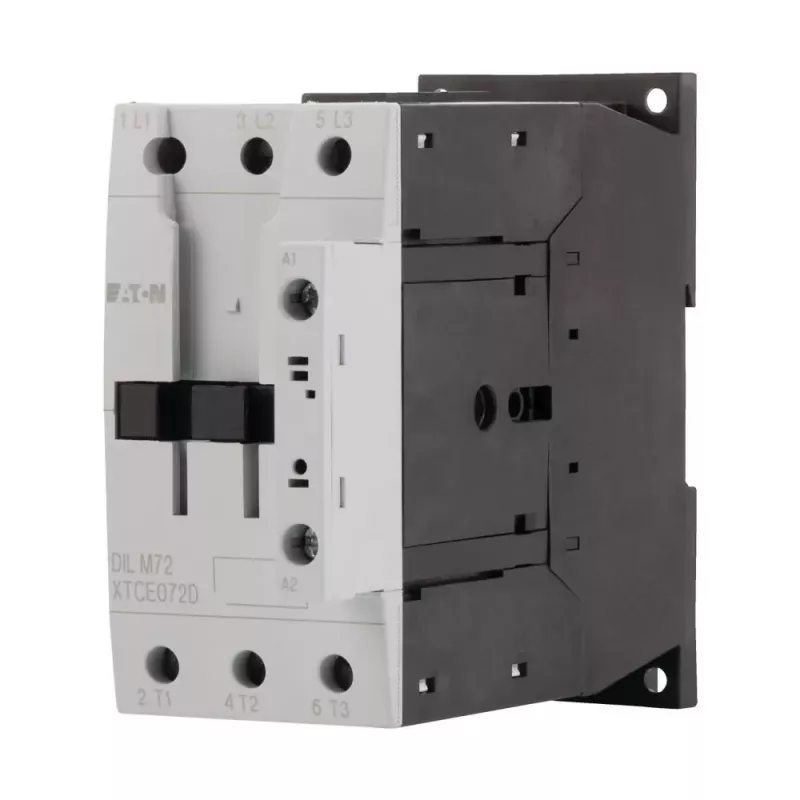

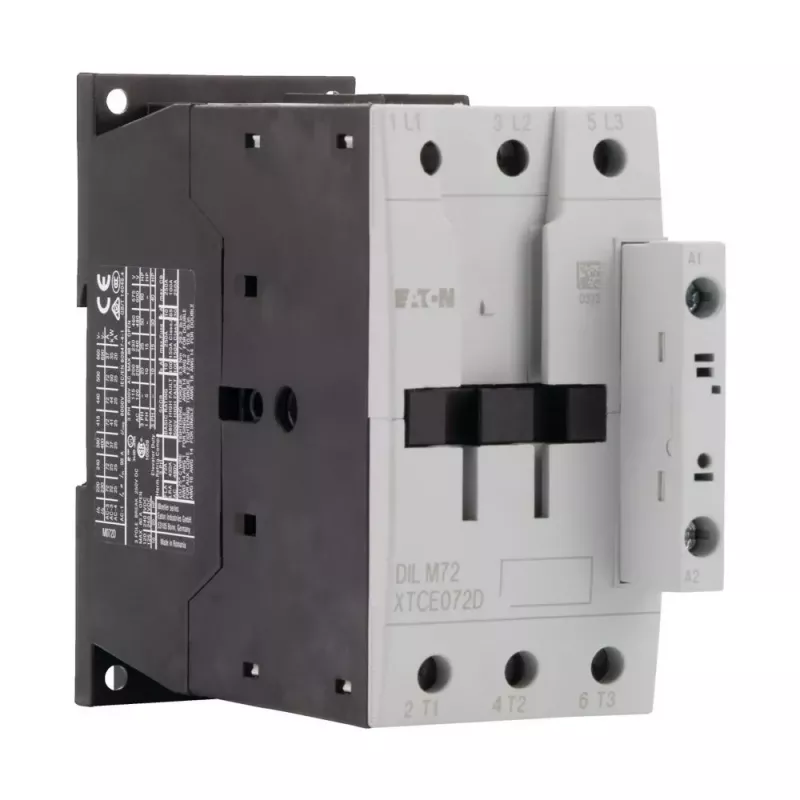

Eaton DILM72(RDC24) contactor de potencia, 3 polos, 72 A, bobina 24 V DC 107671

Industrial control panels and motor starters rely on the Eaton DILM72(RDC24) power contactor to switch three-phase loads up to 72 A. This contactor is built for machine builders and panel builders who need a compact, DIN rail mountable switching device with a 24 V DC coil and integrated auxiliary contacts.

Key specifications

• Rated operational current (AC-3, 400 V): 72 A
• Rated operational current (AC-1, 400 V): 90 A
• Rated operational voltage: 690 V AC
• Coil voltage: 24 V DC
• Auxiliary contacts: 1 NO + 1 NC
• Rated operational power (AC-3, 400 V): 37 kW
• Mounting: DIN rail or screw mounting
• Protection degree: IP20
• Ambient operating temperature: -25 to +60 °C
• Electrical life (AC-3): 1.5 million operations
• Mechanical life: 10 million operations
• Terminal type: screw terminals
• Rated impulse withstand voltage: 8 kV
• Rated insulation voltage: 690 V
• Overvoltage category: III
• Standards compliance: IEC/EN 60947, VDE 0660

Why choose it

The DILM72(RDC24) combines high switching capacity with a wide range of accessories and a long service life, making it a reliable choice for demanding industrial applications.

Ideal use cases

• Motor control for conveyors, pumps, and fans
• Heating and lighting control in industrial buildings
• Switching of three-phase loads in machine tools

Good to know

The contactor is designed for use in control circuits with a 24 V DC supply, common in PLC-controlled systems. Its screw terminals provide secure connections for copper conductors.
