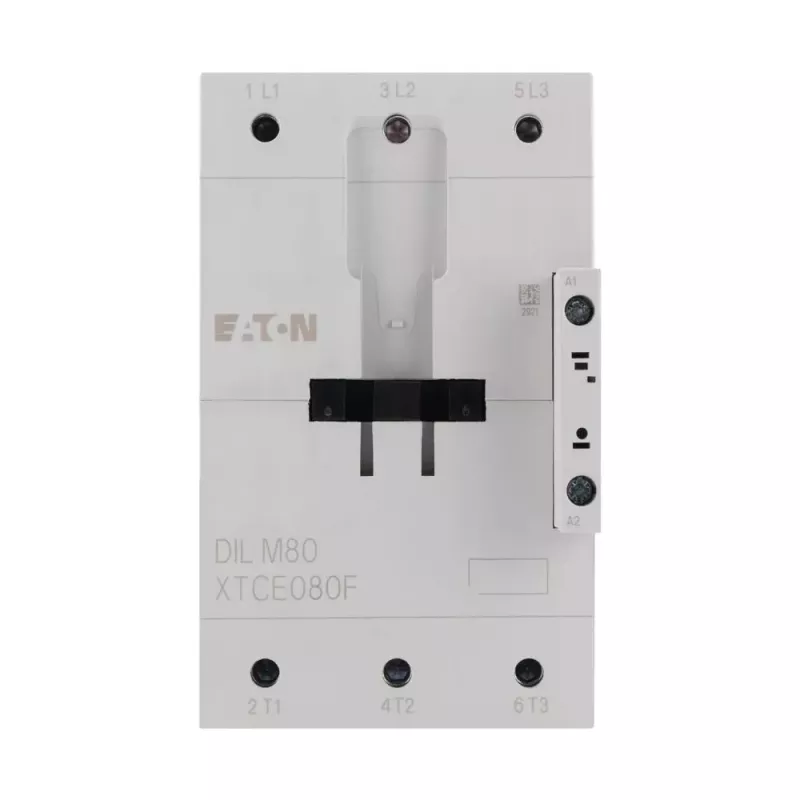

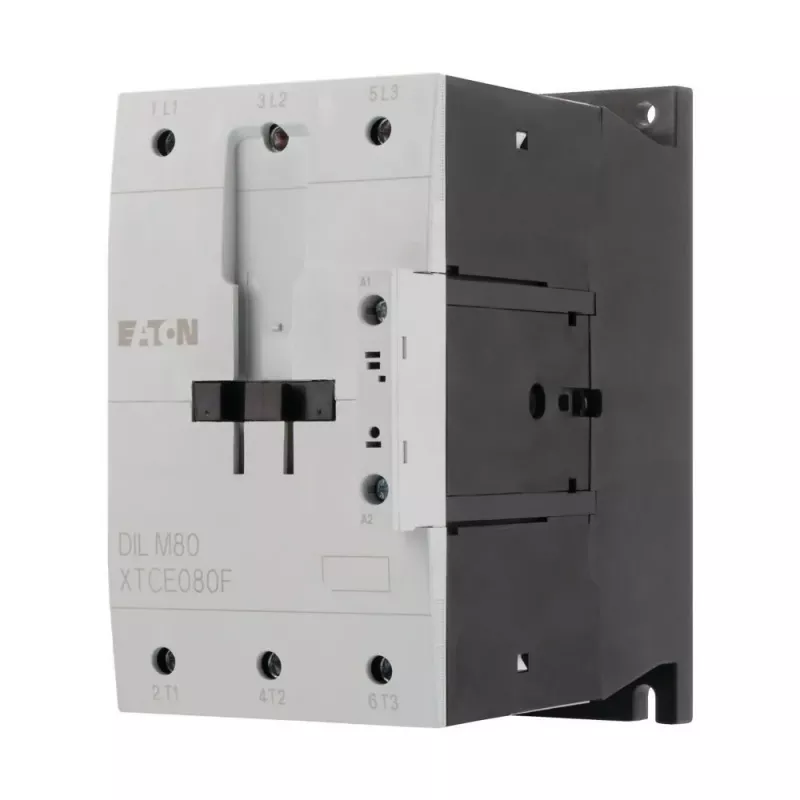

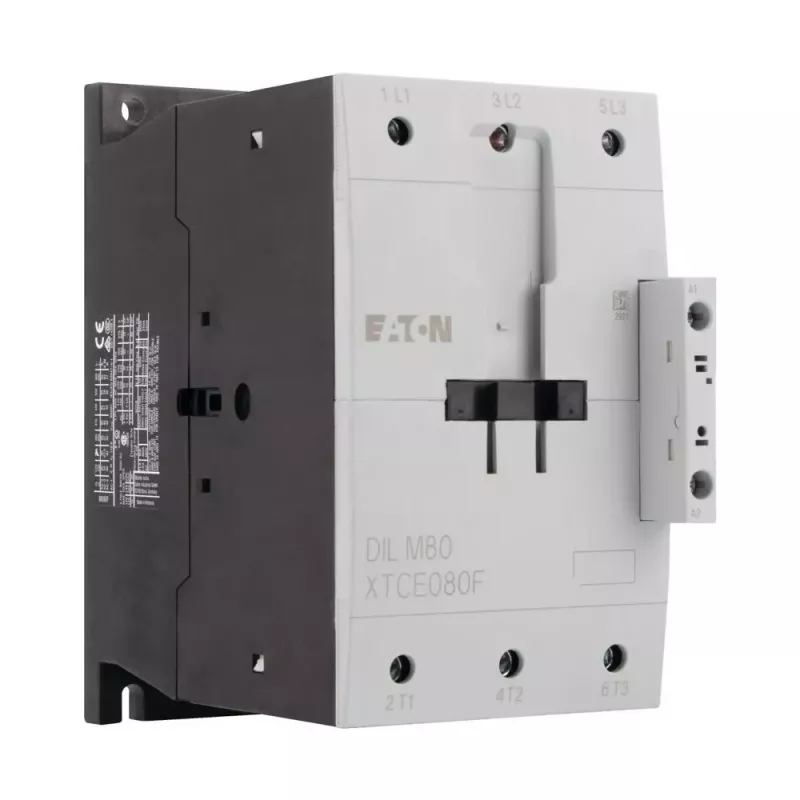

Eaton DILM80 contactor de potencia 3 polos, 80 A AC-3, bobina 230 V AC 50 Hz / 240 V AC 60 Hz 239402

Industrial electricians and panel builders use the Eaton DILM80 contactor to switch three-phase motors up to 37 kW at 400 V. It handles 80 A in AC-3 duty and 100 A in AC-1 duty, with a coil rated for 230 V AC at 50 Hz or 240 V AC at 60 Hz.

Key specifications

• Contactor type: Power contactor
• Number of poles: 3
• Rated operational current (AC-3, 400 V): 80 A
• Rated operational current (AC-1, 690 V): 100 A
• Rated operational voltage: up to 690 V AC
• Control voltage: 230 V AC (50 Hz) / 240 V AC (60 Hz)
• Rated power (AC-3, 400 V): 37 kW
• Auxiliary contacts: 1 NO + 1 NC
• Terminal type: screw terminals
• Mounting: DIN rail or screw mounting
• Degree of protection: IP20
• Operating temperature: -25 to +60 °C
• Electrical durability (AC-3): 1.5 million operations
• Mechanical durability: 10 million operations

Why choose it

The DILM80 combines high switching capacity with a compact design and reliable screw terminals. Its wide coil voltage range covers both 50 Hz and 60 Hz supplies, making it suitable for international applications.

Ideal use cases

• Motor starting and stopping in industrial machinery
• Heating and lighting control in building automation
• Main switching in distribution boards

Good to know

Mount the contactor on a 35 mm DIN rail or with screws. The IP20 housing is intended for installation inside enclosures. For maintenance, the contacts are replaceable.
