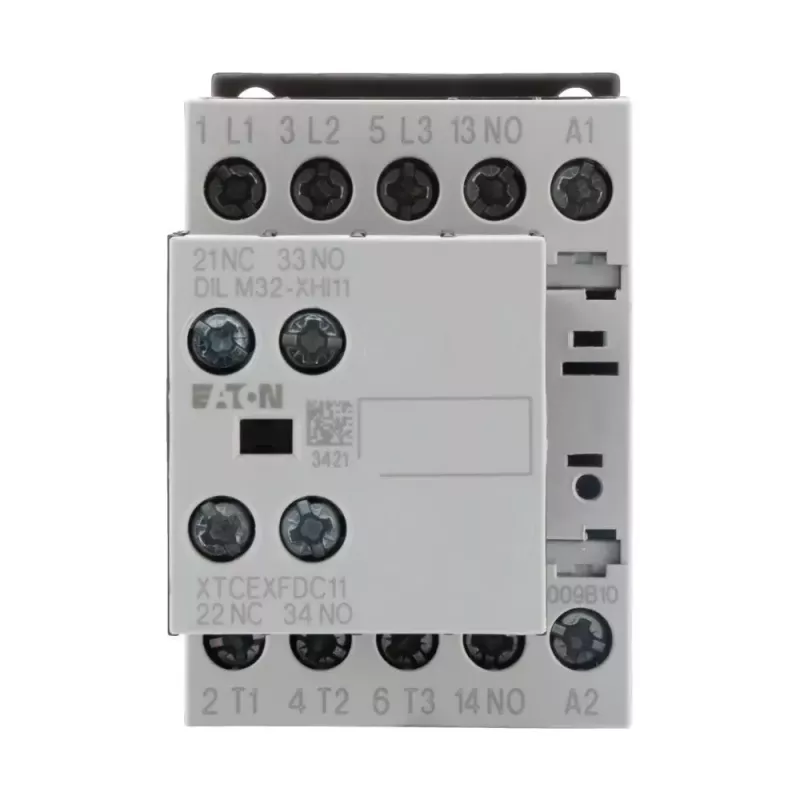

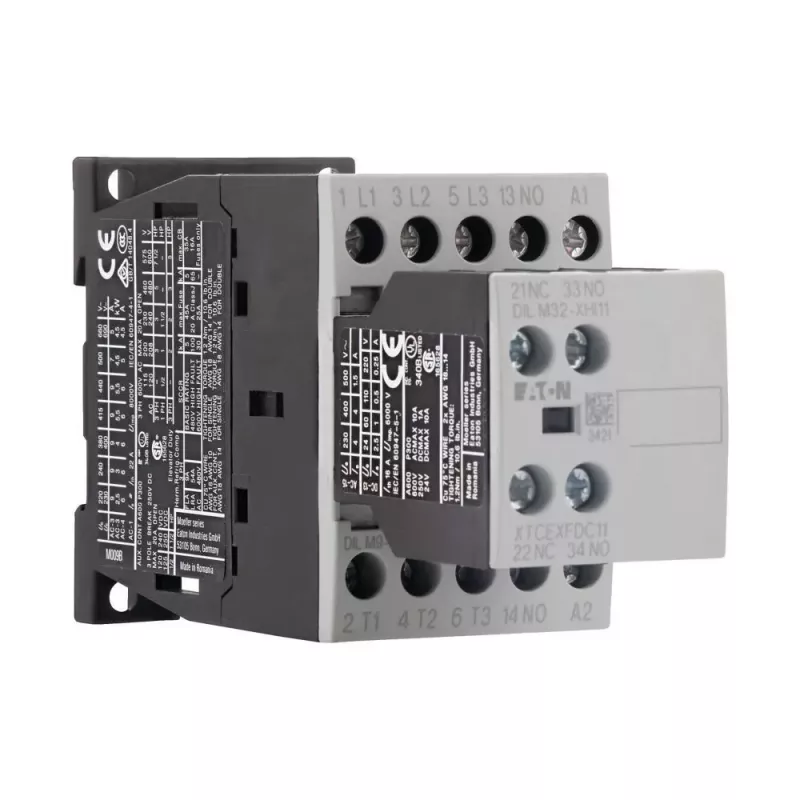

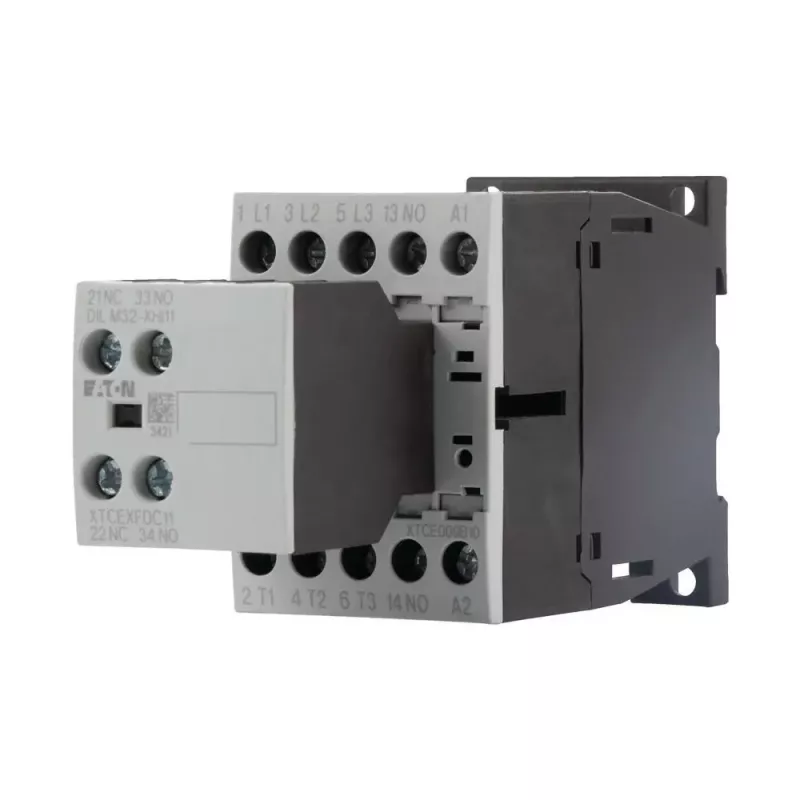

Eaton DILM9-21 contactor de potencia tripolar 4kW 400V AC bobina 230V 50Hz 2NO+1NC 276760

Power contactor from the DILM series, engineered to switch three-phase motors up to 4 kW at 400 V AC. Its 230 V 50 Hz coil and 2NO+1NC auxiliary contacts provide reliable control in industrial switching applications.

Advantages

Compact 3-pole design with screw terminals for main and control circuits, suitable for DIN rail or screw mounting. Rated insulation voltage of 690 V and impulse withstand of 6 kV ensure dependable operation in demanding environments.

Suitable for

• Motor control in industrial machinery
• Heating, ventilation, and air conditioning systems
• Pump and fan switching applications

Key specifications

• Rated operational power: 4 kW (AC-3, 400 V)
• Rated operational current: 9 A (AC-3, 400 V)
• Coil voltage: 230 V AC, 50 Hz
• Auxiliary contacts: 2 NO + 1 NC
• Mounting: DIN rail or screw
• Protection degree: IP20

Recommendations

Select this contactor for reliable switching of small three-phase motors where a compact footprint and standard coil voltage are required.
