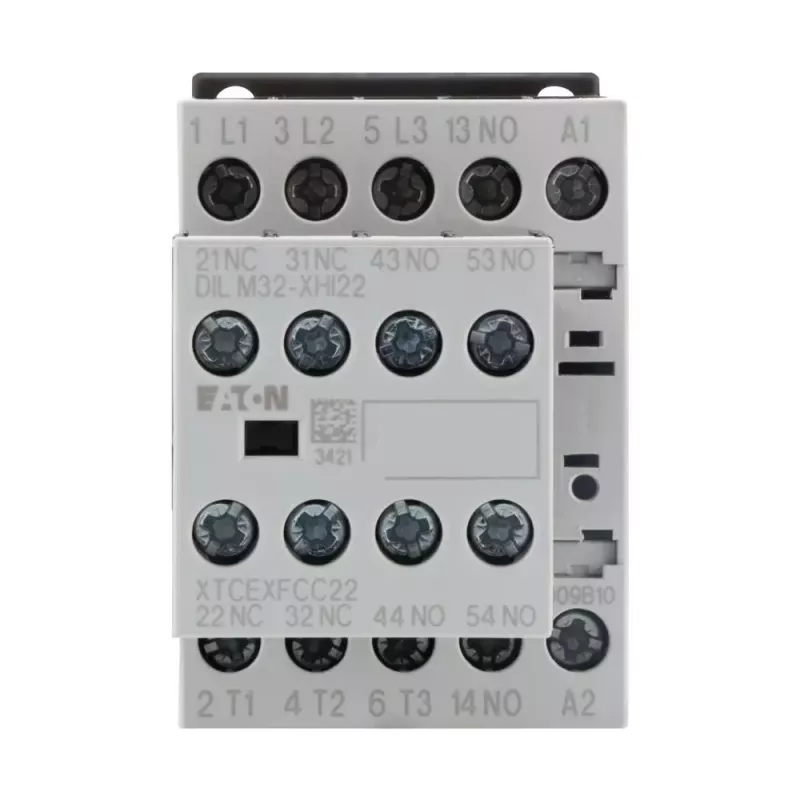

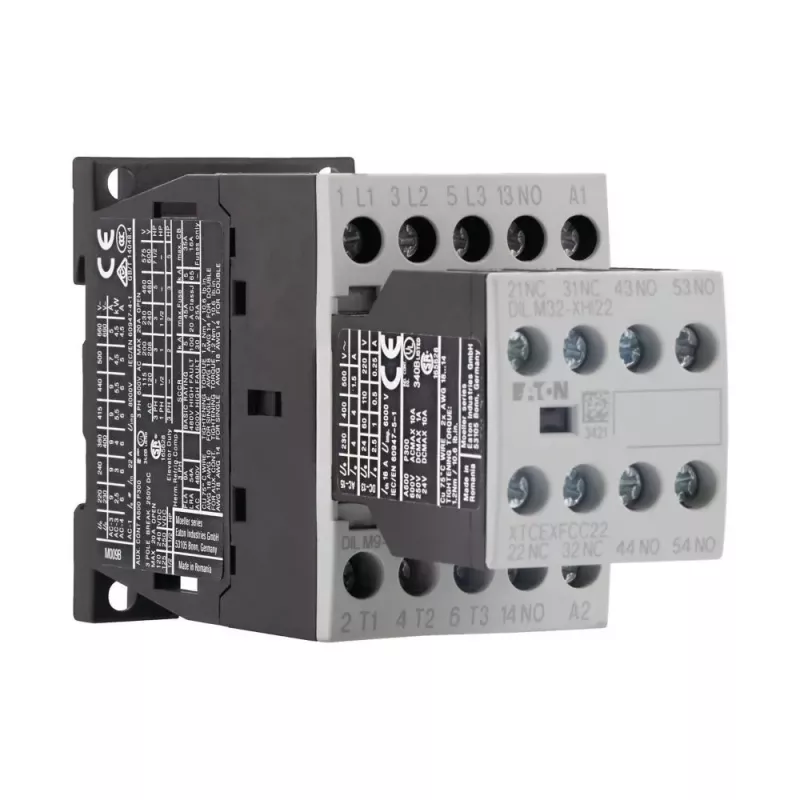

Eaton DILM9-32 contactor de potencia, 3 polos, 9 A, bobina 230 V AC, 1 contacto auxiliar NA, IP20 276795

Industrial control panels and motor starters rely on the Eaton DILM9-32 contactor to switch three-phase loads up to 4 kW at 400 V AC. This 3-pole contactor is rated for 9 A operational current (AC-3) and features a 230 V 50 Hz / 240 V 60 Hz coil, making it suitable for machine builders and panel shops that need reliable switching for small motors, heaters, and lighting circuits.

Key specifications

• 3 main poles, 9 A rated operational current (AC-3, 400 V)
• Coil voltage: 230 V AC 50 Hz, 240 V AC 60 Hz
• 1 normally open (NO) auxiliary contact
• Rated operational power: 4 kW at 400 V AC-3
• IP20 protection, suitable for enclosed panels
• DIN rail or screw mounting
• Operating temperature: -25 °C to +60 °C
• Mechanical durability: 10 million operations
• Electrical durability: 1.5 million operations (AC-3)
• Complies with IEC/EN 60947

Why choose it

The DILM9-32 combines a compact 45 mm width with screw terminals for secure wiring. Its high mechanical life and wide temperature range ensure dependable performance in demanding industrial environments. The integrated auxiliary contact simplifies control circuit integration without additional components.

Ideal use cases

• Motor starting for small three-phase motors up to 4 kW
• Heating and lighting load switching in control panels
• Replacement contactor for Eaton DILM series installations

Good to know

The contactor is designed for DIN rail or screw mounting and has IP20 protection, meaning it must be installed inside an enclosure. Coil terminals accept standard control wiring, and the device is rated for operation up to 690 V for non-inductive loads.
