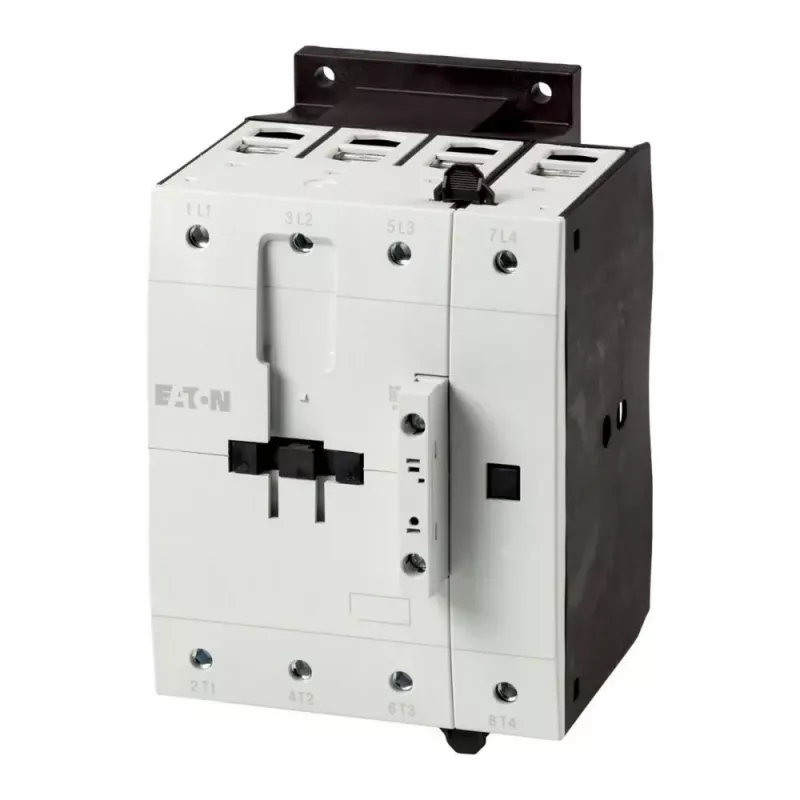

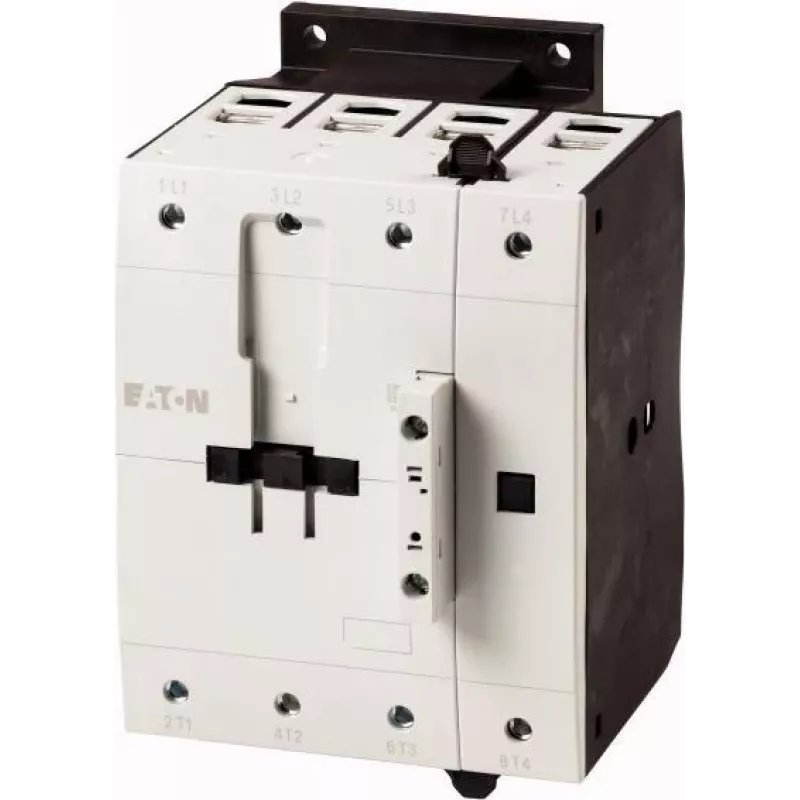

Eaton DILMP125(RAC240) contactor de potencia 3 polos 125 A 240 V AC bobina IP00 109905

Power contactor with 125 A rated operational current and 240 V AC coil, built for switching motors and other loads in industrial control systems.

Advantages

High switching capacity up to 60 kW at 400 V AC-3, reliable operation with integrated auxiliary contacts, and robust screw mounting for secure installation.

Suitable for

• Motor control in industrial machinery
• Heating and lighting load switching
• Main and control circuits up to 125 A

Key specifications

• 3-pole power contactor
• Rated operational current: 125 A (AC-3, 400 V)
• Coil voltage: 240 V AC, 50/60 Hz
• Auxiliary contacts: 1 NO + 1 NC
• Protection degree: IP00
• Rated insulation voltage: 1000 V
• Rated impulse withstand voltage: 8 kV
• Operating temperature: -25 to +60 °C
• Dimensions: 133 x 175 x 170 mm

Recommendations

Install in an enclosure to protect against accidental contact, as the device has IP00 protection.
