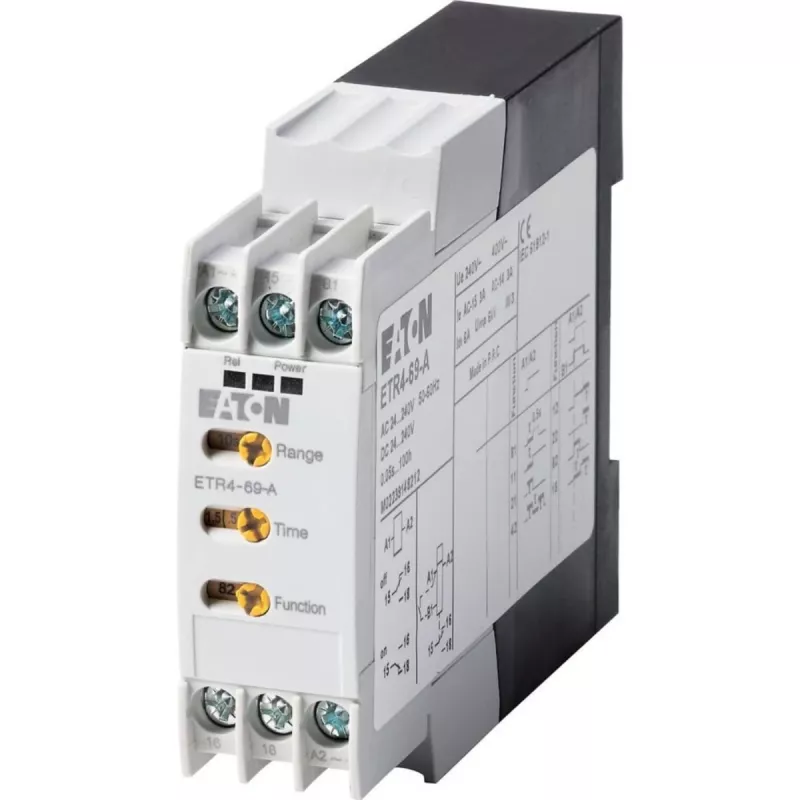

EATON ETR4-69-A Relé temporizador multifunción, 1 conmutador, 24-240 V AC/DC, 0,05 s - 100 h, carril DIN

The EATON ETR4-69-A stands out in the timing relay market by combining seven timing functions in a compact 17.5 mm wide housing, eliminating the need for multiple dedicated relays. This multi-function device handles supply voltages from 24 to 240 V AC/DC, making it a universal solution for control cabinets worldwide. The wide time range from 0.05 seconds to 100 hours covers everything from rapid cycling to long-term process timing, while the SPDT contact rated at 8 A (AC-1) provides ample switching capacity for most industrial loads.

Highlights

• Seven selectable timing functions: on-delay, off-delay, interval, pulse, and more
• Universal supply voltage: 24-240 V AC/DC, suitable for global applications
• Extremely wide time setting range: 0.05 s to 100 h, with ±5% accuracy
• Compact design: only 17.5 mm wide, saving space on DIN rail
• LED indicators for supply and relay status for quick diagnostics
• Control input for external start/stop or reset functions

In daily use

Installation is straightforward: snap the unit onto a standard 35 mm DIN rail, wire the supply, control input, and load to the screw terminals, then select the desired function and time range using the front dials. The clear LED indication shows at a glance whether the relay is powered and if the output contact is closed. The wide voltage range means the same model can be used in different machines or panels without stocking multiple voltage variants. The control input allows the timing cycle to be triggered or reset remotely, adding flexibility in automated systems. With IP40 housing and IP20 terminal protection, the ETR4-69-A is suitable for use in industrial control cabinets and distribution boards.

Full specifications

• Product type: Multi-function timing relay
• Supply voltage: 24-240 V AC/DC
• Time range: 0.05 s to 100 h
• Number of functions: 7
• Output contact: 1 changeover (SPDT)
• Contact rating: 8 A (AC-1), 5 A (AC-15)
• Mounting: DIN rail, 1 module (17.5 mm wide)
• Connection: Screw terminals
• Operating temperature: -25 to +60 °C
• Protection: IP40 housing, IP20 terminals
• Time setting accuracy: ±5%
• Power consumption: max 3 VA (AC), max 1.5 W (DC)
• Indicators: LED for supply and relay status
• Control input: Yes

Final note

Choose the EATON ETR4-69-A for a versatile, space-saving timing solution that adapts to your control needs without compromise.
