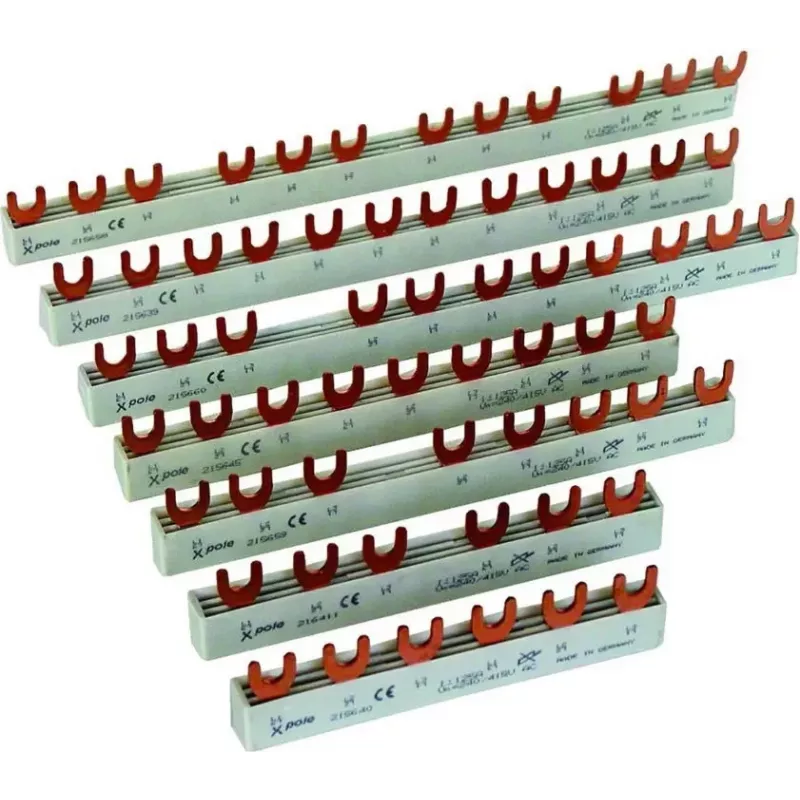

Eaton Euro-Vario 63A Barra colectora de pines monofásica de 6 módulos 215638

Electricians and panel builders use this Eaton Euro-Vario pin busbar to distribute power to six single-pole modular devices on a DIN rail. It carries 63 A per phase and suits installations where space and reliability matter.

Key specifications

• Rated current: 63 A
• Number of phases: 1
• Number of modules: 6
• Pole configuration: 1-pole
• Busbar type: pin type
• Conductor material: copper
• Insulation material: plastic
• Rated voltage: 230/400 V AC
• Conductor cross-section: 10 mm²
• Number of pins: 6
• Pin spacing: 17.5 mm
• Mounting type: DIN rail
• Series: Euro-Vario

Why choose it

The copper conductor ensures low resistance and efficient power distribution. The pin design simplifies connection to compatible Eaton xPole devices, reducing wiring time and errors.

Ideal use cases

• Residential distribution boards
• Commercial panelboards
• Industrial control cabinets

Good to know

Designed for use with Eaton xPole series modular devices such as MCBs and RCDs. The 17.5 mm pin spacing matches standard DIN rail module widths.
