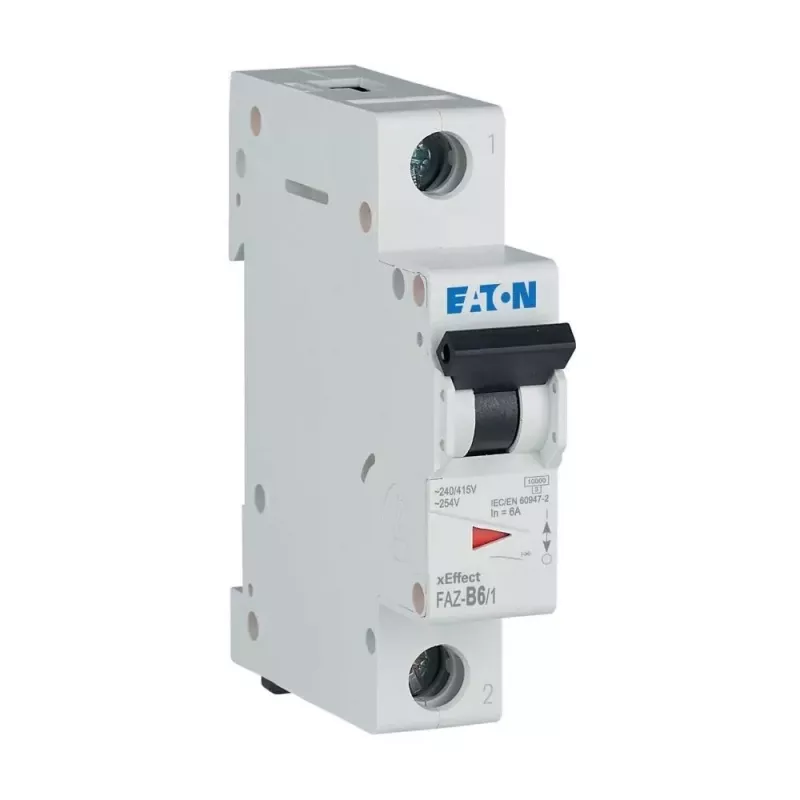

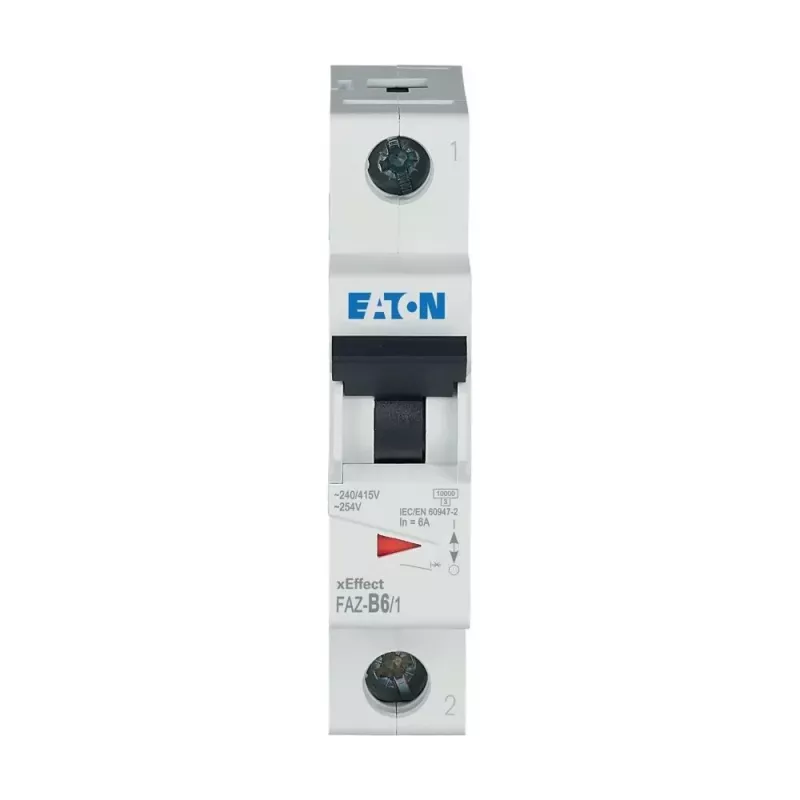

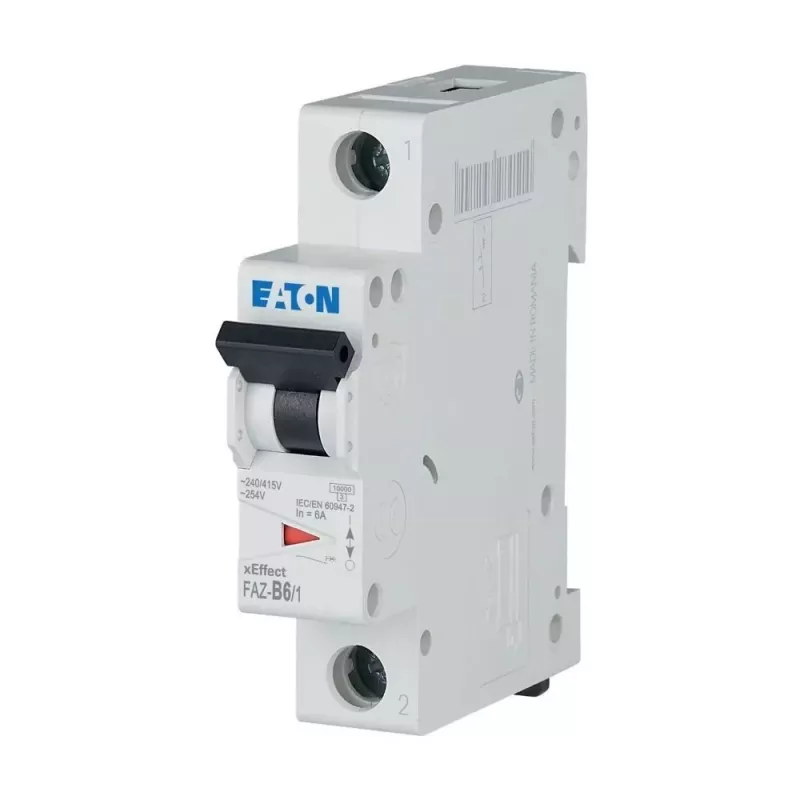

Eaton FAZ-B6/1 Interruptor automático (MCB) tipo B, 1 polo, 6 A, 10 kA 278529

The Eaton FAZ-B6/1 miniature circuit breaker (MCB) provides reliable overcurrent and short-circuit protection for residential and commercial electrical installations. Its B characteristic ensures fast tripping on moderate inrush currents, making it ideal for lighting and socket circuits.

Advantages

High switching capacity of 10 kA, compact 1-module width (17.5 mm) for DIN rail mounting, and screw terminals for secure connections. Thermomagnetic tripping ensures long service life with 10,000 electrical and 20,000 mechanical cycles.

Suitable for

• Protection of lighting circuits and general power outlets
• Residential and commercial distribution boards
• DIN rail mounting in control panels

Key specifications

• Rated current: 6 A
• Number of poles: 1
• Tripping characteristic: B
• Rated voltage: 230/400 V AC
• Rated switching capacity: 10 kA
• Frequency: 50/60 Hz
• Module width: 1 (17.5 mm)
• Degree of protection: IP20 (terminals)
• Standard: IEC/EN 60898-1

Recommendations

For circuits with higher inrush currents, consider a C or D characteristic breaker. Always verify compliance with local electrical codes.
