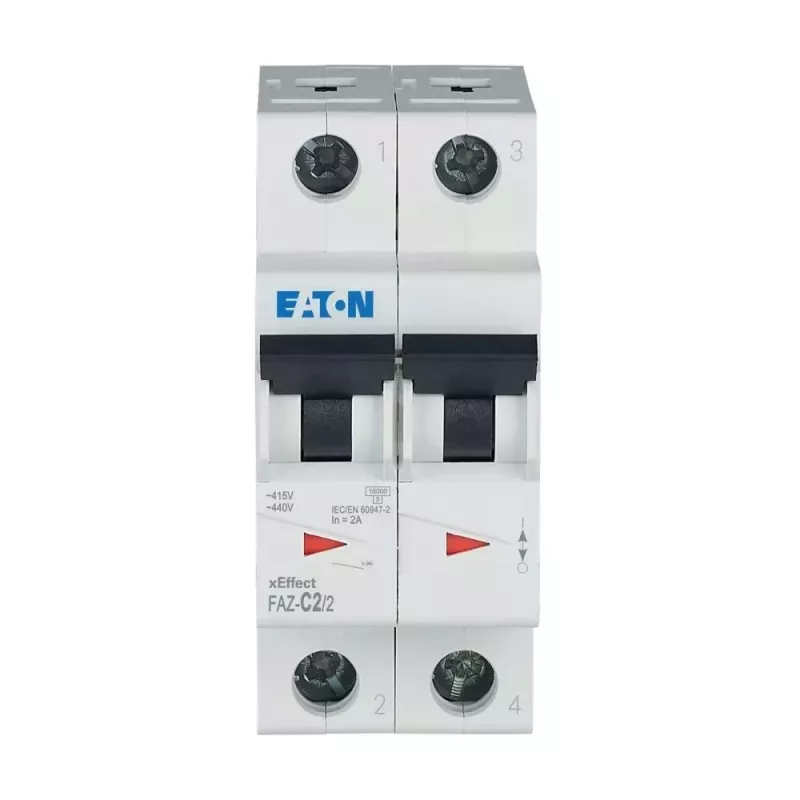

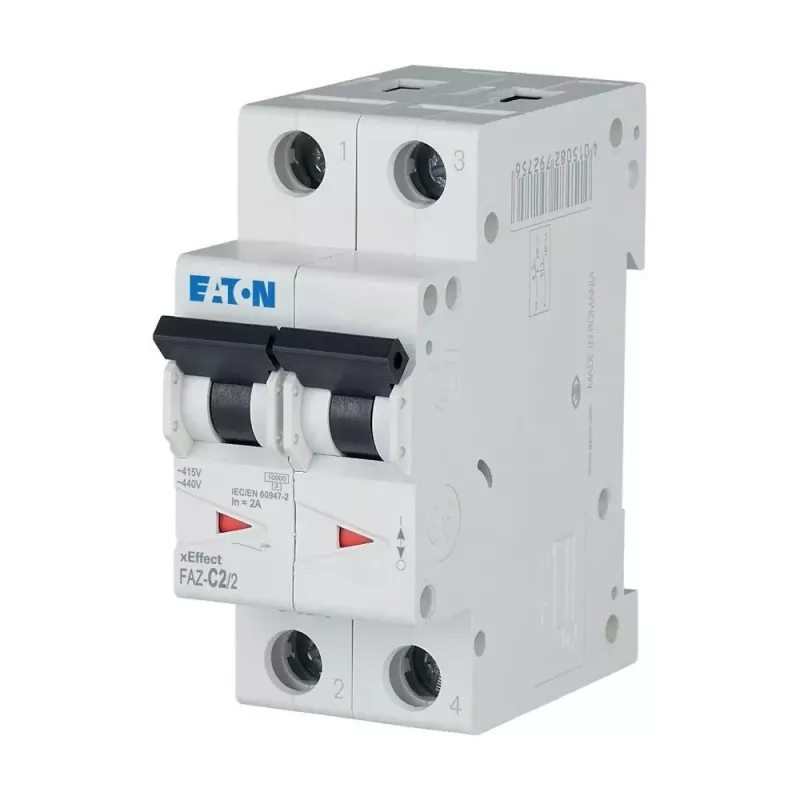

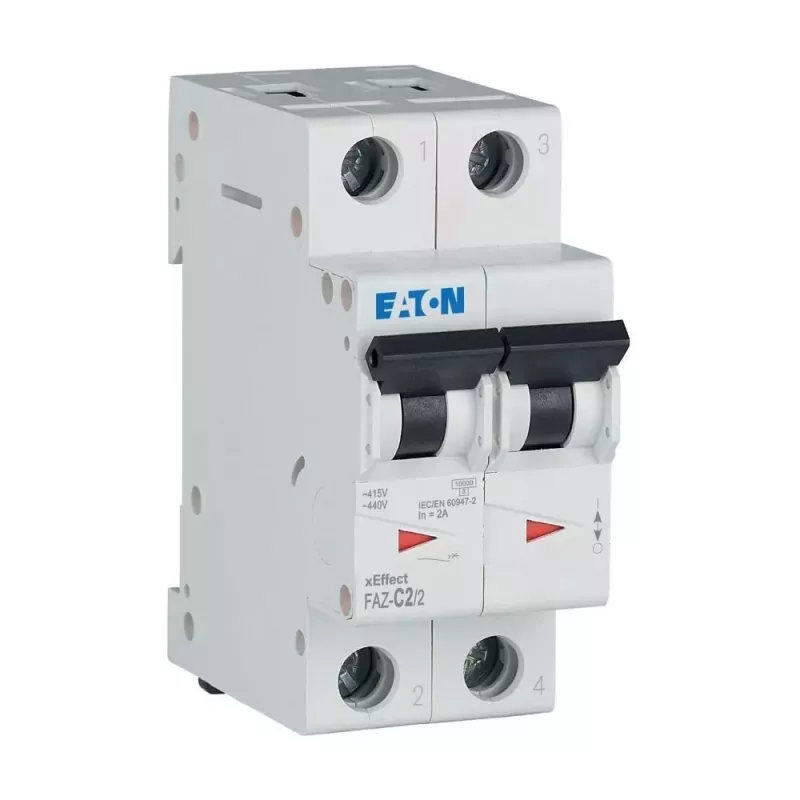

Eaton FAZ-C2/2 interruptor automático (MCB), 2 A, 2 polos, característica C, 230/400 V AC, 10 kA 278748

With a rated breaking capacity of 10 kA, the Eaton FAZ-C2/2 provides reliable protection against overloads and short circuits in commercial and industrial electrical installations. This 2-pole miniature circuit breaker (MCB) features a C tripping characteristic, making it suitable for circuits with moderate inrush currents such as lighting and socket outlets.

Overview

The FAZ-C2/2 is a compact, DIN rail mountable MCB designed for use in distribution boards and control panels. It offers a rated current of 2 A and operates at a rated voltage of 230/400 V AC, with a frequency range of 50/60 Hz. Screw terminals accommodate conductors from 1 to 25 mm², ensuring secure and flexible wiring.

What stands out

• High breaking capacity of 10 kA for enhanced safety
• Energy limiting class 3 for effective current limitation
• Long mechanical endurance of over 20,000 operations
• Wide operating temperature range from -25 °C to +75 °C

Technical details

• Number of poles: 2
• Rated current: 2 A
• Tripping characteristic: C
• Rated voltage: 230/400 V AC
• Rated breaking capacity: 10 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail (EN 60715)
• Terminal type: Screw terminals
• Terminal capacity: 1-25 mm²
• Degree of protection: IP20 (terminals)
• Energy limiting class: 3
• Rated impulse withstand voltage: 4 kV
• Operating temperature range: -25 to +75 °C
• Electrical endurance: >10,000 operations
• Mechanical endurance: >20,000 operations

Our verdict

A dependable choice for protecting low-current circuits, the FAZ-C2/2 combines robust performance with ease of installation, backed by Eaton's engineering expertise.
