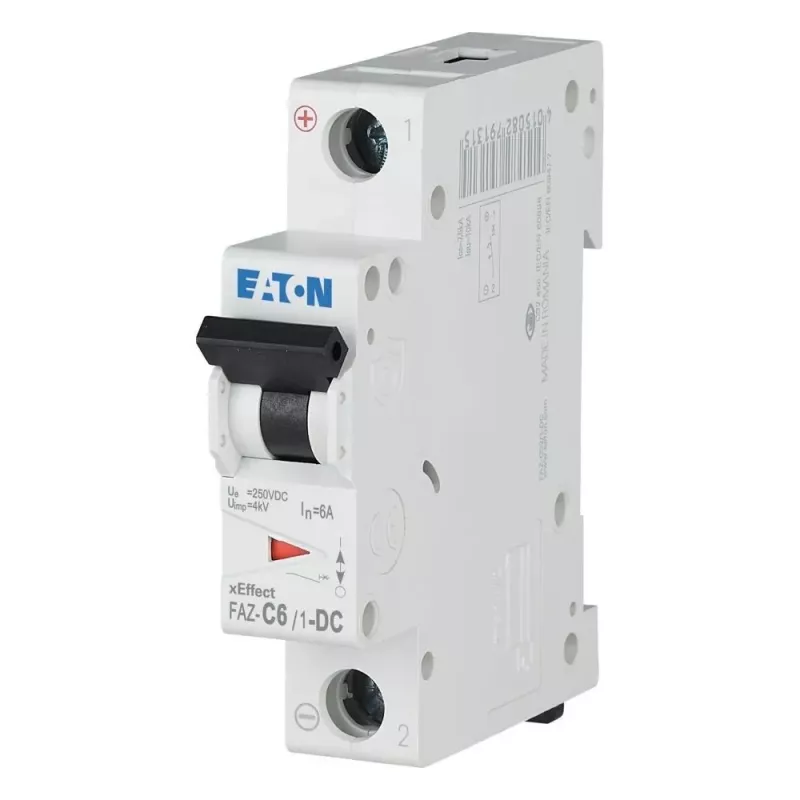

Eaton FAZ-C6/1-DC interruptor automático en miniatura 1 polo 6A tipo C 110V DC 279125

DC circuits need reliable overcurrent protection to prevent damage to wiring and connected equipment. The Eaton FAZ-C6/1-DC miniature circuit breaker (MCB) provides exactly that, interrupting fault currents quickly and safely in 1-pole DC applications.

Who is it for

This MCB is for panel builders, electricians, and maintenance technicians working with DC power distribution systems, such as those found in industrial control panels, renewable energy installations, and telecommunications equipment. It is suitable for DIN rail mounting in distribution boards and enclosures.

Main features

• 1-pole design for DC circuits
• Rated current 6 A with type C tripping characteristic
• Rated voltage 110 V DC
• Breaking capacity 10 kA at 110 V DC
• Short-circuit release range 5-10 times rated current
• Screw terminals for secure conductor connection
• Position indicator red/green for clear status indication
• Energy limiting class 3

Specifications

• Number of poles: 1
• Rated current: 6 A
• Tripping characteristic: C
• Rated voltage: 110 V DC
• Rated breaking capacity: 10 kA at 110 V DC
• Frequency: DC
• Mounting type: DIN rail
• Terminal capacity solid: 1 - 25 mm²
• Terminal capacity stranded: 1 - 16 mm²
• Degree of protection housing: IP40
• Degree of protection terminals: IP20
• Ambient operating temperature: -25 to +75 °C
• Mechanical lifespan: 20,000 operations
• Electrical lifespan: 10,000 operations

Tips

When installing, ensure the conductor cross-sections are within the specified terminal capacity and torque the screws to the manufacturer's recommendation. The red/green indicator helps quickly identify the breaker's state during maintenance.
