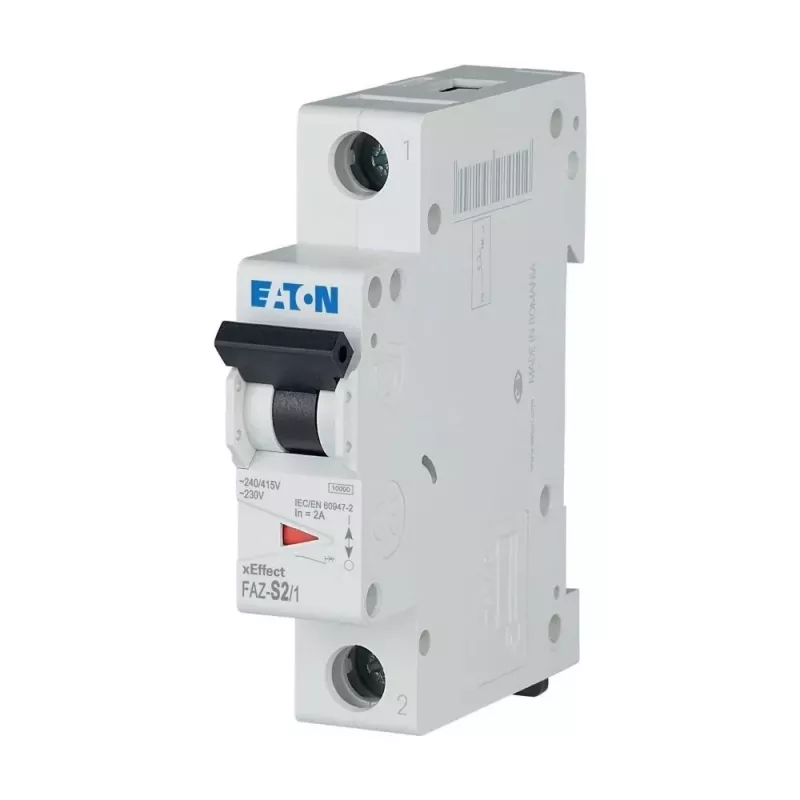

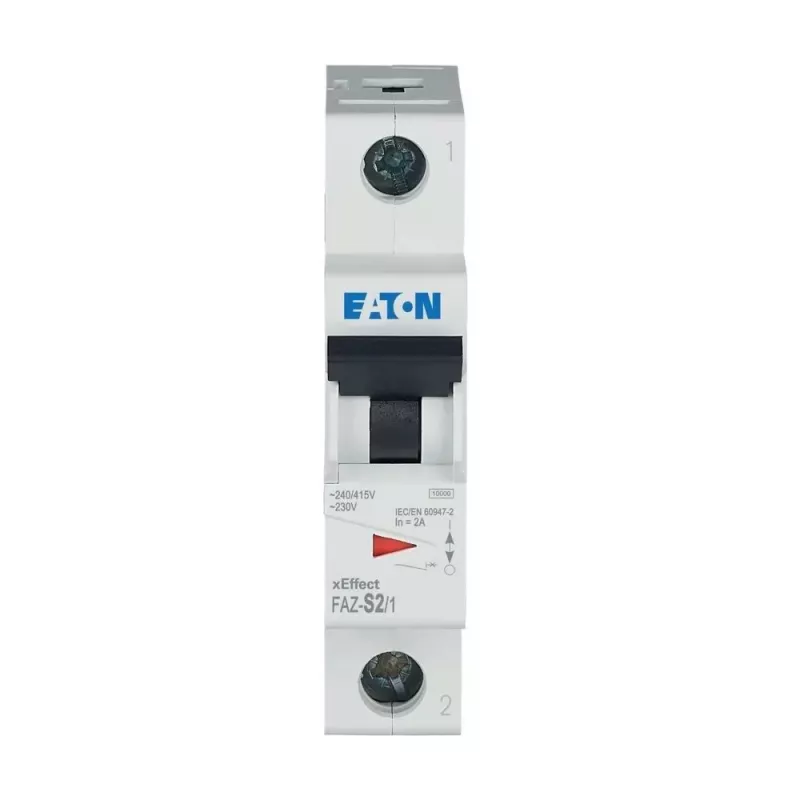

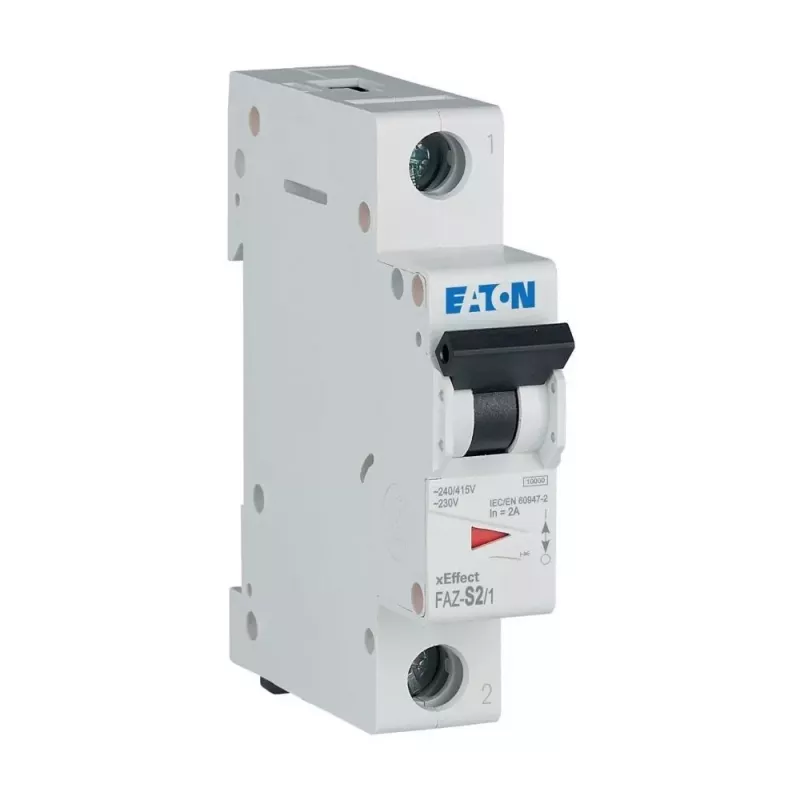

Eaton FAZ-S2/1 interruptor automático magnetotérmico 2 polos 1 A tipo S 10 kA 278607

The Eaton FAZ-S2/1 is a 2-pole miniature circuit breaker (MCB) with a rated current of 1 A and type S tripping characteristic, providing reliable overcurrent and short-circuit protection in electrical distribution systems. Its 10 kA breaking capacity ensures safe interruption of fault currents up to 10,000 A.

Advantages

This MCB offers high breaking capacity, precise tripping, and a compact 2-module width for space-saving DIN rail installation. Screw terminals accept solid or stranded conductors from 1 to 25 mm², simplifying wiring.

Suitable for

• Protection of control circuits and small loads
• Industrial and commercial distribution boards
• Applications requiring type S tripping for selective coordination

Key specifications

• Rated current: 1 A
• Number of poles: 2
• Tripping characteristic: S
• Rated voltage: 230/400 V AC
• Rated breaking capacity: 10 kA
• Frequency: 50/60 Hz
• Mounting: DIN rail (EN 60715)
• Terminal capacity: 1-25 mm² (solid/stranded)
• Module width: 2 modules (35.6 mm)

Recommendations

For reliable protection of sensitive circuits with low inrush currents, the Eaton FAZ-S2/1 is an excellent choice due to its precise type S tripping and robust construction.
