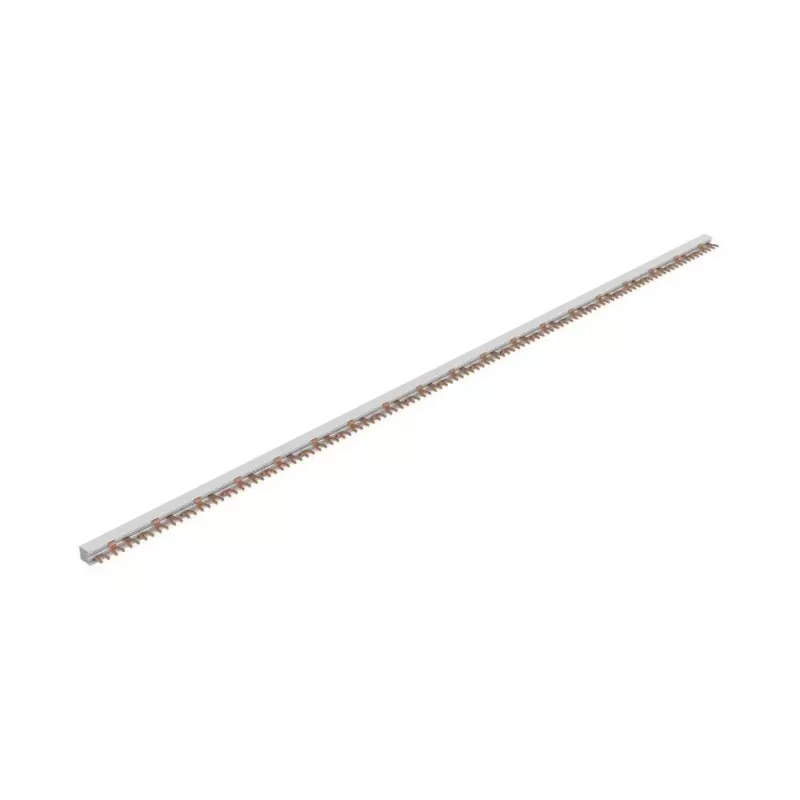

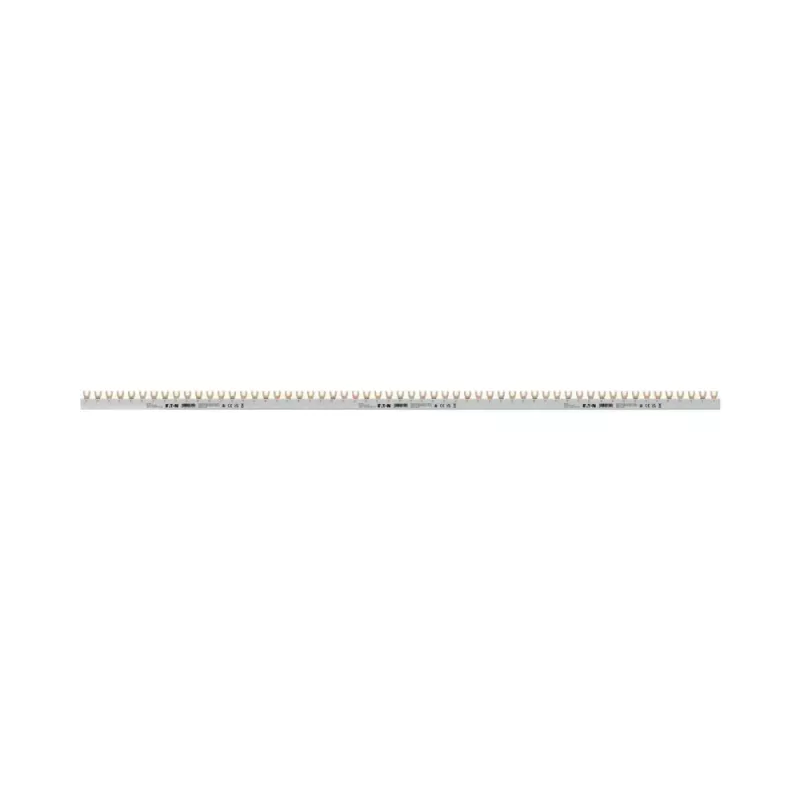

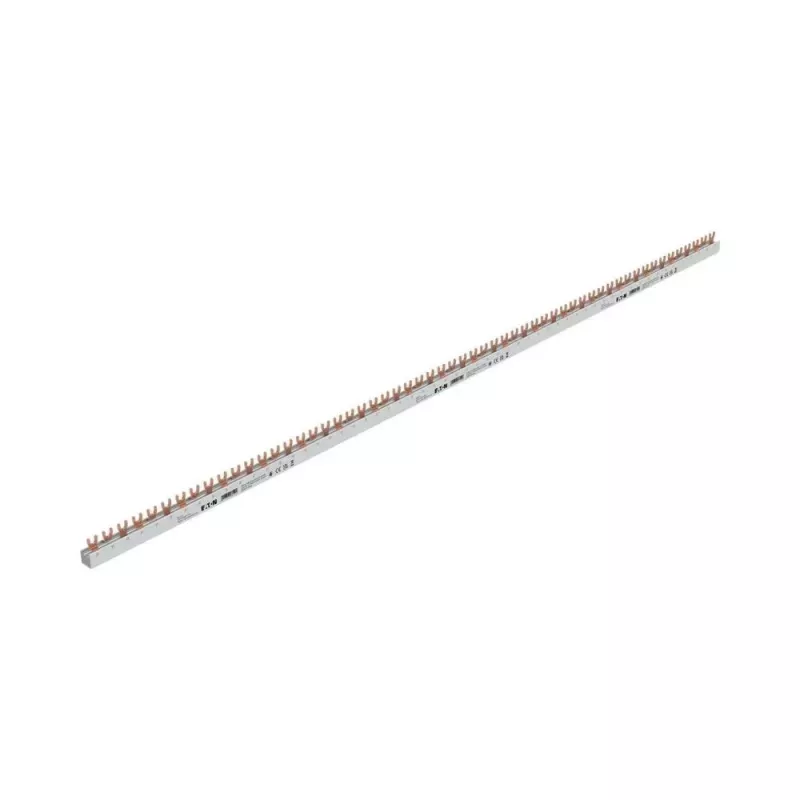

Eaton GVK-16/3P+N-4TE peine de distribución trifásica 63A 4TE peine de pines EP-501074

Pin busbar for 3-phase power distribution in electrical panels, delivering a rated current of 63 A. The fork connection design ensures secure and efficient power distribution to modular DIN rail devices.

Advantages

Fully insulated copper construction provides safety and reliability. The 4 TE width allows compact integration into distribution boards, while the 3P+N configuration supports balanced three-phase loads with neutral. Compatible with Eaton xPole series and other modular devices with fork terminals.

Suitable for

• Power distribution in electrical panels
• Connecting modular devices with fork terminals
• Three-phase circuits requiring neutral

Key specifications

• Product type: Pin busbar
• Number of phases: 3-phase
• Poles: 3P+N
• Rated current: 63 A
• Number of modules: 4 TE
• Connection type: Fork
• Cross-section: 10 mm²
• Rated voltage: 400 V AC
• Insulation: Fully insulated
• Pitch: 18 mm
• Material: Copper
• Mounting type: DIN rail
• Colour: Grey

Recommendations

Verify compatibility with your modular devices before installation. Ensure proper torque on fork connections to maintain reliable contact.
