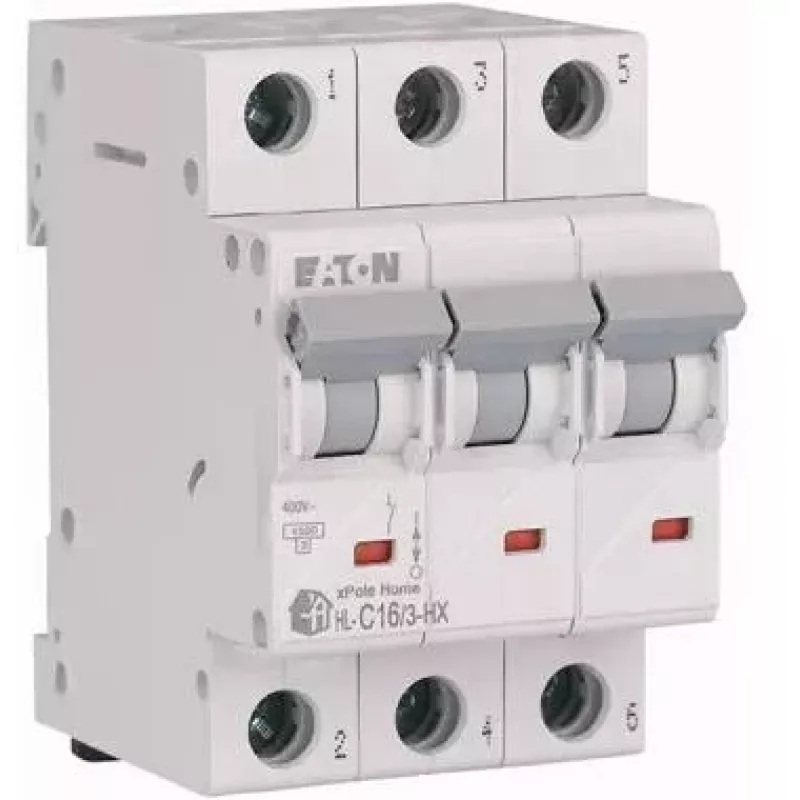

EATON HN-C16/3 Interruptor automático 16A 3 polos 6kA Tipo C

The EATON HN-C16/3 is a high-quality miniature circuit breaker (MCB) from the xPole Home series, designed for reliable overcurrent protection in residential and commercial electrical installations. With a rated current of 16A and 3-pole configuration, this MCB ensures safe operation and protection against short circuits and overloads.

Advantages

Type C tripping characteristic provides optimal protection for inductive loads such as motors and transformers. The 6kA short-circuit breaking capacity ensures robust performance under fault conditions. Compact 3-module design (52.5mm) saves space on DIN rail. Screw terminals allow secure and easy wiring.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Industrial control cabinets
• Protection of lighting, socket outlets, and small appliances

Key specifications

• Rated current: 16 A
• Number of poles: 3
• Tripping characteristic: Type C
• Rated voltage: 400 V AC
• Short-circuit breaking capacity: 6 kA
• Mounting: DIN rail (EN 60715)
• Module width: 3 modules (52.5 mm)
• Frequency: 50/60 Hz
• Energy limiting class: 3
• Electrical endurance: ≥ 10,000 cycles
• Mechanical endurance: ≥ 20,000 cycles
• Terminal capacity (solid): 1 - 25 mm²
• Terminal capacity (flexible): 1 - 16 mm²
• Protection degree: IP40 (enclosure), IP20 (terminals)
• Ambient temperature: -25 to +50 °C
• Standards: IEC/EN 60898-1

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. Always verify that the MCB rating matches the circuit requirements. Use with compatible EATON xPole Home accessories for enhanced functionality.
