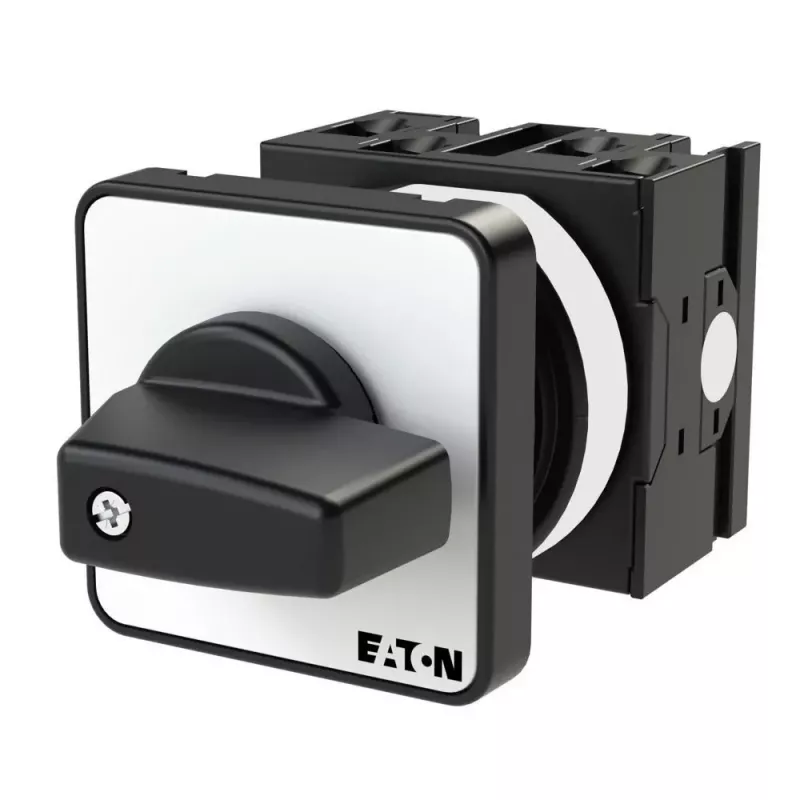

EATON interruptor de control T0-2-15452/E (091062) – 3 polos ON-OFF, 20 A, montaje frontal, IP65

Control switch for manual ON-OFF switching of three-phase circuits up to 20 A. The T0-2-15452/E offers a 90° switching angle and front mounting with IP65 protection, making it suitable for industrial control panels and machine control.

Advantages

Robust construction with a red handle and yellow front plate for clear status indication. Screw terminals provide secure wiring, and the switch supports a rated operational voltage of 690 V AC.

Suitable for

• Motor control circuits
• Industrial control panels
• Machine tools

Key specifications

• Switch type: Control switch / cam switch
• Function: ON-OFF
• Number of poles: 3
• Rated operational current: 20 A (AC-21A, 400 V)
• Rated operational voltage: 690 V AC
• Rated insulation voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Rated power: 5.5 kW (AC-23A, 400 V)
• Switching angle: 90°
• Number of switching positions: 2 (ON/OFF)
• Mounting type: Front mounting (central mounting)
• Degree of protection: IP65 (front), IP20 (rear)
• Terminal type: Screw terminals
• Handle colour: Red
• Front plate colour: Yellow
• Ambient operating temperature: -25 to +50 °C
• Short-circuit current: 0.32 kA (1 s)
• Mechanical life: >0.5 x 10^6 operations

Recommendations

For reliable manual control in industrial environments, the EATON T0-2-15452/E combines high switching capacity with a clear visual indication.
