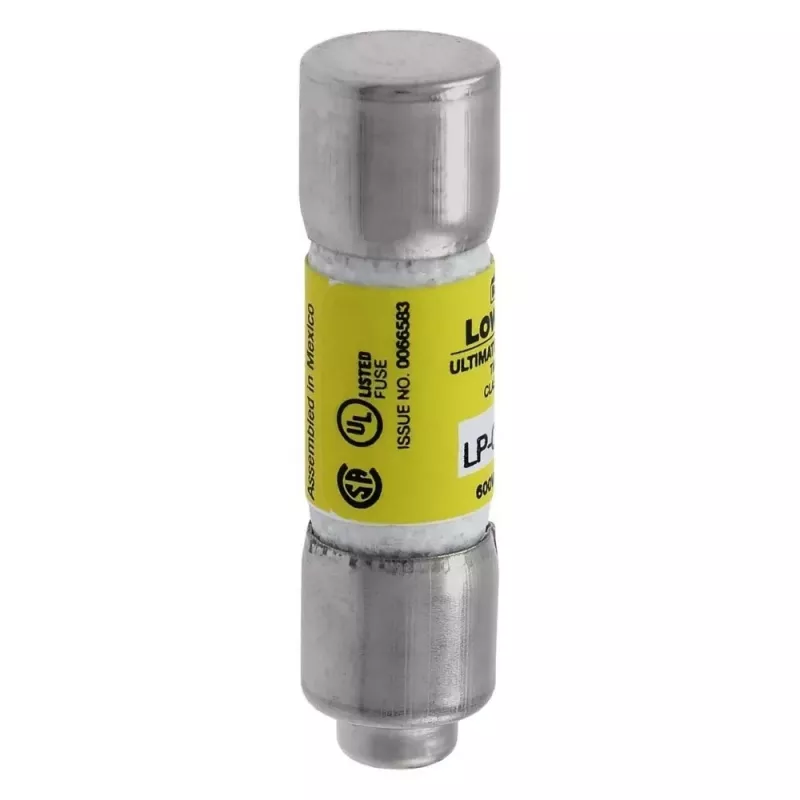

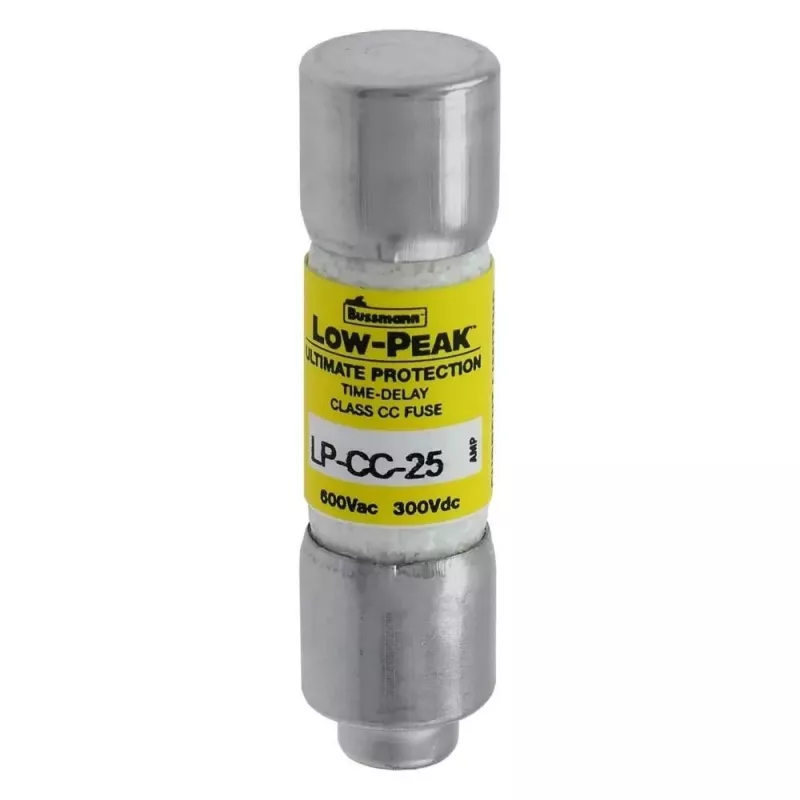

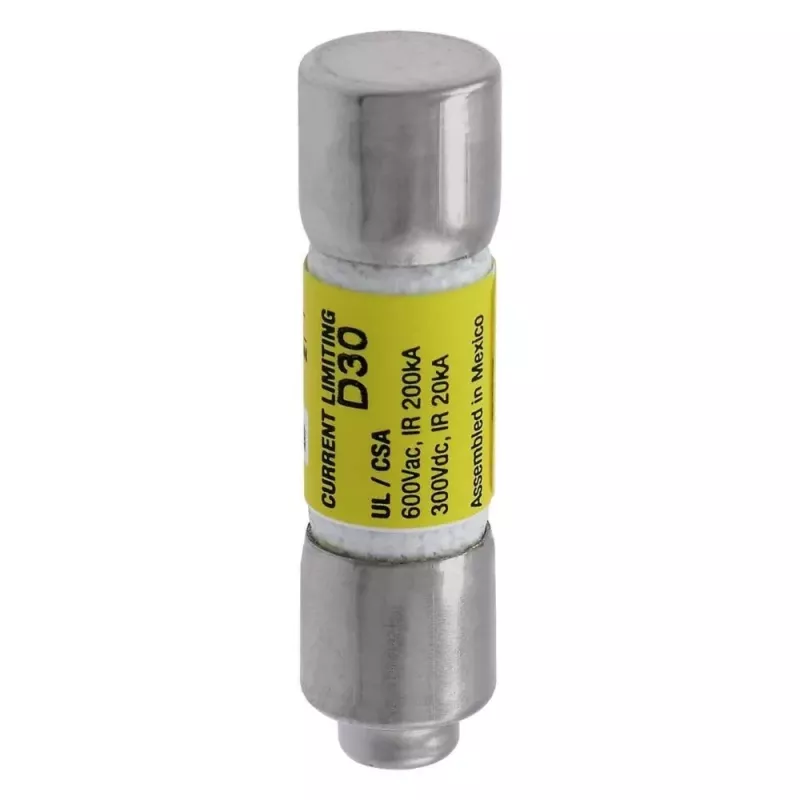

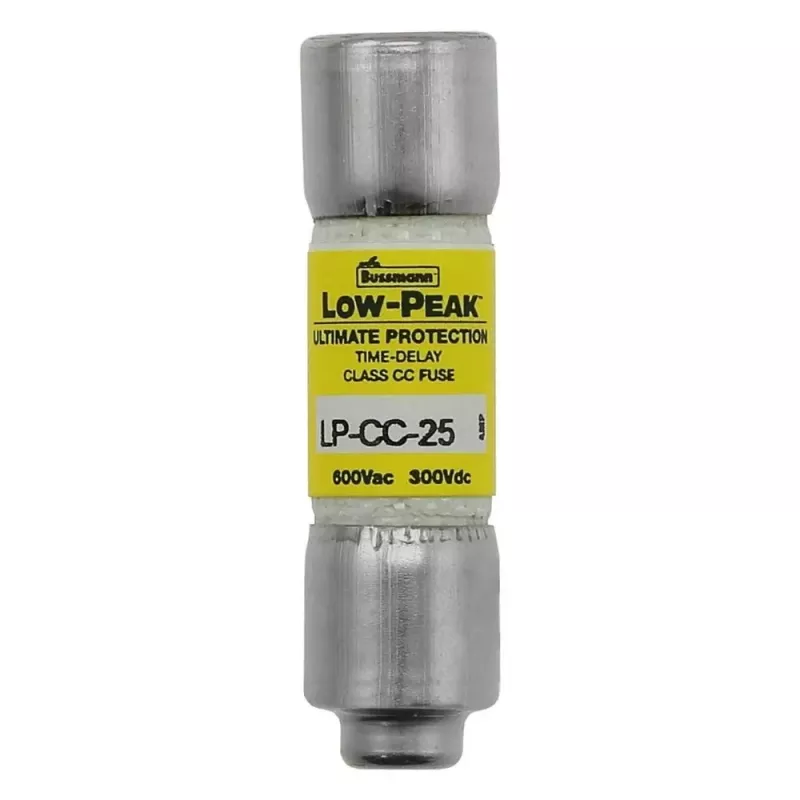

Eaton LP-CC-25 Fusible Class CC de 25A 600V retardado, pack de 10

Class CC time-delay fuse rated 25 A and 600 V AC/DC, supplied in a pack of 10. The 10 mm × 38 mm cylindrical body fits standard Class CC fuse holders and clips, providing overcurrent protection for control circuits, lighting, small motors, and transformers.

Advantages

Time-delay characteristic handles inrush currents without nuisance opening. High interrupting rating of 200 kA RMS symmetrical ensures safe operation under fault conditions. Melamine body offers mechanical strength and thermal stability. UL Listed and CSA Certified.

Suitable for

• Control circuit protection
• Lighting circuits
• Small motor branch circuits
• Transformer protection

Key specifications

• Current rating: 25 A
• Voltage rating: 600 V AC/DC
• Fuse type: Time-delay (slow-blow)
• Class: CC
• Body dimensions: 10 mm diameter × 38 mm length
• Interrupting rating: 200 kA RMS symmetrical
• Body material: Melamine
• Mounting: Fuse clip or holder
• Quantity per pack: 10 fuses

Recommendations

Select this fuse for circuits where inrush currents are present and a compact, high-interrupting rating fuse is required. Verify holder compatibility with 10×38 mm Class CC fuses.
