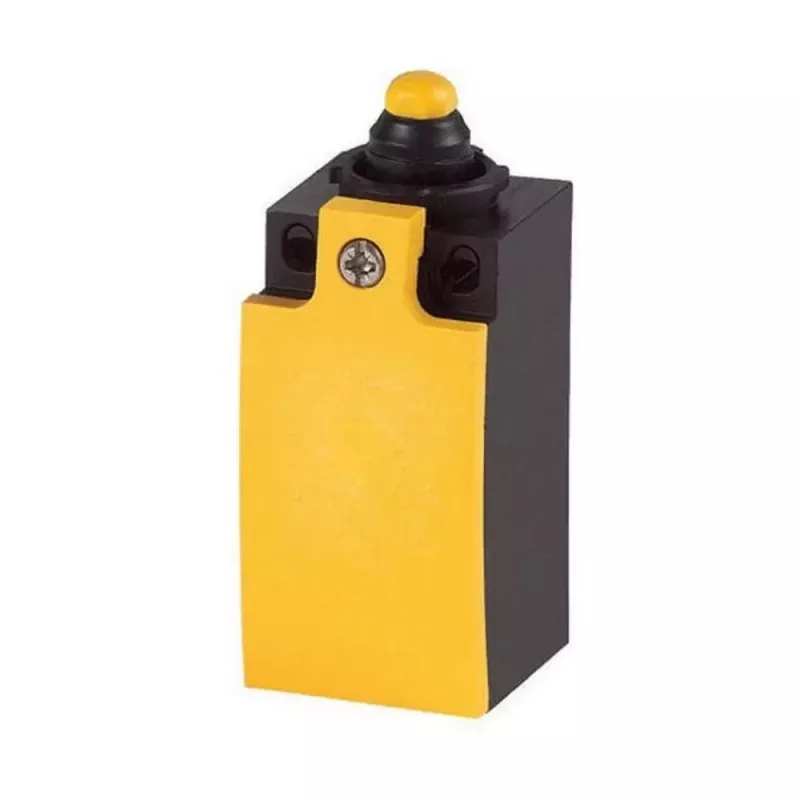

Eaton LS-11D interruptor de posición, amarillo, 1NO/1NC, conmutación brusca, IP66/IP67 266114

Position switch with snap-action mechanism and plunger actuator, offering reliable limit switching in industrial control circuits. The Eaton LS-11D provides one normally open and one normally closed contact, ensuring flexible integration into automation systems.

Advantages

The switch is housed in insulated yellow plastic, delivering high visibility and durability. With IP66 and IP67 protection, it withstands dust and temporary immersion, making it suitable for demanding environments. The snap-action principle ensures fast, consistent switching with minimal contact bounce.

Suitable for

• Position detection on machine tools and conveyors
• Limit switching in hoists and cranes
• Safety interlock circuits
• Industrial automation panels

Key specifications

• Actuator: Plunger
• Contacts: 1 NO + 1 NC
• Switching principle: Snap-action
• Rated operational current: 6 A at 230 V AC (AC-15), 0.3 A at 230 V DC (DC-13)
• Rated operational voltage: up to 500 V AC / 250 V DC
• Rated impulse withstand voltage: 6 kV
• Rated insulation voltage: 500 V
• Connection: Screw terminals
• Cable entry: 1 x M20
• Operating temperature: -25 to +70 °C
• Mechanical life: 10 million operations
• Electrical life: 5 million operations

Recommendations

For precise position feedback in harsh industrial environments, the Eaton LS-11D offers robust construction and reliable switching performance.
