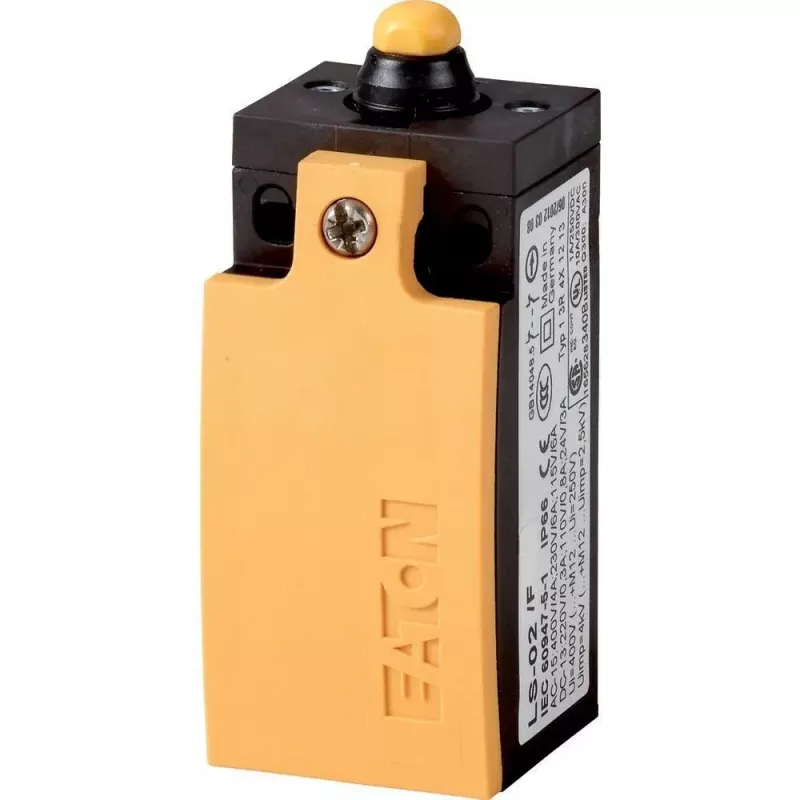

Eaton LS-Titan Final de carrera LS-S11/F, accionador de émbolo, 1NO/1NC, 400 V AC, 4 A, IP67, entrada de cable M20 106784

In automated production lines and conveyor systems, the Eaton LS-S11/F limit switch provides reliable position detection for machine guards, sliding panels, and moving parts. Its plunger actuator with momentary action returns to rest after actuation, making it suitable for end-of-travel sensing in industrial machinery.

Key specifications

• Actuator type: Plunger, momentary (spring-return)
• Contact configuration: 1 normally open (NO) / 1 normally closed (NC)
• Switching principle: Snap-action
• Rated operational voltage: 400 V AC
• Rated operational current: 4 A
• Ingress protection: IP67
• Housing material: Thermoplastic
• Connection type: Screw terminals
• Cable entry: 1 x M20 x 1.5
• Operating temperature range: -25 to +70 °C
• Mechanical life: > 10 million operations
• Electrical life: > 0.1 million operations
• Mounting type: Surface mount (2 x M4 screws)
• Approvals: CE, UL, CSA, CCC

Why choose it

The LS-Titan series combines robust construction with precise switching, ensuring dependable operation in harsh industrial environments. The IP67 rating protects against dust and temporary immersion, making it suitable for washdown areas.

Ideal use cases

• Machine tool position sensing
• Conveyor belt end stops
• Safety guard monitoring
• Packaging machinery

Good to know

The switch is designed for surface mounting with two M4 screws and connects via screw terminals through an M20 cable gland. It is part of Eaton's LS-Titan series, known for its durability and long mechanical life.
