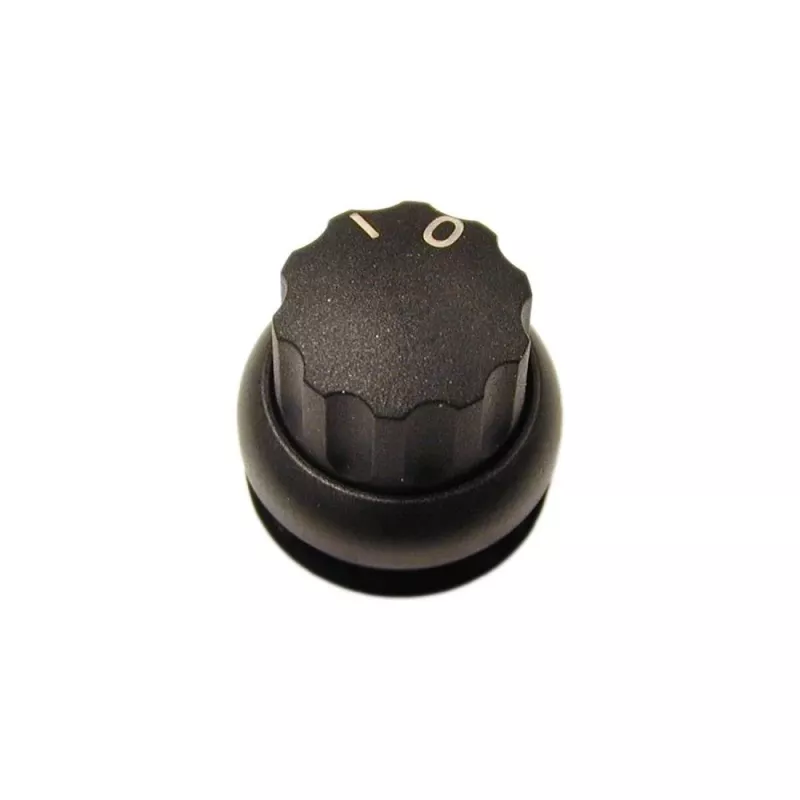

Eaton M22 Accionamiento de selector, 2 posiciones, enclavado, botón giratorio, negro, 22,5 mm 216856

The Eaton M22S-WR selector switch actuator stands out with its robust rotary knob and maintained switching action, providing a clear tactile indication of the selected position. Designed for 22.5 mm panel cutouts, it integrates seamlessly into control circuits where reliable manual operation is required.

Highlights

• 2-position maintained (latching) operation
• Rotary knob actuator with black knob and black front ring
• Mounting diameter: 22.5 mm
• Front protection: IP66, IP67, IP69K
• Operating temperature: -25 to +70 °C
• Mechanical life: > 0.5 million operations

In daily use

This actuator is compatible with Eaton M22 contact blocks and lamp holders, allowing versatile configuration for various control tasks. Its non-illuminated design keeps the front panel clean, while the robust construction ensures long-term reliability in industrial environments.

Full specifications

• Product type: Selector switch actuator
• Series: Eaton M22
• Number of positions: 2
• Switching action: Maintained (latching)
• Actuator type: Rotary knob
• Knob color: Black
• Front ring color: Black
• Front ring material: Plastic
• Mounting diameter: 22.5 mm
• Degree of protection (front): IP66, IP67, IP69K
• Operating temperature: -25 to +70 °C
• Standards: IEC/EN 60947-5-1
• Compatibility: Eaton M22 contact blocks, M22 lamp holders
• Illumination: Non-illuminated
• Mechanical life: > 0.5 million operations
• Approvals: CE, UL, CSA, CCC, EAC, KEMA

Final note

A reliable and durable selector switch actuator for demanding industrial control applications.
