EATON M22-AMC-AM198271 elemento frontal acústico compacto, IP40, casquillo BA9s, negro

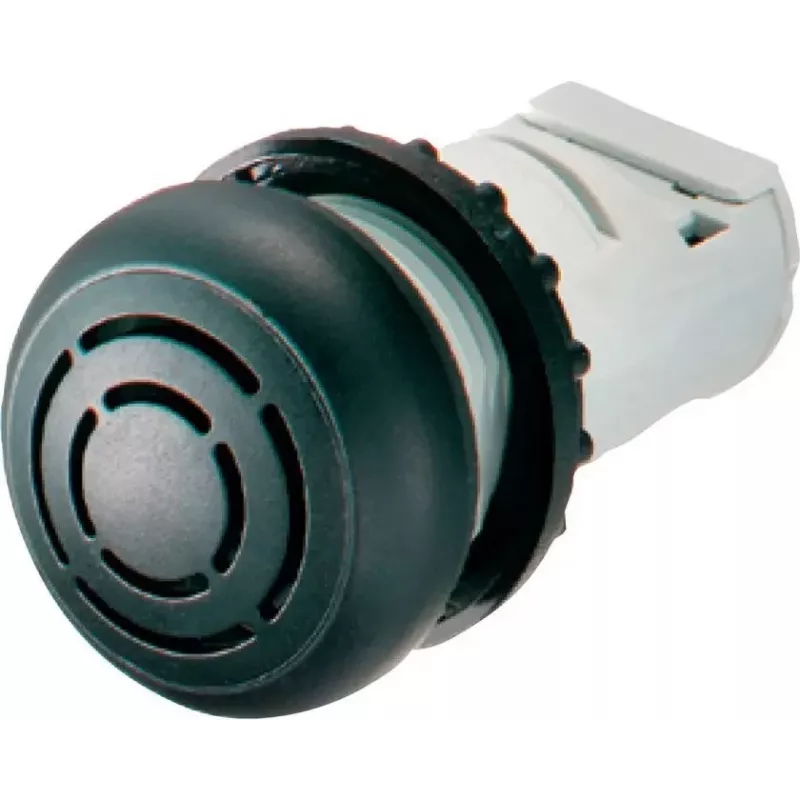

In control panels and machine interfaces, a reliable acoustic signal is essential for alerting operators to status changes or alarms. The EATON M22-AMC-AM198271 is a compact acoustic indicator front element designed to house a BA9s-base acoustic element, providing a clean, professional mounting solution for audible signalling in 22.5 mm panel cutouts.

Who is it for

Panel builders, machine OEMs, and maintenance technicians who need a front-mount acoustic indicator that integrates seamlessly with the Eaton Moeller M22 series. It suits applications where space is limited and a compact, front-accessible design is required.

Main features

• Compact front element for acoustic signalling devices
• Compatible with BA9s base acoustic elements
• 22.5 mm mounting diameter for standard panel cutouts
• Front protection degree IP40
• Black bezel made of high-quality plastic
• Part of the Eaton Moeller M22 modular series

Specifications

• Product type: Acoustic indicator front element
• Series: Eaton Moeller M22
• Mounting diameter: 22.5 mm
• Protection degree (front): IP40
• Design: Compact
• Acoustic element compatibility: BA9s base
• Bezel colour: Black
• Material: High-quality plastic
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Mounting type: Panel mount

Tips

Combine this front element with an appropriate BA9s acoustic element from the M22 series to complete the signalling device. Ensure the panel cutout is 22.5 mm and that the rear side has sufficient clearance for the acoustic element and wiring.
