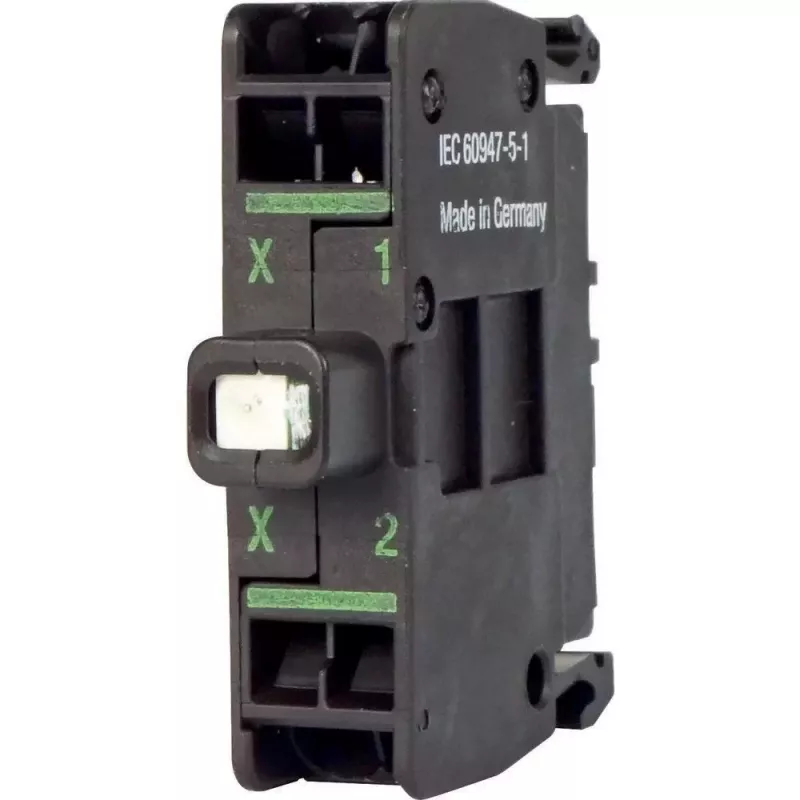

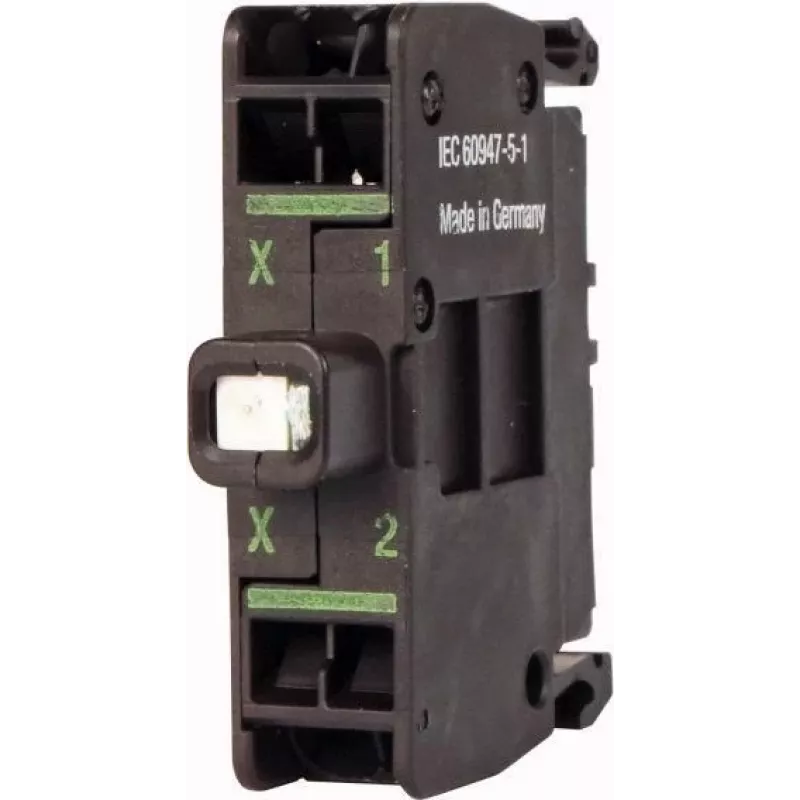

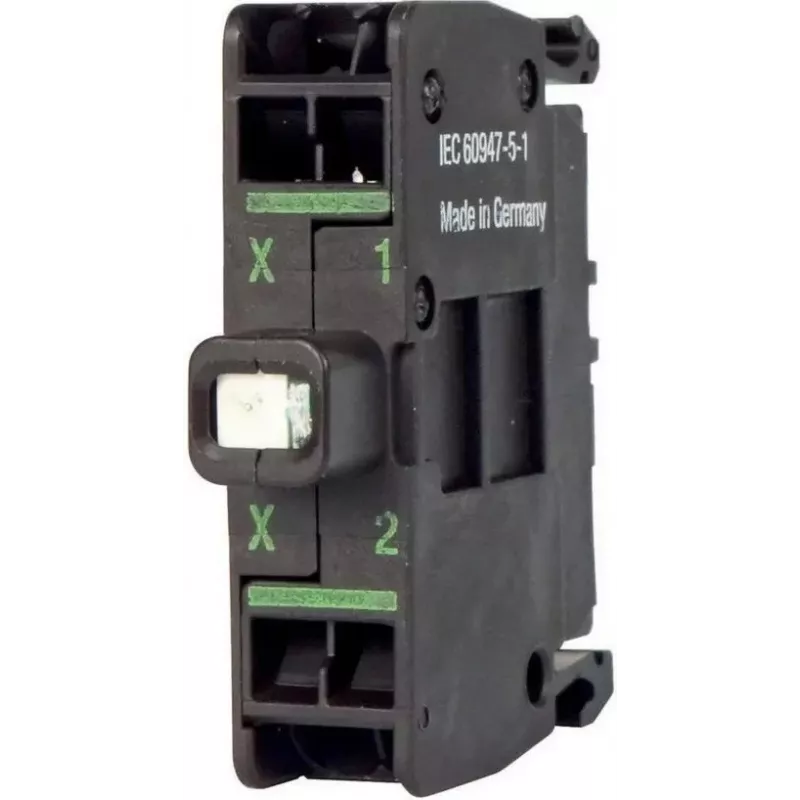

Eaton M22-CLEDC-B elemento LED, azul, 24 V AC/DC 218062

Control panel indicators often fail just when operators need them most. The Eaton M22-CLEDC-B LED element solves this by providing a long-lasting, energy-efficient blue light source for your M22 series pushbuttons and indicator lights, ensuring clear status signaling in industrial environments.

Who is it for

This LED element is intended for panel builders, maintenance technicians, and automation engineers who use Eaton's RMQ-Titan M22 modular control devices. It is suitable for new installations and as a direct replacement for worn-out incandescent or LED elements.

Main features

• Blue LED light element for clear visual indication.
• Operates on 24 V AC/DC, compatible with common control circuits.
• Long service life of over 100,000 hours reduces maintenance frequency.
• Low power consumption of less than 1 W contributes to energy efficiency.
• Rear panel mounting with screw terminals for secure connection.
• Wide operating temperature range from -25 to +70 °C for demanding environments.

Specifications

• Product type: LED element
• Light colour: Blue
• Supply voltage: 24 V AC/DC
• Rated operational current: 15 mA
• Power consumption: < 1 W
• Life expectancy: > 100,000 hours
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Housing material: High-grade plastic
• Terminal capacity (solid): 1 x (0.5-2.5 mm²)
• Terminal capacity (stranded): 2 x (0.5-1.5 mm²)
• Shock resistance: 15 g

Tips

When installing, ensure the supply voltage matches 24 V AC/DC to avoid damage. Use appropriate wire sizes as per terminal capacity for reliable connections. For replacement, verify compatibility with your M22 actuator and contact block configuration.
