Eaton M22-CLEDC-R elemento LED, rojo, 24V AC/DC 216573

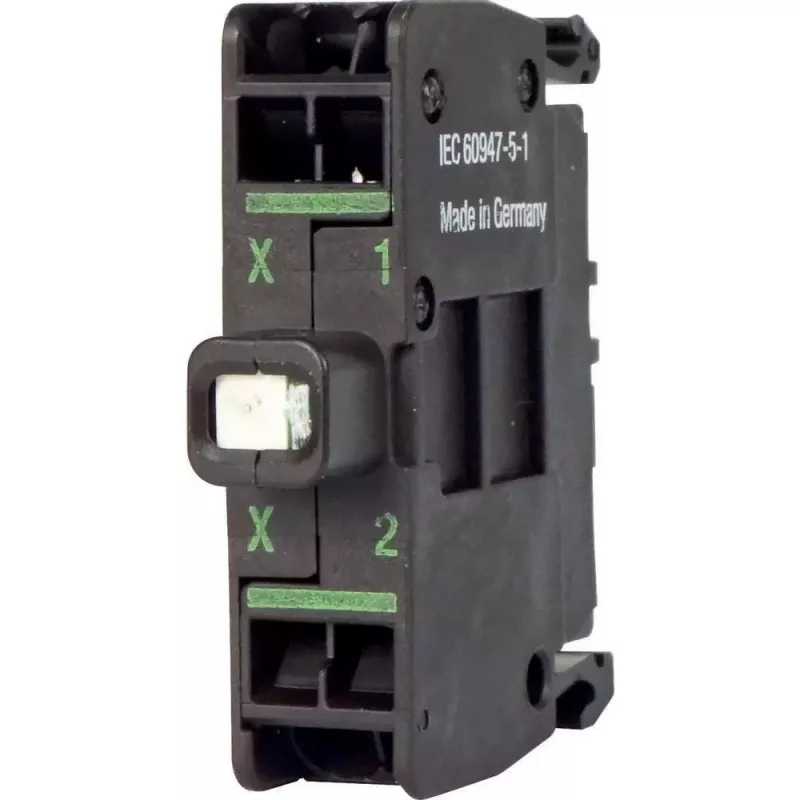

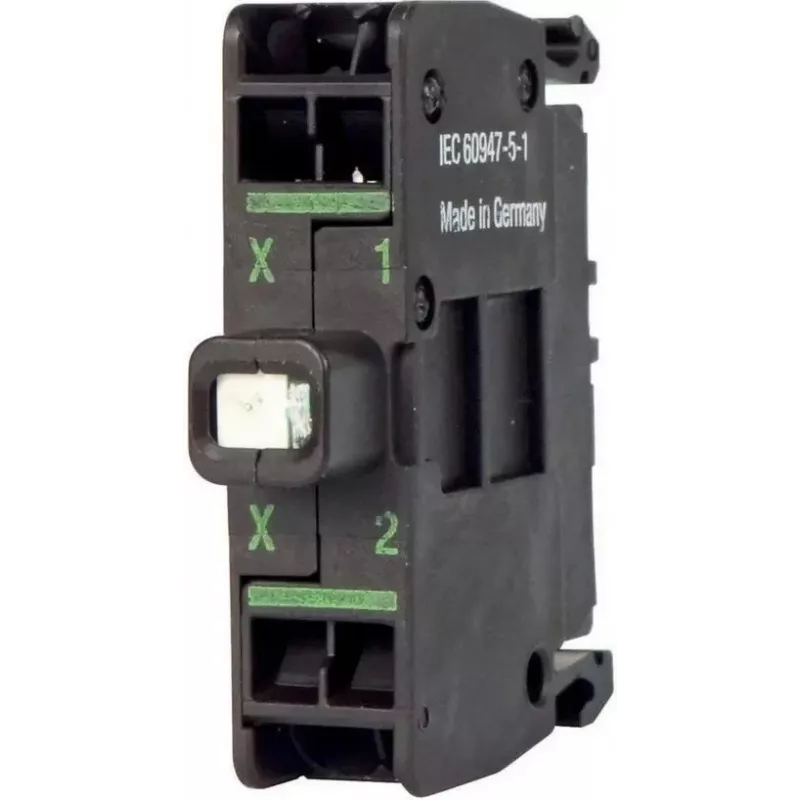

The Eaton M22-CLEDC-R is a dedicated LED element engineered for the M22 series of control devices. Unlike generic panel indicators that require separate holders and wiring, this element integrates directly into compatible Eaton pushbuttons and pilot lights, ensuring a clean, secure fit and consistent illumination. Its red LED provides clear status indication in industrial control panels and machinery.

Highlights

• Red LED illumination for clear status signaling
• Operates on 24V AC/DC, suitable for common industrial control circuits
• Designed for rear mounting in Eaton M22 control devices
• Screw terminal connection for reliable wiring
• Long lifespan of over 100,000 hours reduces maintenance

In daily use

Installation is straightforward: insert the LED element into the rear of a compatible M22 actuator and secure it. The screw terminals accept conductors from 0.5 to 2.5 mm² (or two conductors up to 1.5 mm²), allowing flexible wiring options. The element's low power consumption (less than 1 W) contributes to energy efficiency in control panels. With an operating temperature range of -25 to +70 °C, it performs reliably in demanding environments.

Full specifications

• Product type: LED element
• Series: Eaton M22
• Light source: LED
• Illumination colour: Red
• Operating voltage: 24 V AC/DC
• Current type: AC/DC
• Connection type: Screw terminal
• Mounting type: Rear mounting
• Rated insulation voltage (Ui): 600 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Power consumption: < 1 W
• Lifespan: > 100,000 hours
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Protection degree (terminals): IP20
• Terminal capacity: 1 x (0.5 - 2.5 mm²) or 2 x (0.5 - 1.5 mm²)
• Compatibility: Eaton M22 control devices
• Approvals: CE, UL, CSA, CCC

Final note

The M22-CLEDC-R is a reliable choice for integrating red LED indication into Eaton M22 control systems, offering long life and straightforward installation.
