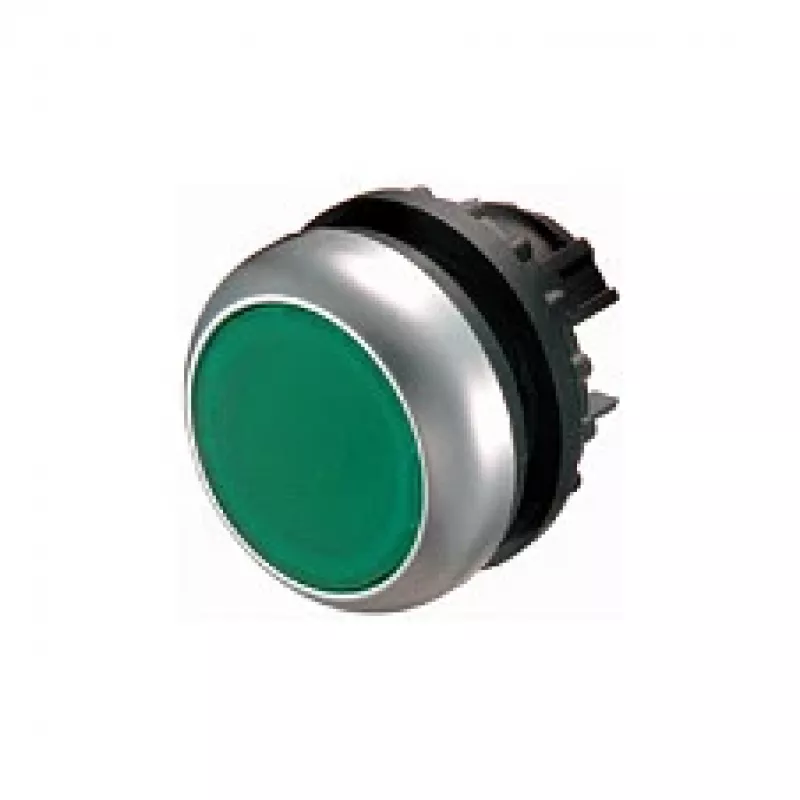

Eaton M22-DL-G Pulsador plano verde iluminado, momentáneo, 22,5 mm

The Eaton M22-DL-G stands apart from generic pushbutton actuators by combining a flat, low-profile design with integrated illumination capability in a robust 22.5 mm mounting format. This momentary pushbutton actuator is engineered for industrial control panels, machinery interfaces, and building automation systems where tactile feedback and visual status indication are essential. Unlike standard buttons, it features a green flat actuator that accepts a separate M22-LED element, allowing operators to see at a glance whether a circuit is active. The front bezel is made of durable plastic and provides an impressive IP66, IP67, and IP69K protection rating, making it suitable for washdown environments and harsh conditions. With a mechanical life exceeding 5 million operations, this actuator is built for long-term reliability in demanding applications.

Highlights

• Flat green actuator with momentary (push-to-make) switching action
• Illumination-ready: compatible with Eaton M22-LED light elements (sold separately)
• 22.5 mm mounting diameter fits standard industrial panel cutouts
• Front protection: IP66, IP67, IP69K; rear protection: IP20 with contact element
• Wide operating temperature range from -25 °C to +70 °C
• Mechanical durability: >5 million operations
• Complies with IEC/EN 60947 and VDE 0660 standards; RoHS compliant

In daily use

Install the M22-DL-G into any control panel with a 22.5 mm hole and pair it with an M22-K contact block and an M22-LED element for a complete illuminated pushbutton solution. The flat profile reduces accidental activation and is easy to clean, while the green color provides clear visual differentiation. The actuator's robust construction withstands frequent use and harsh cleaning agents, making it ideal for food processing, packaging machinery, and industrial automation. The momentary action ensures the circuit is only engaged while the button is pressed, enhancing safety and control precision.

Full specifications

• Series: M22
• Product type: Pushbutton actuator
• Actuator type: Flat button
• Switching action: Momentary (push-to-make)
• Button colour: Green
• Illumination capability: Yes (requires separate M22-LED element)
• Mounting diameter: 22.5 mm
• Front bezel material: Plastic
• Protection degree (front): IP66, IP67, IP69K
• Protection degree (rear): IP20 (with contact element)
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Mechanical durability: >5 million operations
• Standards compliance: IEC/EN 60947, VDE 0660
• RoHS status: Compliant
• Max. panel thickness: 6 mm
• Compatibility: Eaton M22-K contact blocks, Eaton M22-LED light elements

Final note

The Eaton M22-DL-G is a reliable and versatile pushbutton actuator that meets the demands of modern industrial control. Its combination of flat design, illumination readiness, and high protection ratings makes it a smart choice for engineers and panel builders seeking quality and durability.
