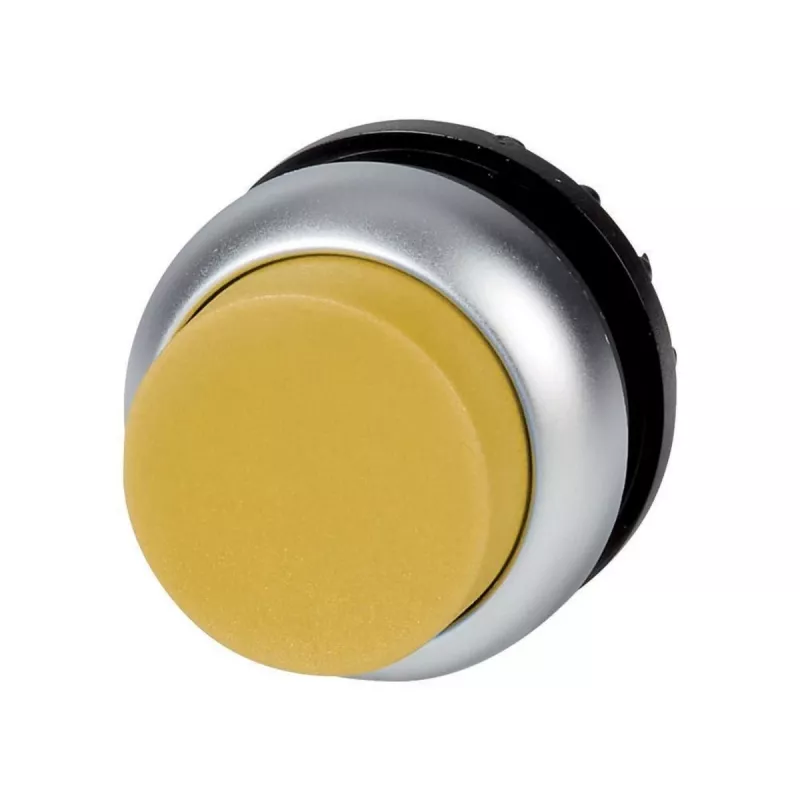

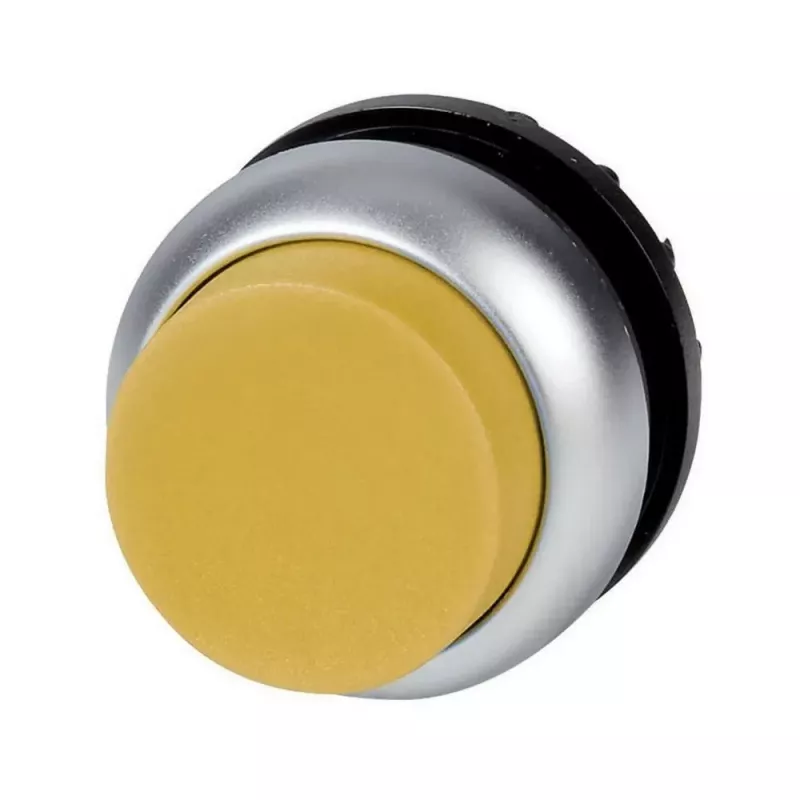

Eaton M22-DLH-Y accionamiento de pulsador iluminado, elevado, amarillo, liso 216971

With a mechanical durability exceeding 5 million operations, this Eaton M22 series illuminated pushbutton actuator is built for demanding industrial environments. The raised yellow actuator with blank legend provides clear visual indication and tactile operation.

Overview

The Eaton M22-DLH-Y is a momentary, spring-return pushbutton actuator designed for 22.5 mm mounting holes. It features a yellow actuator head and a titanium-coloured plastic front ring. The blank face allows custom labelling or use as a simple signal button. For illumination, a separate M22 LED element is required.

What stands out

• High mechanical durability: over 5 million operations
• Front protection: IP66, IP67, IP69K and NEMA 4X, 13
• Wide operating temperature range: -25 to +70 °C
• Compatible with Eaton M22 contact blocks and LED elements

Technical details

• Actuator type: Raised (high)
• Actuator colour: Yellow
• Legend: Blank (unmarked)
• Mounting diameter: 22.5 mm
• Operation: Momentary (spring-return)
• Illumination: Yes (requires separate LED element)
• Front ring material: Plastic
• Front ring colour: Titanium
• Standards: IEC/EN 60947-5-1, VDE 0660 Part 200

Our verdict

A reliable and durable illuminated pushbutton actuator for industrial control panels, offering excellent environmental protection and compatibility with the Eaton M22 modular system.
