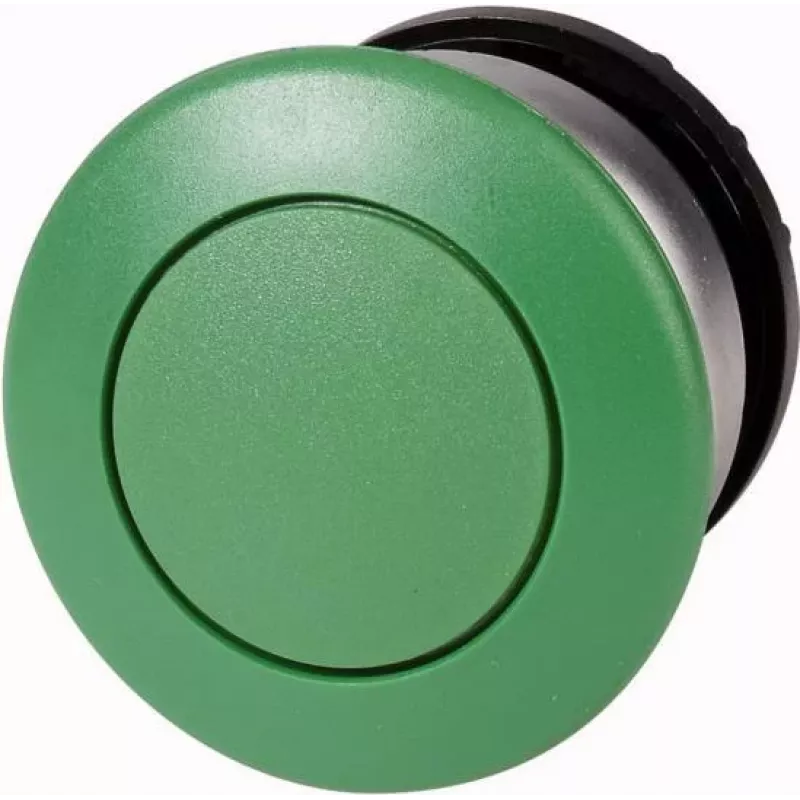

Eaton M22-DP-G Accionador de pulsador enrasado verde 216716

The Eaton M22-DP-G is a flush pushbutton actuator in green, engineered for industrial control panels where reliable momentary switching and a clean, low-profile appearance are essential. Unlike protruding pushbuttons, its flush design reduces accidental operation and simplifies panel cleaning, making it a preferred choice for machine builders and control system integrators.

Highlights

• Flush actuator style for a sleek panel surface
• Green button for clear start or confirmation functions
• Momentary operation with spring return
• Fits 22.5 mm panel cut-outs
• Compatible with Eaton M22 contact blocks and LED elements

In daily use

This actuator mounts directly into a standard 22.5 mm hole and accepts any M22 series contact block on the rear. The green colour is commonly used for start, on, or reset commands. The flush profile prevents snagging and makes the panel easier to wipe down in dusty or washdown environments.

Full specifications

• Product type: Pushbutton actuator
• Series: Eaton M22
• Actuator style: Flush
• Button colour: Green
• Operation type: Momentary (spring return)
• Mounting hole diameter: 22.5 mm
• Front protection rating: IP66, IP67, IP69K
• Rear protection rating: IP20 (with contact block)
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Mechanical durability: > 5 million operations
• Bezel material: Plastic
• Button material: Plastic
• Compatibility: M22 series contact blocks and LED elements
• Standards met: IEC/EN 60947, VDE 0660
• Certifications: UL, CSA, CCC, CE
• Illumination capability: Non-illuminated
• Number of actuating positions: 1
• Mounting type: Panel mount
• Environmental compliance: RoHS, REACH

Final note

The M22-DP-G is a robust, field-proven actuator that integrates seamlessly with the Eaton M22 modular system, offering flexibility for a wide range of control applications.
