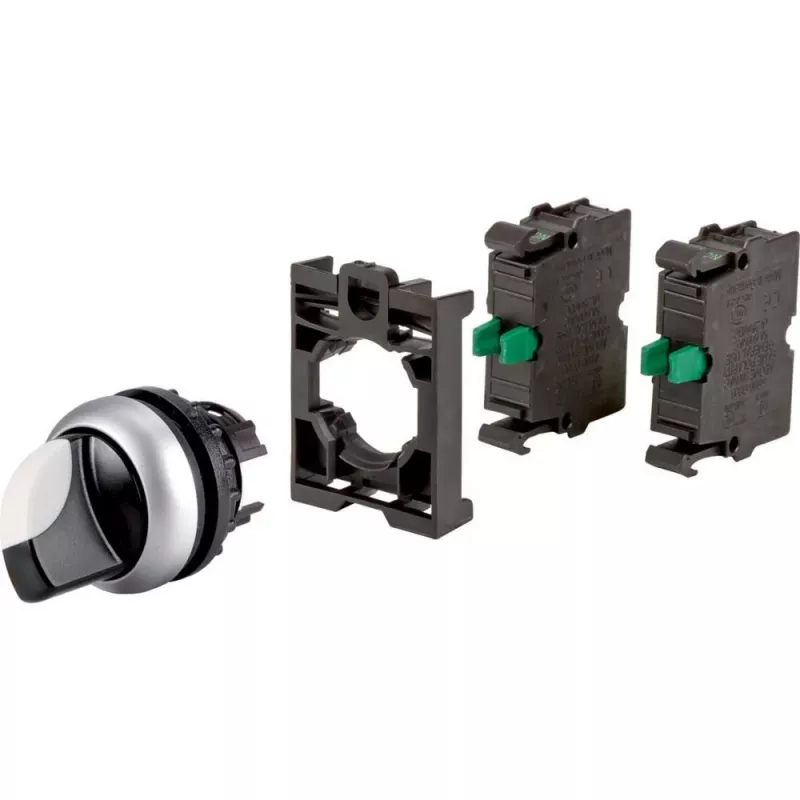

Eaton M22 interruptor de llave, 2 posiciones, enclavado, 2 contactos NA, negro 110922

Key-operated selector switch from the Eaton M22 series, offering reliable maintained switching with two positions and two normally open contacts. The switch is designed for industrial control applications, providing secure operation with key removal in position 0.

Advantages

Robust construction with a black plastic bezel and front protection ratings of IP66, IP67, and IP69K, ensuring resistance to dust, water, and high-pressure cleaning. The switch is suitable for demanding environments and meets NEMA 4X and 13 standards.

Suitable for

• Industrial control panels
• Machine tools
• Conveyor systems
• Access control applications

Key specifications

• Series: Eaton M22
• Number of positions: 2
• Switching action: Maintained (latching)
• Key removal position: Position 0
• Angle of throw: 90°
• Contact configuration: 2 normally open (NO)
• Bezel material: Plastic
• Bezel colour: Black
• Mounting diameter: 22.5 mm
• Connection type: Screw terminals
• Rated operational voltage: 500 V AC max
• Rated operational current: 6 A at 230 V AC (AC-15)
• Rated impulse withstand voltage: 6 kV
• Operating temperature range: -25 to +70 °C
• Key type: Standard
• Actuator colour: Black

Recommendations

Ideal for applications requiring secure, key-operated control with maintained switching action and high environmental protection.
