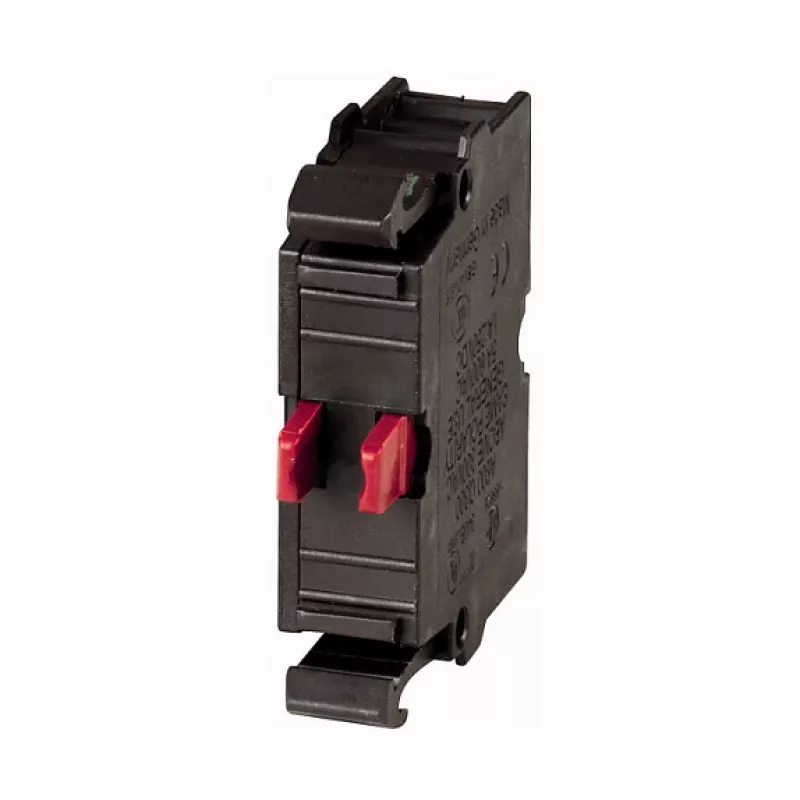

EATON M22-K01 Elemento de contacto de montaje frontal 1 contacto de apertura con conexiones por tornillo 216378

Engineered for demanding industrial control systems, the EATON M22-K01 contact element delivers a robust 6 A switching capacity at AC-15, 230 V, ensuring reliable performance in high-cycle applications. This front-mounting unit, with its 1 NC contact configuration and screw terminals, is a cornerstone for building durable control circuits.

Overview

The EATON M22-K01 (MPN 216378) is a front-mounting contact element designed for the modular Eaton M22 series. It provides a single normally closed (NC) contact, making it ideal for safety interlocks, emergency stops, and monitoring circuits. The screw terminal connection ensures secure and maintenance-friendly wiring, while the compact front-mount design simplifies panel assembly.

What stands out

• High reliability: Silver alloy contacts and a rated impulse withstand voltage of 6 kV guarantee long service life and robust performance.
• Flexible mounting: Front mounting allows for quick installation and integration into existing control panels.
• Wide temperature range: Operates from -25°C to +70°C, suitable for demanding industrial environments.
• Safety compliance: Meets IEC/EN 60947-5-1 and VDE 0660 standards, ensuring peace of mind.

Technical details

• Contact Configuration: 1 NC (Normally Closed)
• Mounting Type: Front Mounting
• Connection Type: Screw Terminals
• Rated Operational Current (AC-15, 230V): 6 A
• Rated Operational Current (DC-13, 24V): 3 A
• Rated Operational Voltage (AC): 500 V
• Rated Operational Voltage (DC): 250 V
• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Terminal Capacity (Solid): 1 x (0.5 - 2.5) mm² / 2 x (0.5 - 1.5) mm²
• Terminal Capacity (Stranded): 1 x (0.5 - 2.5) mm² / 2 x (0.5 - 1.5) mm²
• Degree of Protection (Terminals): IP20
• Operating Temperature Range: -25 to +70 °C
• Storage Temperature Range: -40 to +80 °C
• Standards Compliance: IEC/EN 60947-5-1, VDE 0660
• Compatibility Series: Eaton M22
• Contact Material: Silver Alloy
• Pollution Degree: 3
• Short-Circuit Protection: Fuse 10 A gG/gL

Our verdict

The EATON M22-K01 is a dependable choice for control circuits requiring a normally closed contact. Its robust electrical ratings, compliance with international standards, and ease of installation make it a valuable component for any industrial automation project.
