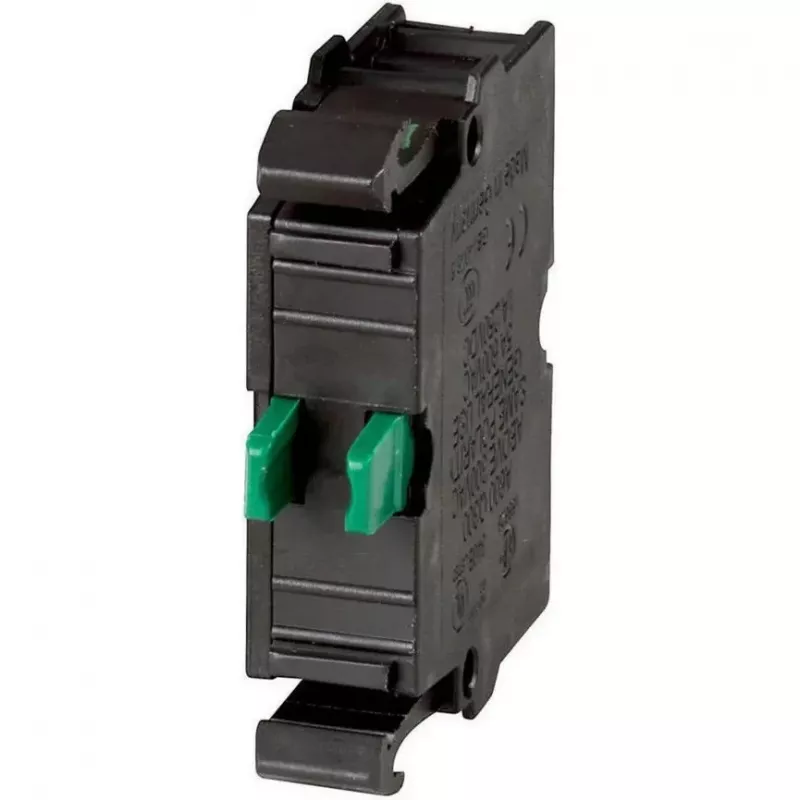

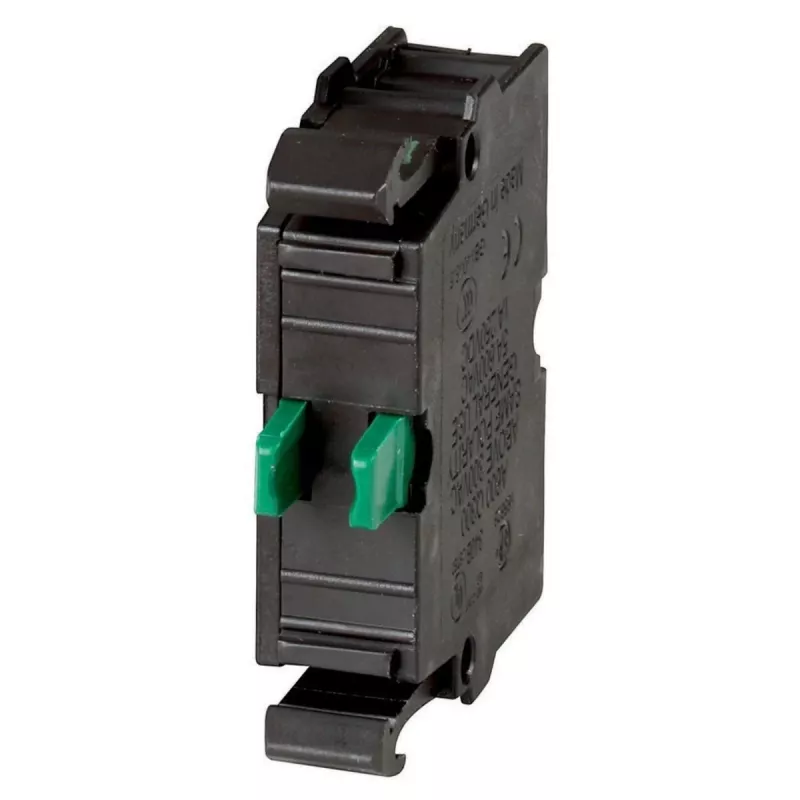

Eaton M22-K10P elemento de contacto, 1 NA, bornes de tornillo, montaje frontal 110835

Contact element for Eaton M22 series pushbuttons and pilot devices, providing one normally open (NO) contact for reliable switching in control circuits. The M22-K10P is a front-mounting element with screw terminals, suitable for use in industrial control panels and machinery.

Advantages

The M22-K10P offers a robust design with a mechanical life exceeding 5 million operations, ensuring long-term reliability in demanding applications. Its silver alloy contacts provide excellent conductivity and resistance to wear. The screw terminals accept conductors from 0.5 to 2.5 mm², allowing flexible wiring options. The element is rated for operational voltages up to 500 V AC and 220 V DC, with currents up to 6 A at 230 V AC and 3 A at 24 V DC, making it versatile for various control tasks.

Suitable for

• Industrial control panels
• Machinery and equipment control circuits
• Pushbutton and indicator light assemblies
• Automation systems requiring reliable switching

Key specifications

• Contact configuration: 1 normally open (NO)
• Mounting type: front mounting
• Connection type: screw terminals
• Rated operational voltage: up to 500 V AC, 220 V DC
• Rated operational current: 6 A at 230 V AC, 3 A at 24 V DC
• Terminal capacity: 1 x (0.5 - 2.5) mm² or 2 x (0.5 - 1.5) mm²
• Degree of protection (terminals): IP20
• Operating temperature range: -25 to +70 °C
• Mechanical life: > 5 million operations
• Electrical life: > 0.5 million operations
• Contact material: silver alloy (AgNi)

Recommendations

For use with Eaton M22 series actuators and holders. Ensure proper wiring according to terminal capacity and voltage ratings. Suitable for front panel mounting in industrial environments.
