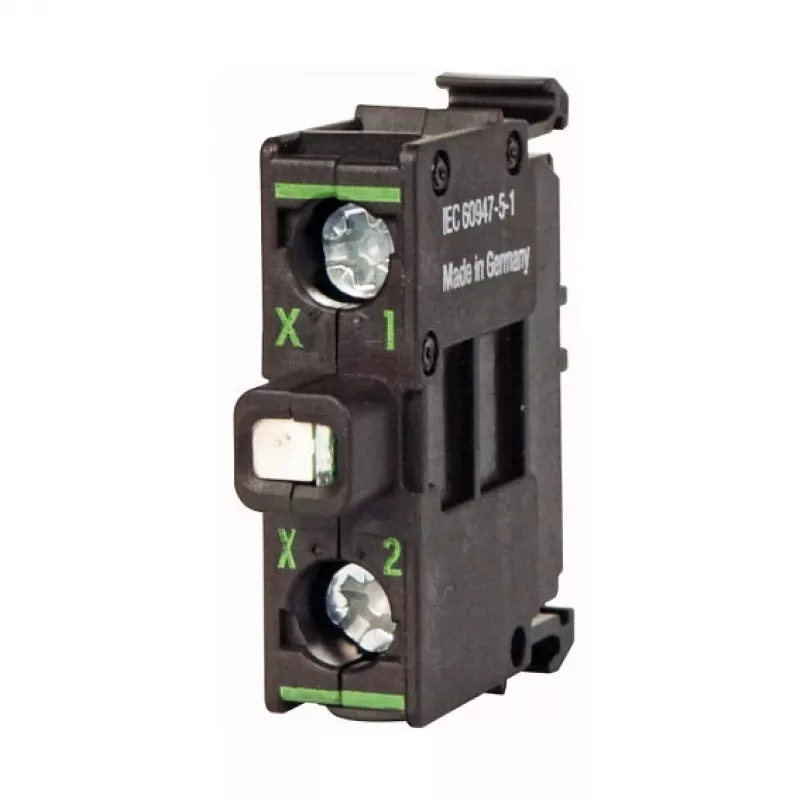

Eaton M22-LEDC230-G Elemento luminoso LED verde, 230 V AC, conexión por tornillo, negro, IP66

This Eaton M22-LEDC230-G pilot light element provides a clear green LED indication for machinery and control panels, eliminating guesswork and improving safety by showing equipment status at a glance. Its robust construction and long-lasting LED make it a dependable choice for any industrial environment.

Who is it for

Designed for electrical engineers, panel builders, and maintenance professionals who need a reliable visual indicator. It integrates seamlessly with Eaton M22 control devices, ensuring a perfect fit and simple installation in new or existing systems.

Main features

• Bright green LED with a service life of 100,000 hours reduces maintenance and downtime.
• Operates across a wide voltage range of 85–264 V AC, making it suitable for various supply voltages.
• Screw terminals allow for quick and secure wiring without special tools.
• IP66 front protection when installed prevents dust and water ingress in harsh environments.
• CE, UL, and CSA certifications guarantee compliance with international standards.
• Compact black plastic housing fits seamlessly into M22 series control panels.

Specifications

• Series: Eaton M22
• Light Source: LED
• Light Colour: Green
• Supply Voltage: 230 V AC (85–264 V AC)
• Current Consumption: 5-10 mA
• Mounting Type: Rear
• Connection: Screw terminals (2 terminals)
• Terminal Capacity: 1 x (0.5-2.5 mm²) / 2 x (0.5-1.5 mm²)
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -40 to +80 °C
• Protection Rating: IP66 front, IP20 rear
• Certifications: CE, UL, CSA
• Housing Material: Plastic
• Housing Colour: Black
• Compatibility: Eaton M22 Control Devices

Tips

For optimal performance, ensure the light element is correctly installed with the supplied seal to achieve the rated IP66 protection. Always verify the voltage range and wiring before energizing the circuit. This unit is intended for indoor control panel use; protect the rear from dust and moisture.
