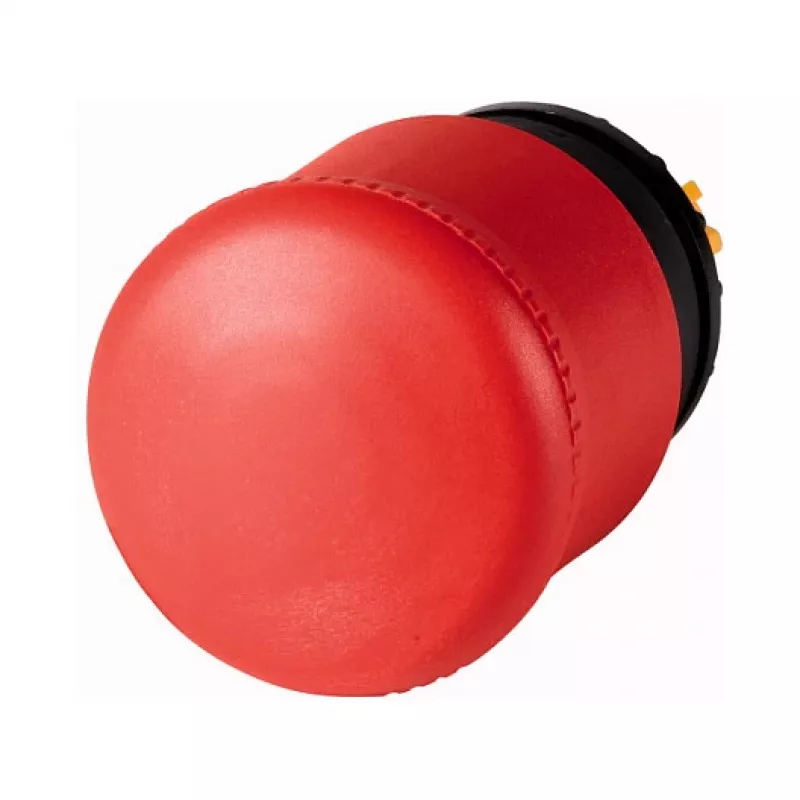

EATON M22-PV Pulsador de parada de emergencia, pulsador de seta 38 mm, desbloqueo por tracción, sin iluminación, rojo/amarillo

Emergency stop pushbutton with a 38 mm mushroom head and pull-to-release mechanism, delivering reliable machine safeguarding in a compact 22.5 mm panel-mount design. The red actuator on a yellow background ensures immediate recognition, while the non-illuminated construction simplifies integration into safety circuits.

Advantages

The M22-PV offers robust protection with IP66, IP67, and IP69K ratings on the front, making it suitable for washdown environments. Its mechanical durability exceeds 100,000 operations, ensuring long service life. The pull-to-release function prevents accidental resets, enhancing operator safety.

Suitable for

• Industrial control panels and machinery
• Conveyor systems and packaging equipment
• Food and beverage processing lines
• Harsh environments requiring high ingress protection

Key specifications

• Actuator diameter: 38 mm
• Mounting hole diameter: 22.5 mm
• Release mechanism: pull-to-release
• Illumination: non-illuminated
• Front protection: IP66, IP67, IP69K
• Operating temperature: -25 to +70 °C
• Standards: IEC/EN 60947-5-1, VDE 0660 Part 200, IEC/EN 60947-5-5

Recommendations

Pair with Eaton contact elements and accessories from the M22 series for a complete emergency stop solution. Ensure proper panel cutout and use recommended tightening torque for secure mounting.
