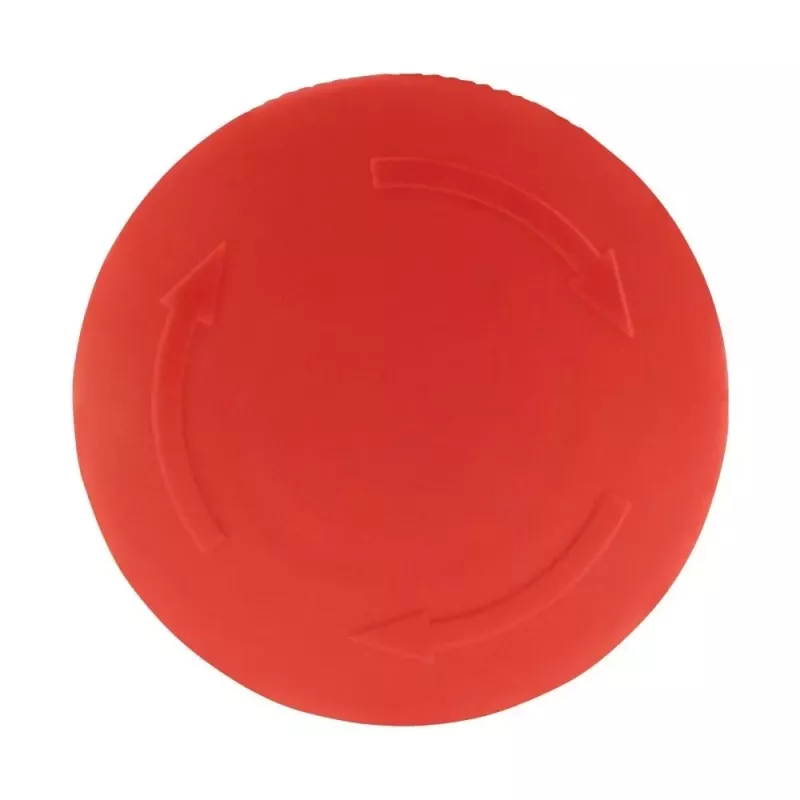

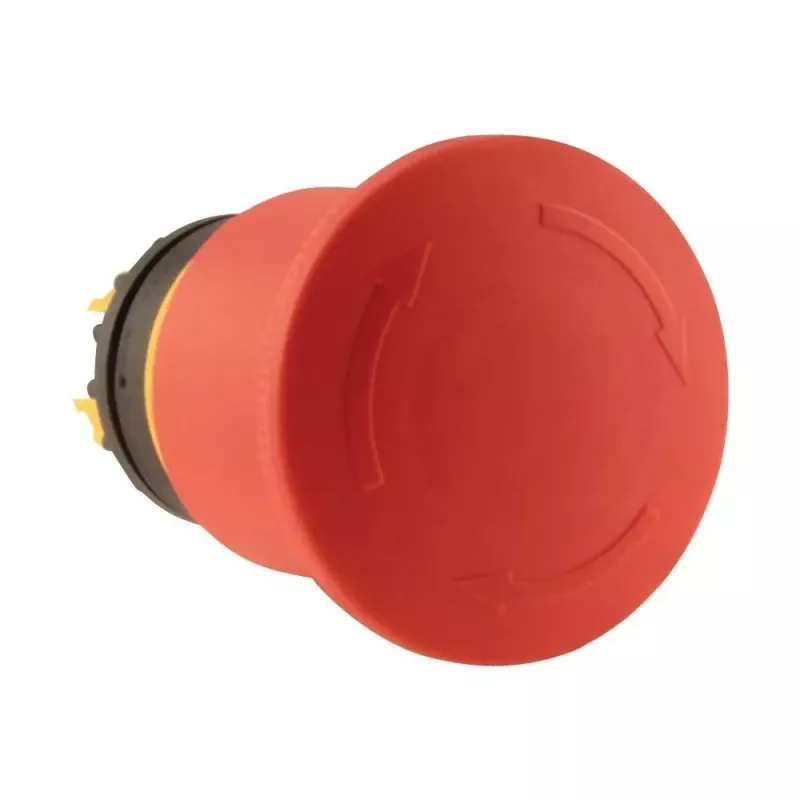

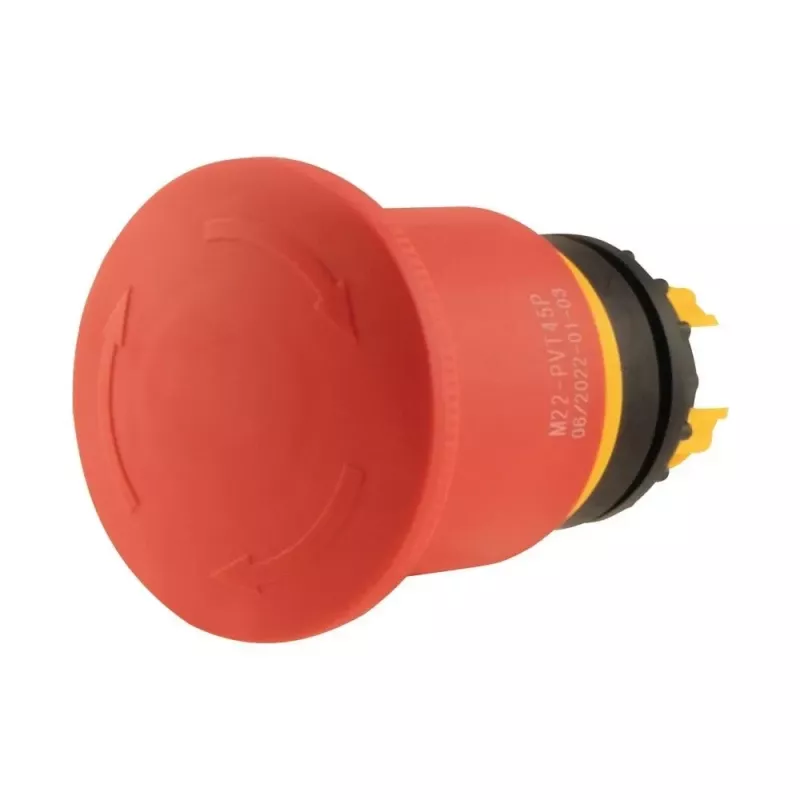

Eaton M22-PVT45P pulsador de parada de emergencia, seta, 45 mm, botón rojo, aro amarillo, desbloqueo por tracción 121462

Emergency stop pushbutton with 45 mm mushroom head actuator, designed for immediate and reliable machine shutdown in industrial environments. The pull-to-release mechanism prevents accidental restart, while the yellow bezel ensures high visibility.

Advantages

The M22-PVT45P offers robust construction with a front protection rating of IP66, IP67, and IP69K, making it suitable for harsh conditions. Its large red button and yellow collar provide clear identification, and the mechanical durability exceeds 100,000 operations.

Suitable for

• Industrial machinery and control panels
• Safety circuits requiring emergency stop functions
• Applications with high hygiene requirements (IP69K)

Key specifications

• Actuator type: Mushroom head, 45 mm diameter
• Reset method: Pull-to-release
• Mounting hole diameter: 22.5 mm
• Front protection: IP66, IP67, IP69K
• Operating temperature: -25 to +70 °C
• Mechanical durability: > 100,000 operations
• Compatible with Eaton M22 series contact blocks

Recommendations

For complete functionality, combine with an Eaton M22 contact block (not included). Ensure proper wiring and test the emergency stop function regularly.
