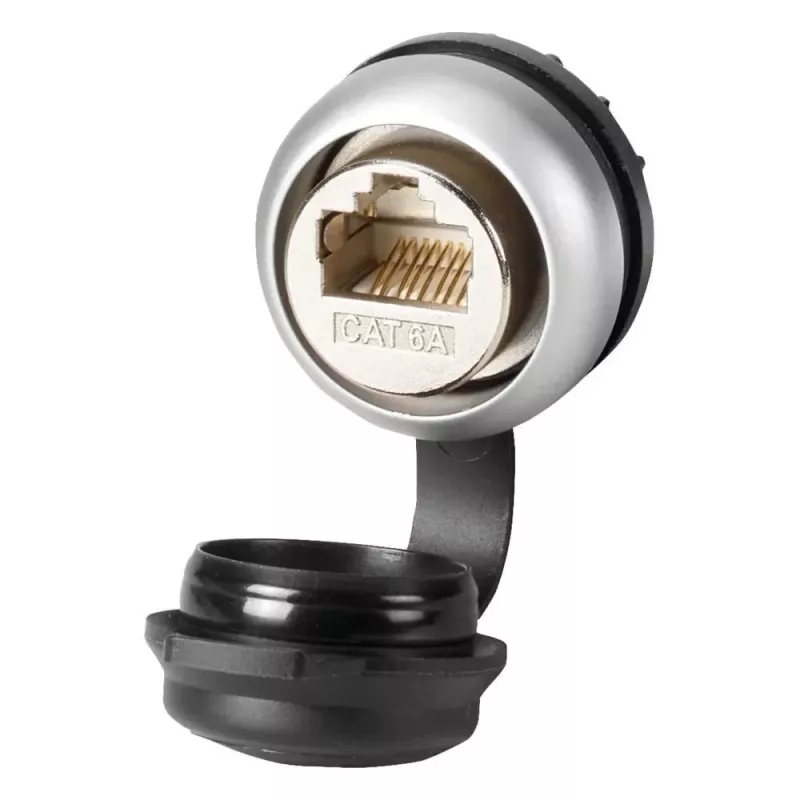

Eaton M22-RJ45-CAT6A RMQ Titan Interfaz de datos RJ45 para montaje en panel, Cat.6A, negro Y7-400122

Industrial control panel builders and automation engineers can integrate high-speed Ethernet connectivity directly into RMQ-Titan control units with this Eaton M22-RJ45-CAT6A panel mount jack. It provides a shielded RJ45 female-to-female pass-through connection, supporting up to 10 Gigabit Ethernet for reliable data transmission in demanding environments.

Key specifications

• Data transmission standard: Cat.6A (Class EA)
• Ethernet speed support: Up to 10 Gigabit Ethernet (10GBASE-T)
• Connector type (front): RJ45 female
• Connector type (rear): RJ45 female (pass-through)
• Mounting type: Panel mount / flush mounting
• Mounting hole diameter: 22.5 mm
• Protection rating (front): IP65 (when mated with suitable plug)
• Protection rating (rear): IP20
• Shielding: Shielded
• Number of ports: 1
• Operating temperature: -25°C to +70°C
• Housing material: Plastic
• Colour: Black
• Standards: IEC 60603-7-51, ISO/IEC 11801, EN 50173-1

Why choose it

The M22-RJ45-CAT6A is part of the RMQ-Titan series, designed for seamless integration into industrial control panels and machinery. Its shielded construction ensures reliable data transmission even in electrically noisy environments, while the front IP65 rating protects against dust and water ingress when properly mated.

Ideal use cases

• Connecting Ethernet devices to control panels in factory automation
• Providing a robust data interface for machinery and equipment
• Upgrading existing RMQ-Titan installations to Cat.6A performance

Good to know

The jack mounts into a standard 22.5 mm hole, matching other RMQ-Titan components for a clean, integrated look. The rear IP20 rating is typical for panel-interior connections. Always use a suitable shielded plug to maintain the IP65 protection and signal integrity.
