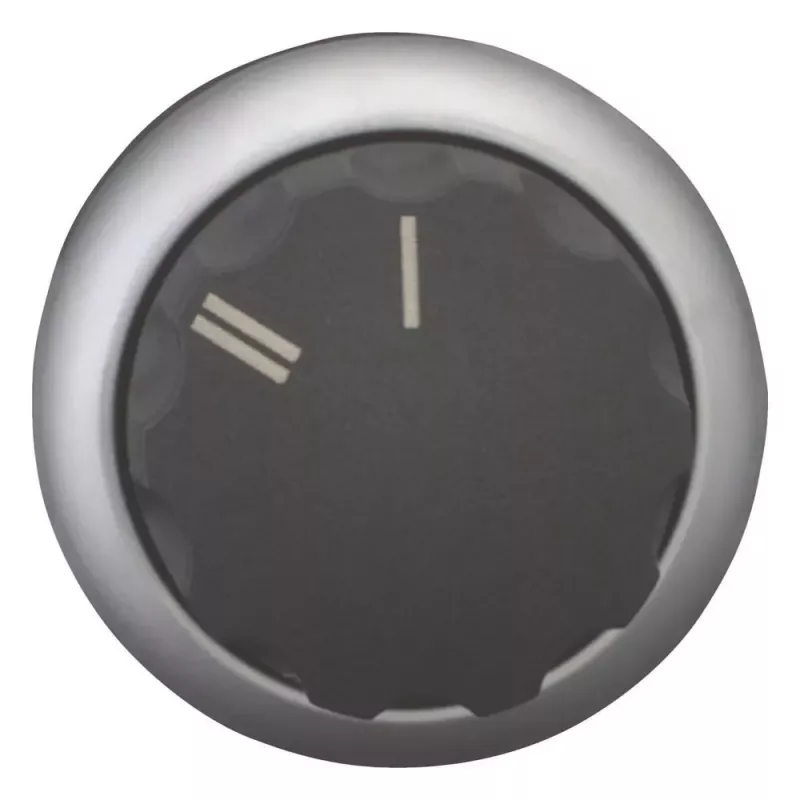

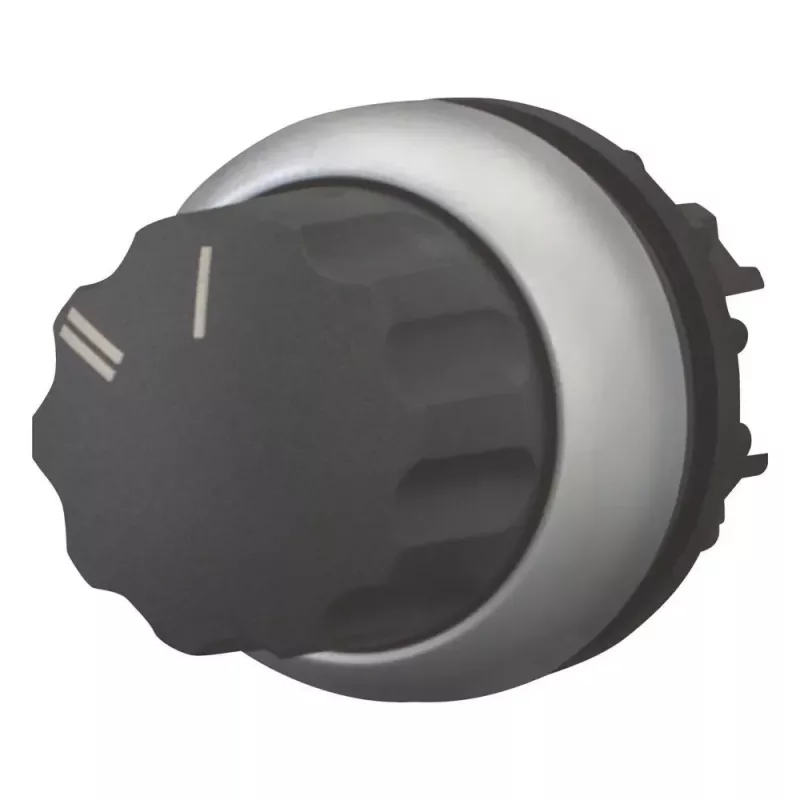

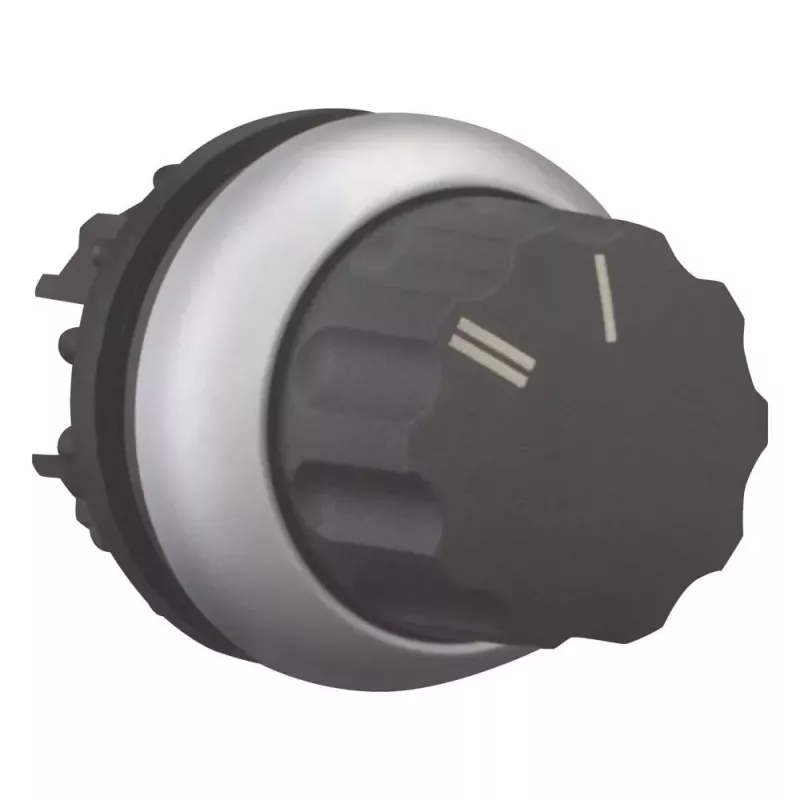

Eaton M22-WR-X92 selector, 2 posiciones, enclavado, botón giratorio, negro

The Eaton M22-WR-X92 is a robust selector switch from the M22 series, featuring a maintained (latching) operation with a black rotary knob. Its 22.5 mm mounting diameter and high mechanical life make it a dependable choice for industrial control panels.

Highlights

• 2-position maintained selector switch with 90° switching angle
• Front protection IP66, NEMA 4X, 13; rear IP20 with contact block
• Operating temperature range -25 to +70 °C
• Mechanical life over 1,000,000 operations
• Compatible with screw terminal contact blocks (sold separately)

In daily use

This non-illuminated selector switch is built for frequent manual operation. Its plastic front ring and rotary knob provide a firm grip, while the latching action ensures the selected position remains stable until intentionally changed.

Full specifications

• Product type: Selector Switch
• Series: M22
• Number of positions: 2
• Operation type: Maintained (Latching)
• Actuator type: Rotary Knob
• Actuator colour: Black
• Mounting diameter: 22.5 mm
• Front protection rating: IP66, NEMA 4X, 13
• Rear protection rating: IP20 (with contact block)
• Illumination: Non-illuminated
• Contact blocks: Not included
• Switching angle: 90°
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Material (front ring): Plastic
• Connection type: Screw terminals (for compatible contact blocks)
• Mechanical life: > 1,000,000 operations
• Degree of pollution: 3
• Rated impulse withstand voltage (Uimp): 6000 V

Final note

For complete functionality, order compatible M22 contact blocks separately.
