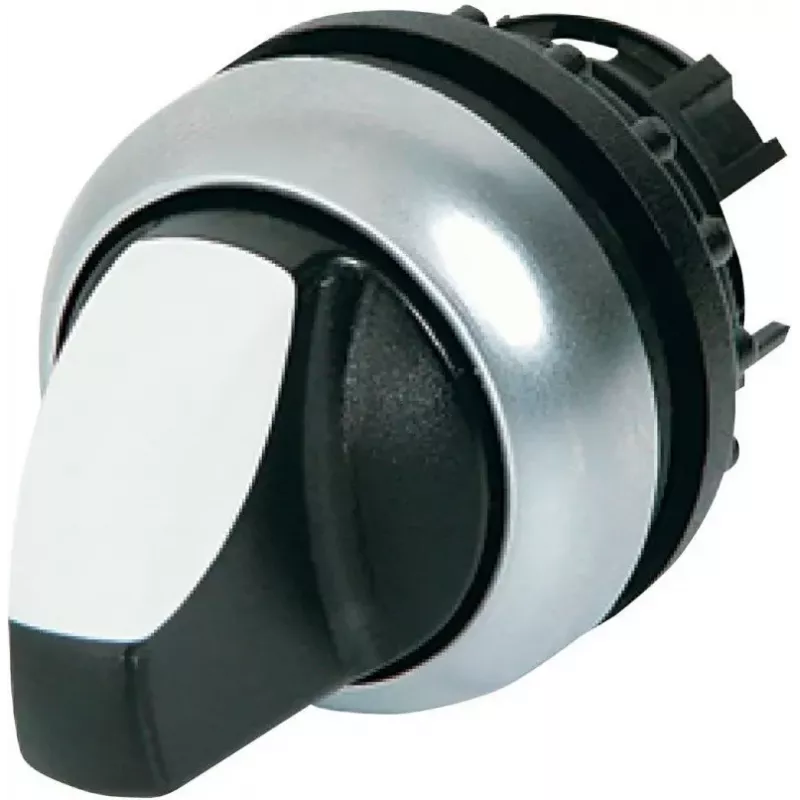

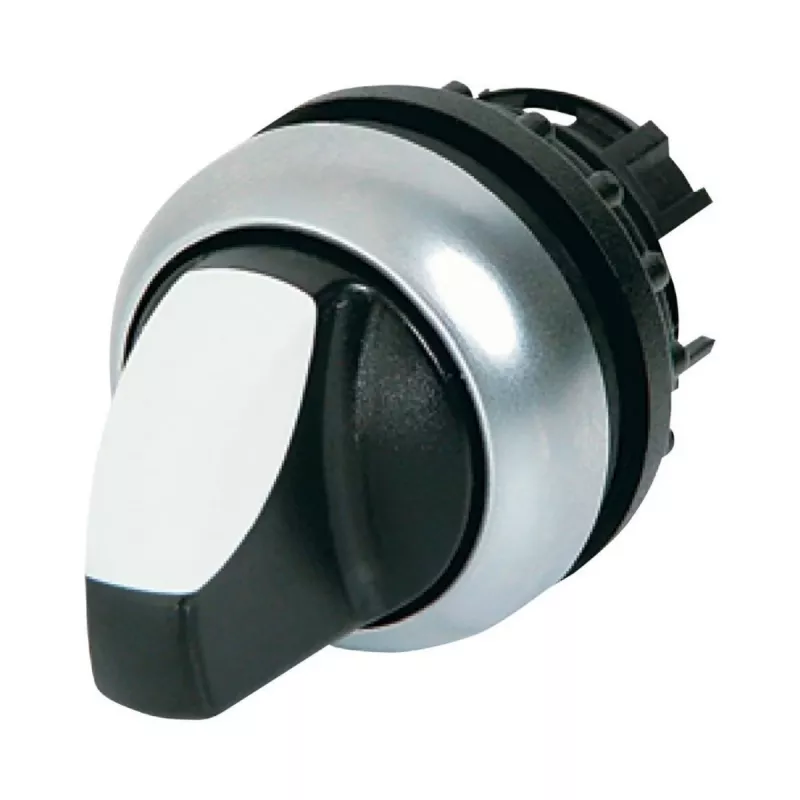

Eaton M22-WRLK3-W actuador de interruptor basculante de 3 posiciones, plástico, palanca blanca, embellecedor titanio 216843-BK

This Eaton M22 series toggle switch operator provides a 3-position maintained switching action for industrial control panels. The white lever and titanium bezel offer clear visual identification, while the plastic housing ensures durability in demanding environments.

Advantages

The operator is designed for front mounting with a 22.5 mm diameter and offers a high degree of protection against dust and water ingress. It is compatible with Eaton M22 contact blocks (sold separately) for flexible circuit configuration.

Suitable for

• Industrial control panels and machinery
• Applications requiring a 3-position maintained toggle switch
• Environments where IP66, IP67, and IP69K front protection is needed

Key specifications

• Series: M22
• Number of positions: 3
• Switching action: Maintained (latching)
• Actuator type: Lever
• Actuator colour: White
• Bezel colour: Titanium
• Housing material: Plastic
• Mounting diameter: 22.5 mm
• Degree of protection (front): IP66, IP67, IP69K
• Operating temperature range: -25 to +70 °C
• Mechanical life: > 1,000,000 operations
• Rated impulse withstand voltage: 6000 V
• Rated insulation voltage: 500 V
• Approvals: UL, CSA, CCC, CE

Recommendations

Pair with Eaton M22 contact blocks and mounting accessories for a complete control solution.
