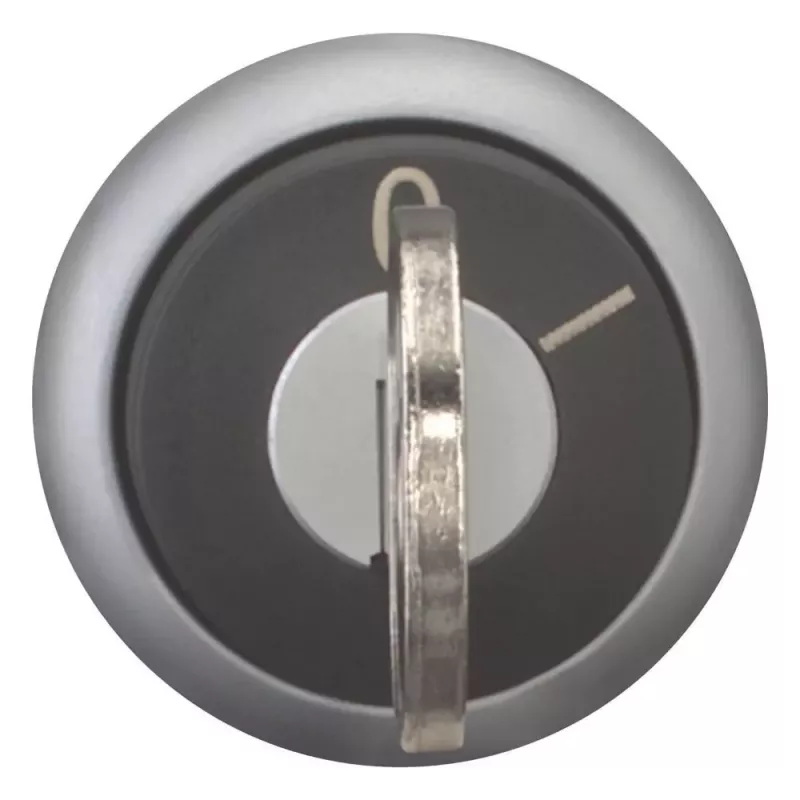

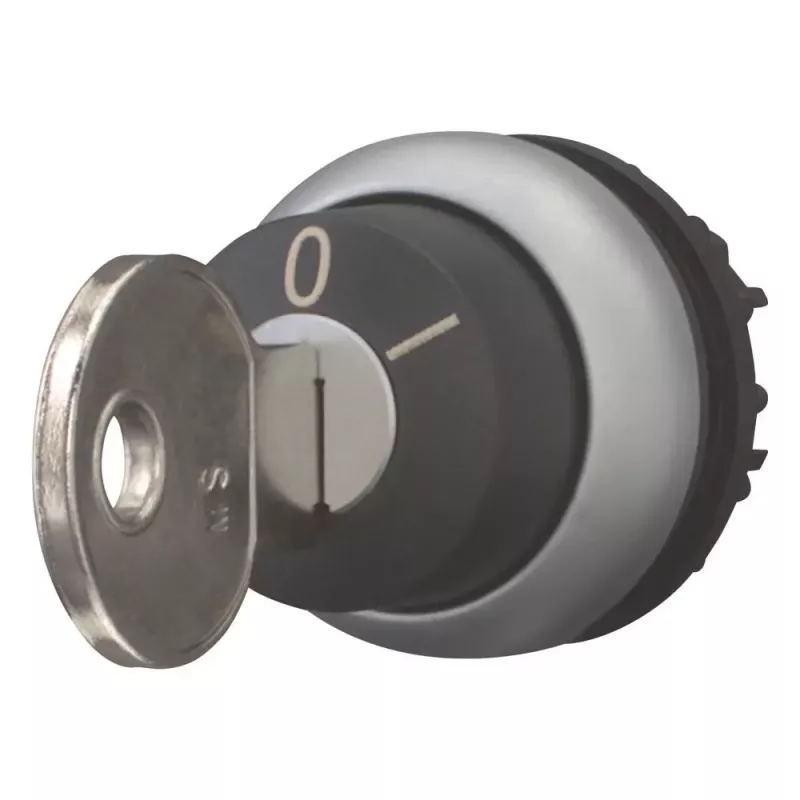

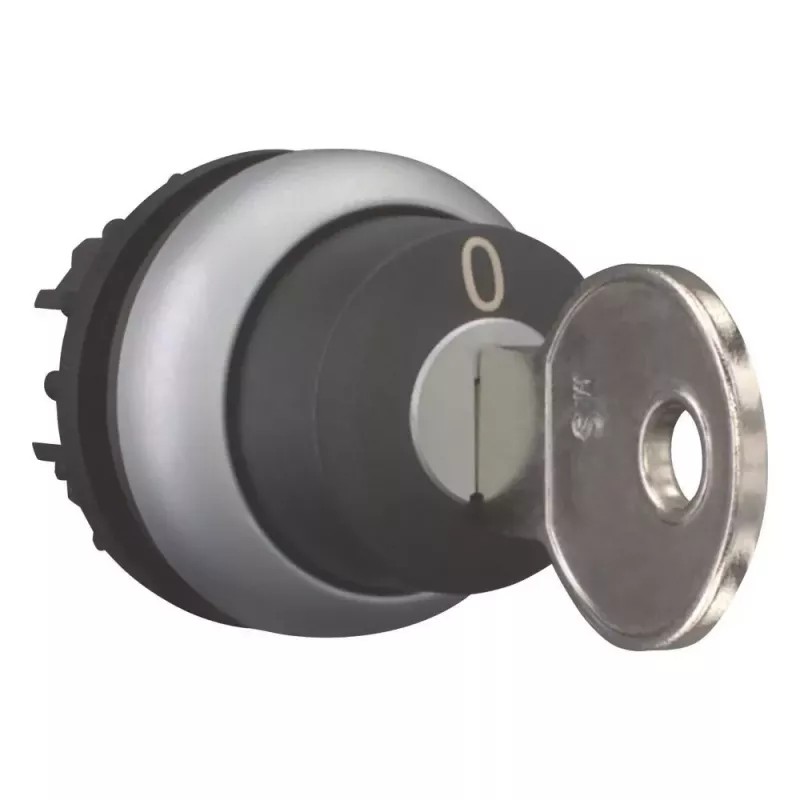

Eaton M22-WRS-MS10 selector con llave, 2 posiciones, negro/titán, 22,5 mm 111775

Control access to critical machine functions with the Eaton M22-WRS-MS10 key-operated selector switch. Its key removal in the left position prevents unauthorized switching, while the latching action maintains the selected state without continuous pressure. The black actuator and titanium front ring offer clear visual status in industrial panels.

Who is it for

Panel builders and maintenance technicians who need a tamper-resistant switching solution for control circuits in machinery, automation systems, and industrial equipment.

Main features

• Key-operated selector switch with 2 positions and 90° switching angle
• Key removable in position 0 (left) for security
• Latching function maintains position without continuous pressure
• Black actuator with titanium front ring for clear visibility
• 22.5 mm mounting diameter fits standard industrial panels
• Modular design requires M22 contact blocks (sold separately)
• Supplied with 2 keys

Specifications

• Product type: Key-operated selector switch
• Series: M22
• Number of positions: 2
• Switching angle: 90°
• Key removal position: Position 0 (left)
• Key code: MS10
• Actuator colour: Black
• Front ring material/colour: Titanium
• Mounting diameter: 22.5 mm
• Mechanical durability: > 0.5 x 10^6 operations
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Number of keys supplied: 2
• Function: Latching
• Compatibility: Requires M22 contact blocks (not included)

Tips

Select the appropriate M22 contact block based on your circuit requirements. For outdoor or washdown environments, pair with an IP66/IP67/IP69K rated front ring and appropriate enclosure.
