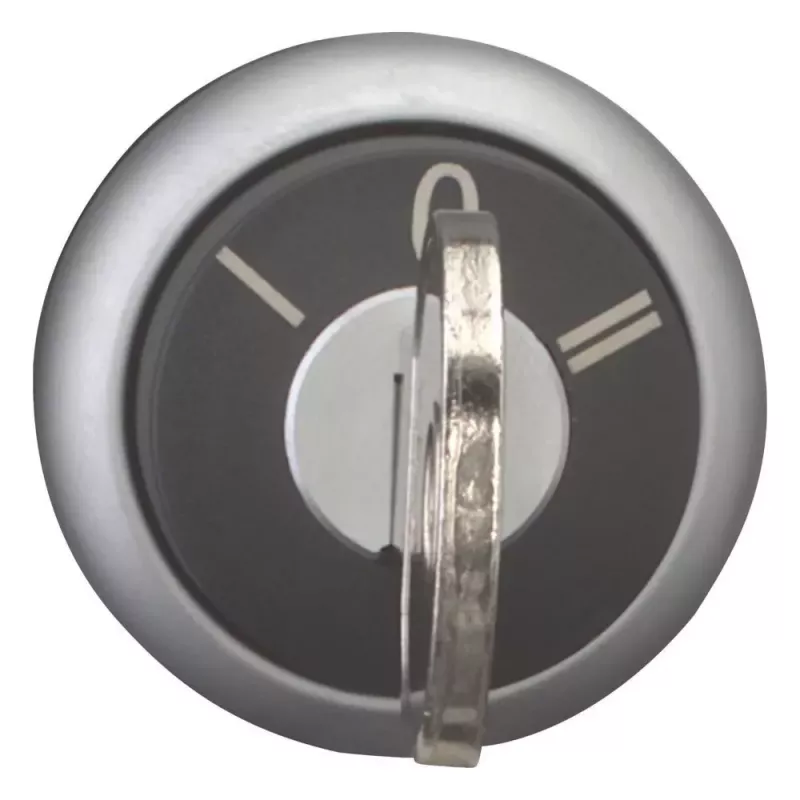

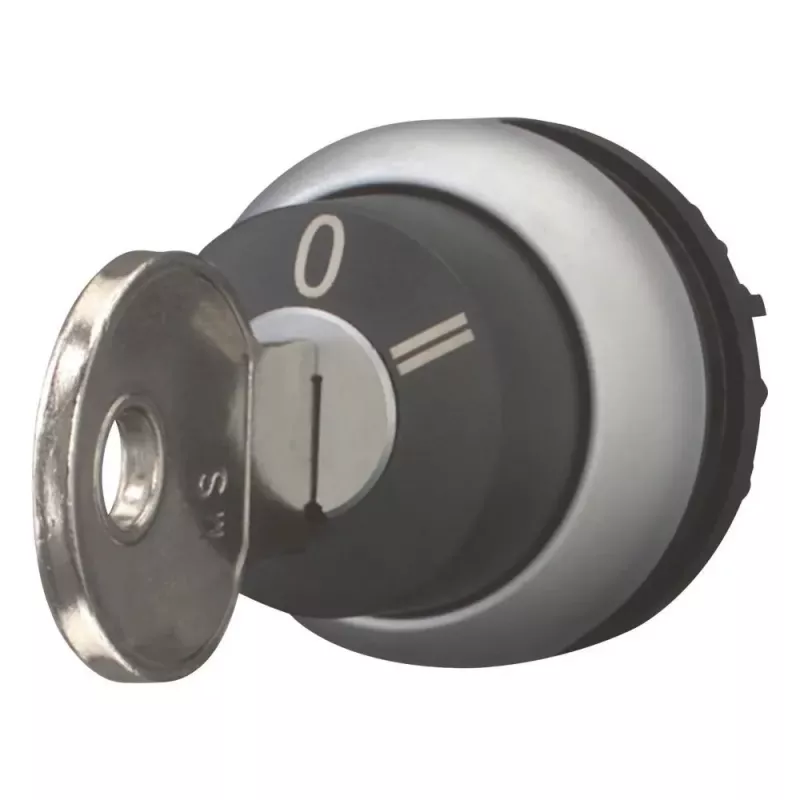

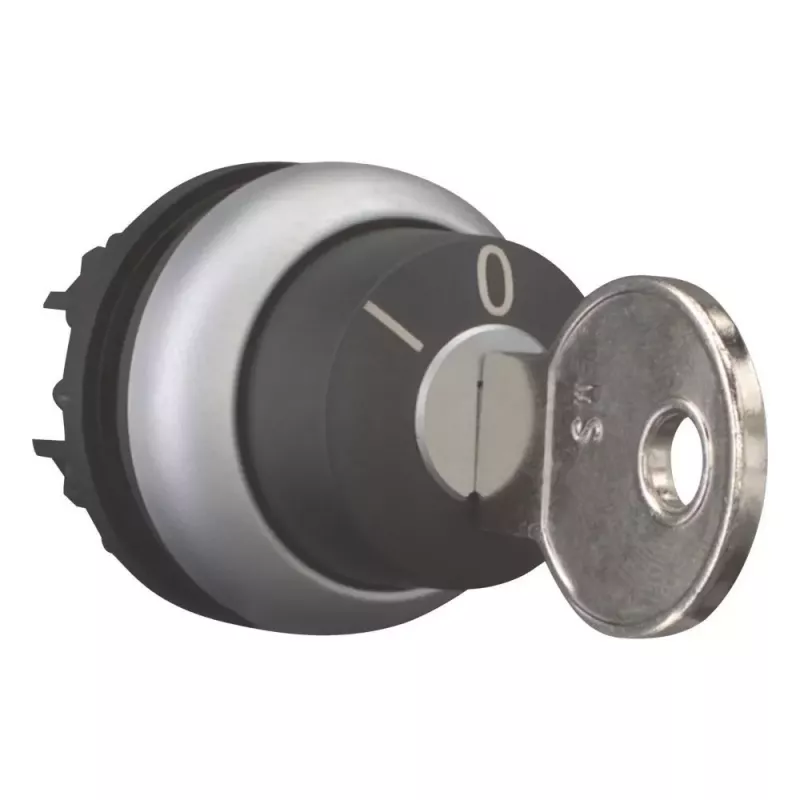

Eaton M22-WRS3-MS3 selector de llave, 3 posiciones, enclavado, 22,5 mm, negro/plata 111774

This Eaton key-operated selector switch stands out with its three maintained positions and key removal possible in all positions, giving you flexible control over machine states. The RMQ-Titan M22 series is known for its robust 22.5 mm mounting and high front protection, making it suitable for demanding industrial environments.

Highlights

• Three latching positions with 2 x 45° switching angle
• Key removable in all three positions for secure operation
• Front protection IP66, IP67, IP69K for harsh conditions
• Supplied with two metal keys
• Plastic bezel in black with silver key

In daily use

The switch is designed for front panel mounting with a 22.5 mm diameter cut-out. Its mechanical durability exceeds 0.5 million operations, ensuring long service life. The operating temperature range from -25 to +70 °C allows use in a wide variety of climates.

Full specifications

• Number of positions: 3
• Switching function: Maintained (latching)
• Key removal positions: All 3 positions
• Actuator type: Key-operated selector switch
• Series: RMQ-Titan, M22
• Mounting diameter: 22.5 mm
• Protection degree (front): IP66, IP67, IP69K
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Mechanical durability: > 0.5 x 10^6 operations
• Bezel material: Plastic
• Key material: Metal
• Number of keys supplied: 2
• Switching angle: 2 x 45°
• Standards: IEC/EN 60947, VDE 0660
• Colour: Black (bezel), Silver (key)
• Mounting type: Front panel mounting

Final note

This selector switch combines security and reliability, ideal for applications requiring controlled access and clear position indication.
