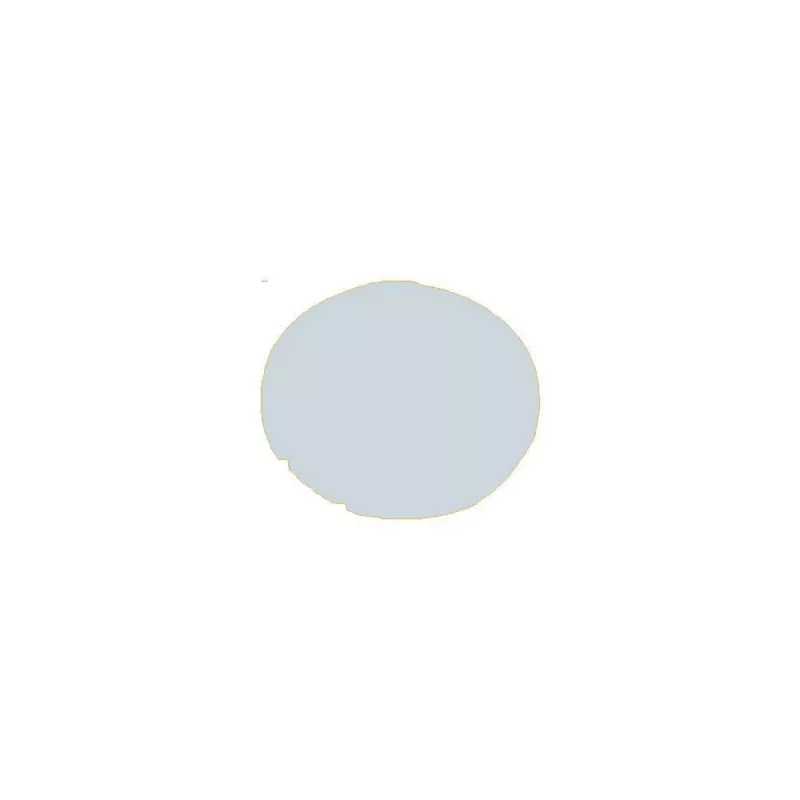

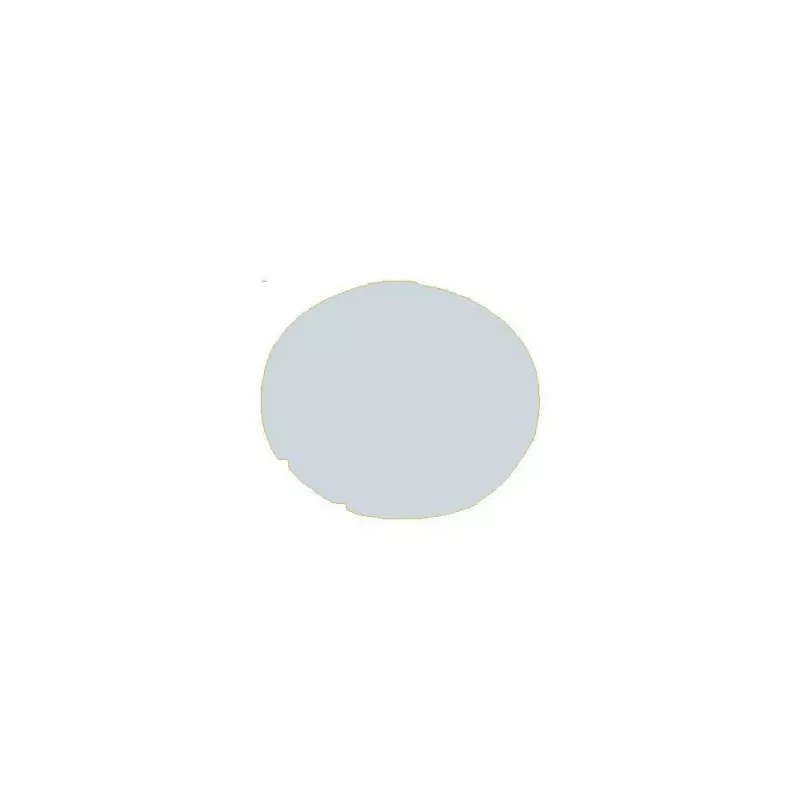

Eaton M22-XDL-W lente plana blanca para pulsador 216441

Industrial control panels often need clear, durable labeling for pushbuttons, but standard lenses can crack, fade, or fail under harsh conditions. The Eaton M22-XDL-W flat white pushbutton lens solves this by providing a blank, unlabeled surface that withstands demanding environments while allowing custom engraving or labeling to match your application.

Who is it for

This lens is for panel builders, machine OEMs, and maintenance technicians using Eaton RMQ-Titan M22 series pushbuttons and control units. It is suited for industrial automation, machine building, and control systems where reliable actuation and clear indication are required.

Main features

• Flat design with white colour for high visibility and custom labeling.
• Blank (unlabelled) surface ready for engraving, printing, or insert labels.
• Compatible with Eaton M22 series pushbuttons and control units (22.5 mm mounting diameter).
• High-grade plastic construction for durability.
• Front protection ratings: IP66, IP67, IP69K; NEMA 4X, 13.
• Wide operating temperature range: -25 to +70 °C.
• Compliant with IEC/EN 60947 and VDE 0660 standards.

Specifications

• Product type: Pushbutton lens
• Series: RMQ-Titan (M22)
• Colour: White
• Shape: Flat
• Labeling: Blank
• Mounting diameter: 22.5 mm
• Material: High-grade plastic
• Front protection: IP66, IP67, IP69K
• NEMA rating: NEMA 4X, 13
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Standards: IEC/EN 60947, VDE 0660
• RoHS compliant: Yes
• REACH compliant: Yes

Tips

For custom labeling, use engraving or adhesive labels designed for industrial environments to maintain legibility. Ensure the lens is securely snapped onto the M22 actuator to preserve the IP rating. When cleaning, use mild detergents and avoid abrasive materials that could scratch the surface.
