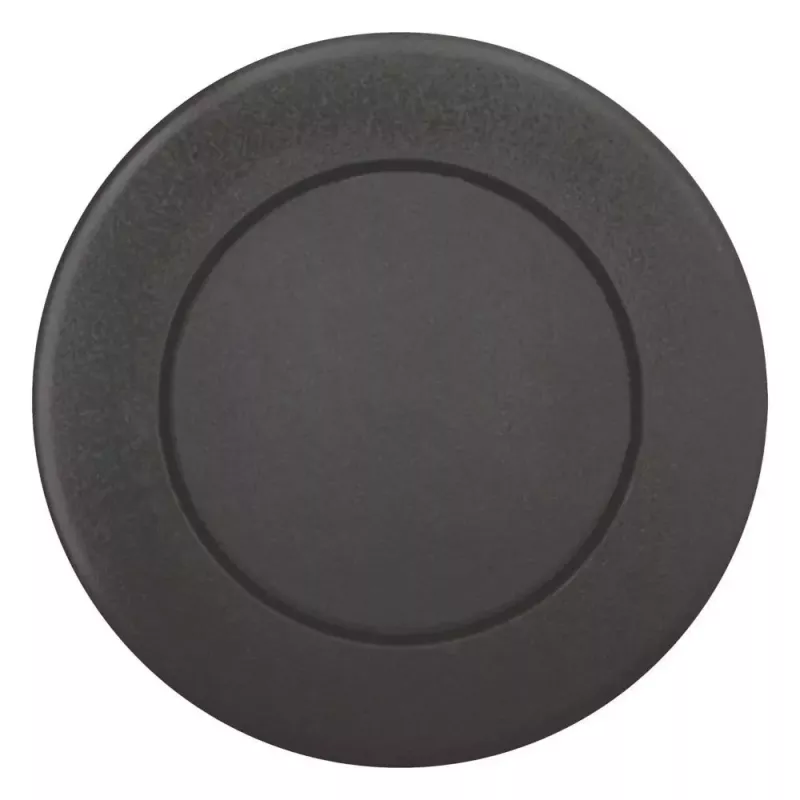

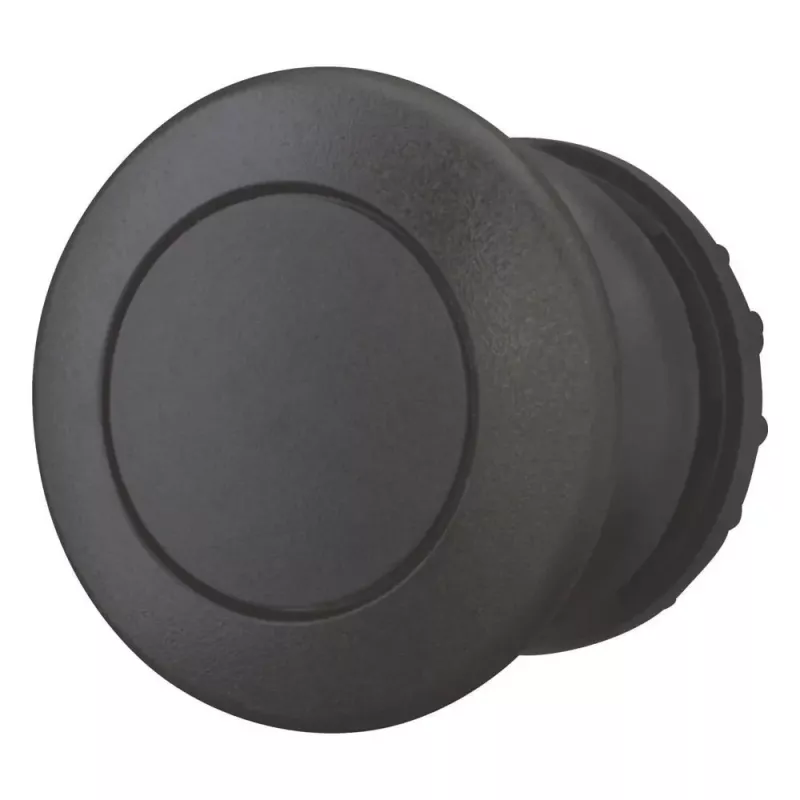

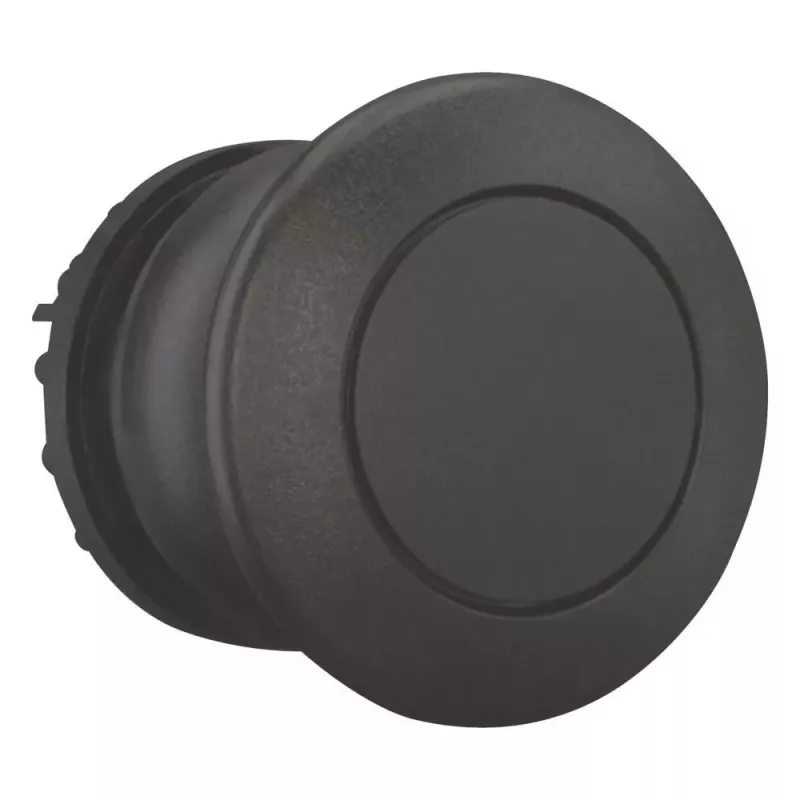

Eaton M22S-DP-S accionamiento de pulsador de seta negro 216713

In industrial control panels, a reliable emergency stop or start command requires an actuator that can withstand harsh environments and frequent operation. The Eaton M22S-DP-S mushroom pushbutton actuator provides a robust, momentary switching solution for 22.5 mm mounting holes, ensuring clear visual indication and dependable actuation.

Who is it for

Panel builders, machine OEMs, and maintenance technicians who need a durable, non-illuminated mushroom pushbutton for control circuits in industrial machinery, conveyor systems, and automation equipment.

Main features

• Mushroom head with 38 mm diameter for easy palm or finger operation
• Momentary (spring return) action for start, stop, or jog functions
• Black actuator colour for standard or customised control panel designs
• Front protection degree IP66, IP67, IP69K and NEMA 4X, 13 for demanding washdown environments
• Plastic front ring for corrosion resistance and lightweight installation
• Compatible with Eaton M22 series contact blocks and lamp holders

Specifications

• Actuator type: Mushroom pushbutton
• Operation type: Momentary (spring return)
• Actuator colour: Black
• Mounting diameter: 22.5 mm
• Head diameter: 38 mm
• Protection degree (front): IP66, IP67, IP69K
• NEMA rating: NEMA 4X, 13
• Series: M22
• Front ring material: Plastic
• Illumination: Non-illuminated
• Number of actuating positions: 1
• Ambient operating temperature: -25 to +70 °C
• Mechanical life: > 5 million operations

Tips

Pair with an Eaton M22 contact block (sold separately) to complete the switching function. For illuminated applications, choose a compatible lamp holder from the M22 series.
