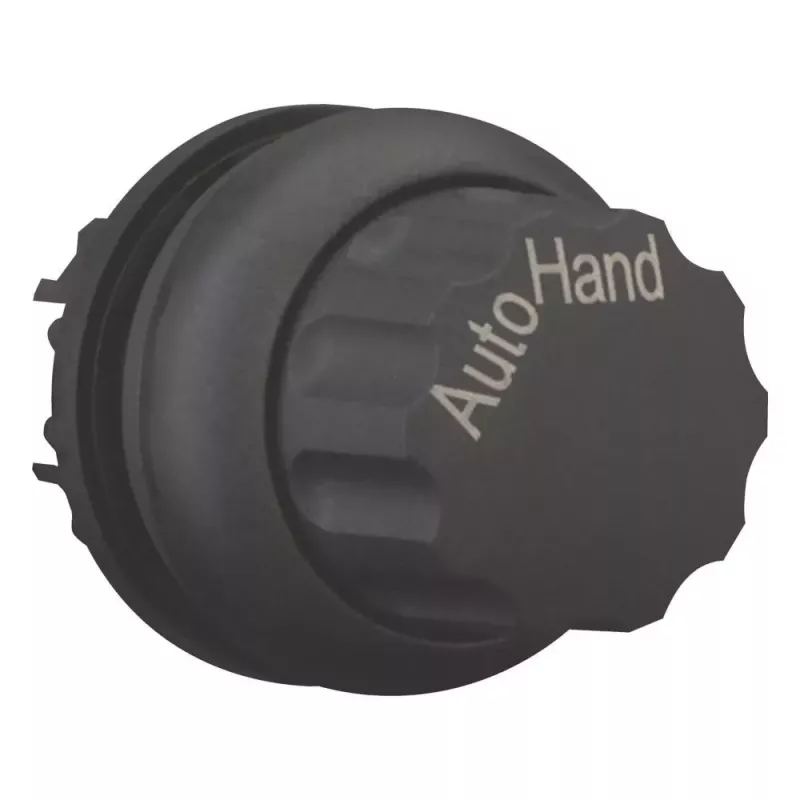

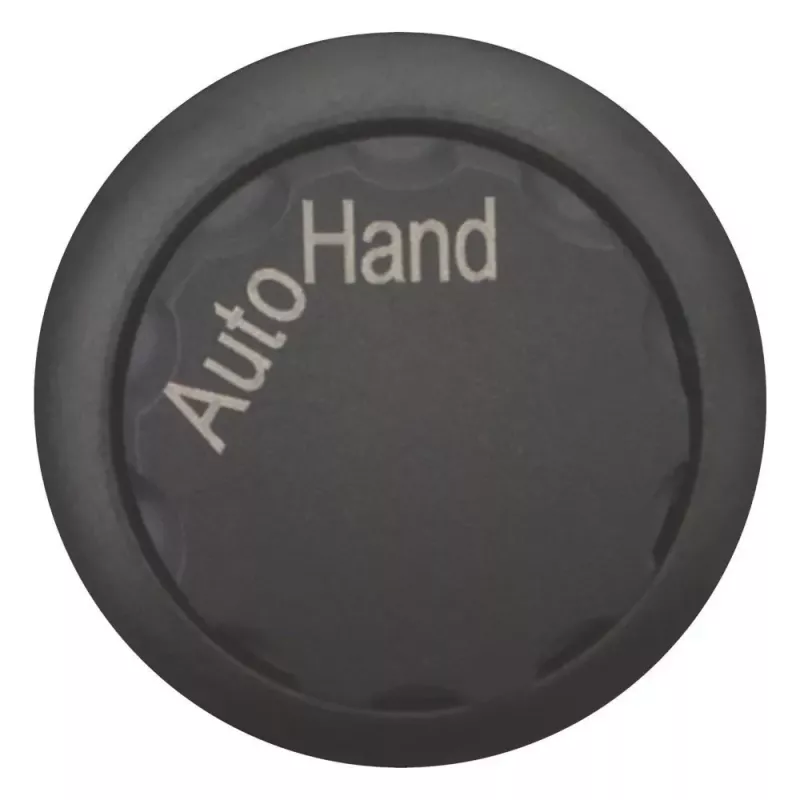

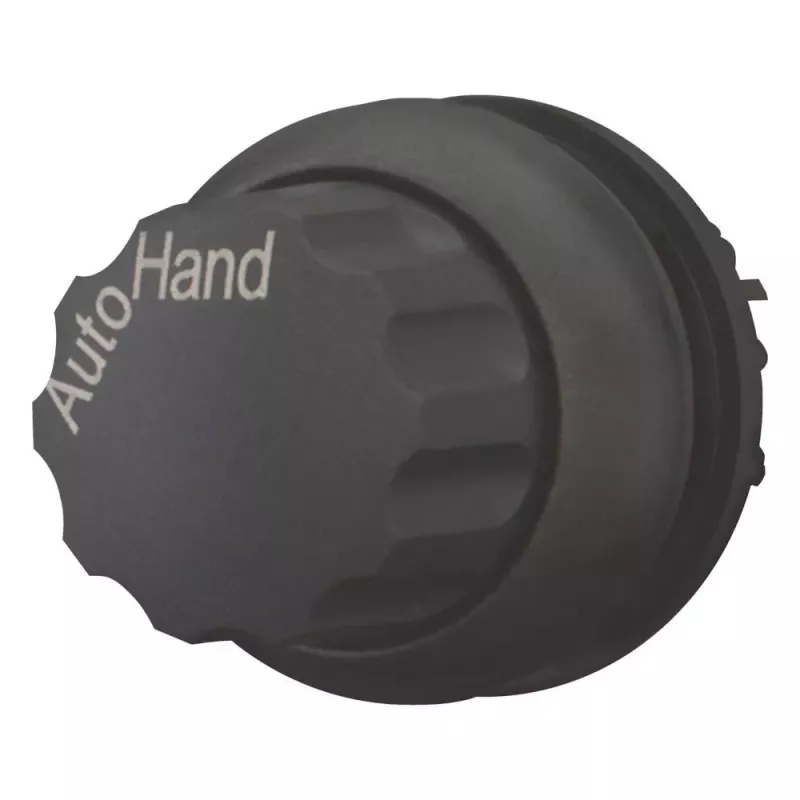

Eaton M22S-WR-X Accionamiento de selector, 2 posiciones, enclavado, botón giratorio negro 216860

Industrial control panels often need a reliable way to switch between two states manually, but standard switches may not withstand harsh environments or frequent use. The Eaton M22S-WR-X selector switch actuator solves this by providing a robust rotary knob with two maintained positions, designed for 22.5 mm mounting and compatible with Eaton M22 contact blocks.

Who is it for

This actuator is for panel builders, machine manufacturers, and maintenance technicians who require a durable, easy-to-operate selector switch for control circuits. It suits applications in industrial automation, HVAC, and machinery where a clear, two-position control is needed.

Main features

• Rotary knob actuator with 2 maintained positions (latching)
• 90° switching angle for clear position indication
• Black knob colour for standard industrial look
• Mounting diameter 22.5 mm, fits standard panel cutouts
• Non-illuminated design for simple, cost-effective use
• Front protection ratings: IP66, IP67, IP69K for dust and water resistance
• Operating temperature range: -25 to +70 °C
• Mechanical life: over 0.5 million operations

Specifications

• Product Type: Selector Switch Actuator
• Actuator Type: Rotary Knob
• Number of Positions: 2
• Switching Action: Maintained (Latching)
• Switching Angle: 90°
• Knob Color: Black
• Mounting Diameter: 22.5 mm
• Series: Eaton M22
• Illumination: Non-illuminated
• Front Protection Rating: IP66, IP67, IP69K
• Rear Protection Rating: IP20 (when mounted with contact block)
• Front Ring Material: Plastic
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -40 to +80 °C
• Mechanical Life: > 0.5 million operations
• Approvals: CE, UL, CSA, CCC, EAC, DNV GL
• Compatibility: Eaton M22 Contact Blocks

Tips

Pair this actuator with an Eaton M22 contact block (sold separately) to complete the switch assembly. Ensure the panel cutout is 22.5 mm and that the mounting ring is tightened to the recommended torque for proper sealing. For outdoor or washdown environments, verify that the contact block and other components also meet the required protection ratings.
