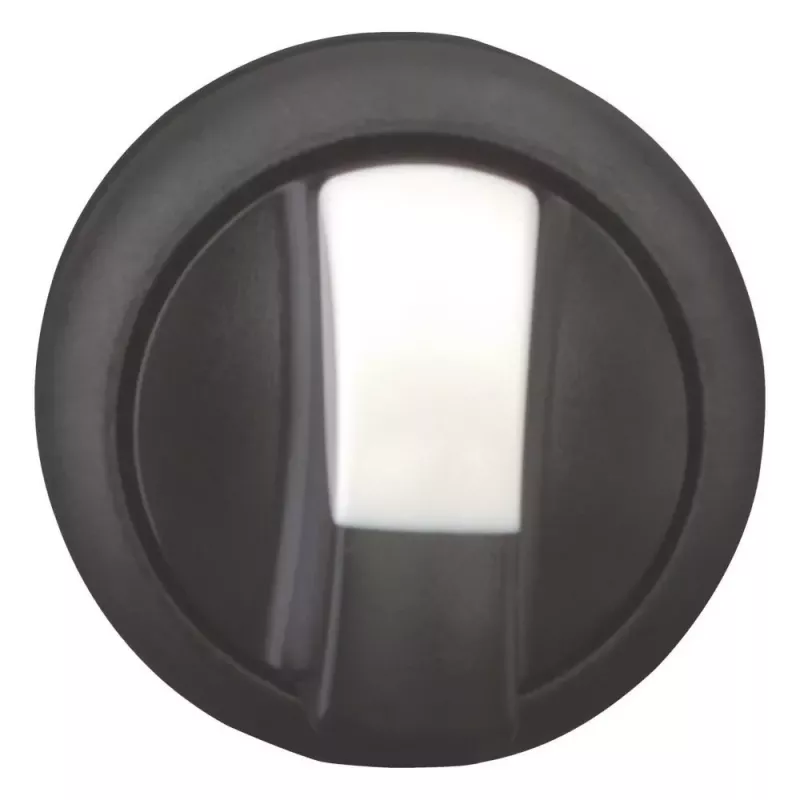

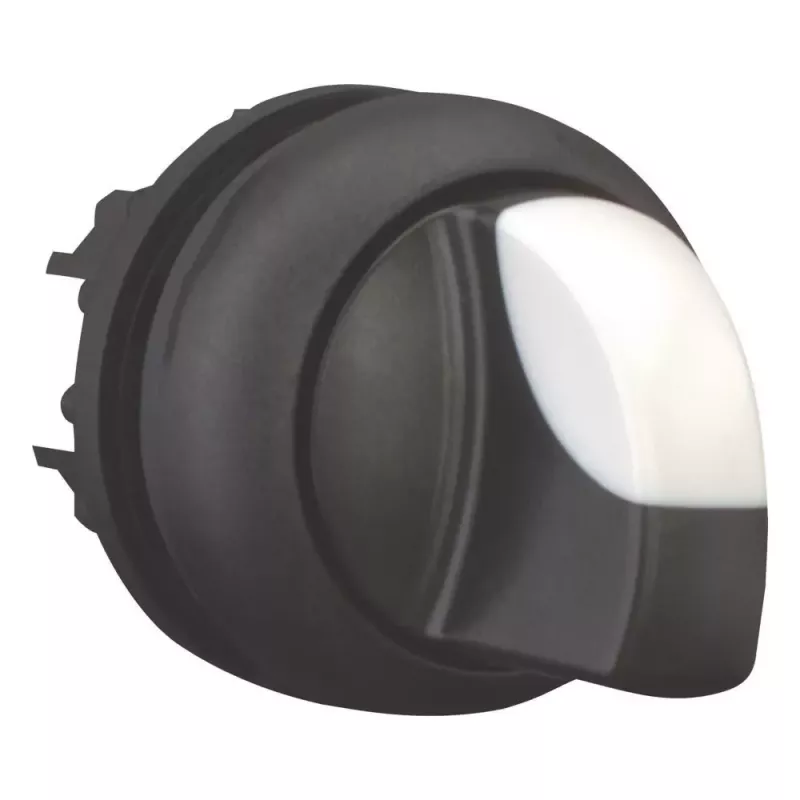

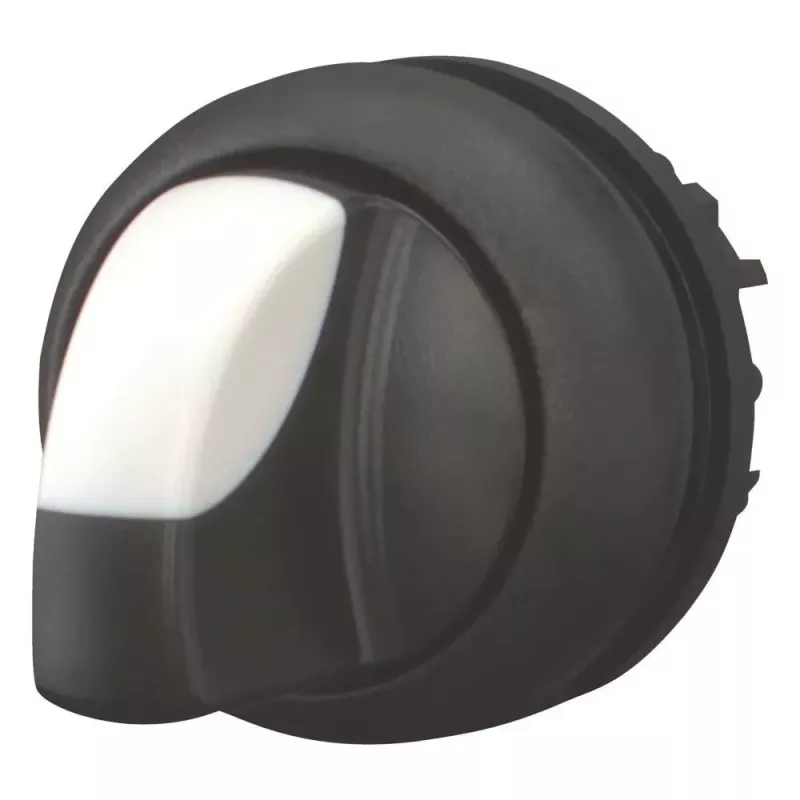

Eaton M22S-WRK accionamiento de selector, 2 posiciones, enclavamiento, negro 216869

The Eaton M22S-WRK selector switch actuator offers a 90° switching angle and a mechanical life exceeding 500,000 operations, making it a robust choice for industrial control panels. This 2-position maintained actuator fits a standard 22.5 mm mounting diameter and is part of the Eaton M22 series.

Overview

Designed for on/off or 2-state control, the M22S-WRK features a black actuator and a plastic front ring. It is non-illuminated and compatible with M22 series contact blocks and adapters. The front of the device provides IP66, IP67, and IP69K protection, as well as NEMA 4X and 13 ratings.

What stands out

• High mechanical endurance: > 0.5 x 10^6 operations
• Wide operating temperature range: -25°C to +70°C
• Front protection against dust, water, and high-pressure cleaning
• Compatible with the modular Eaton M22 system

Technical details

• Product type: Selector switch actuator
• Number of positions: 2
• Operation type: Maintained (latching)
• Actuator colour: Black
• Mounting diameter: 22.5 mm
• Switching angle: 90°
• Storage temperature: -40°C to +80°C
• Front ring material: Plastic
• Approvals: CE, UL, CSA, CCC, EAC, DNV GL

Our verdict

A reliable and durable selector switch actuator for demanding industrial environments, backed by Eaton's M22 series compatibility.
